Factory OEM ODM CORS station GPS/BDS/GLONASS/GALILEO high precision RTK CORS GNSS receiver

CORS GNSS receiver GPS RTK receiver

Item :Technical Specifications directions

GNSS :Full system full bands Core UM9804G

4G CAT1All Netcom Built-in Chinese ESIM card, 3GB per year

Wifi 2.4GHZ

Direct vision without obstruction is not less than 80 meters

BLE 5.2 Dual Mode Bluetooth

Bluetooth BLE+Bluetooth SPP

Leave a message

Contact

Product Description

CORS GNSS receiver GPS RTK receiver

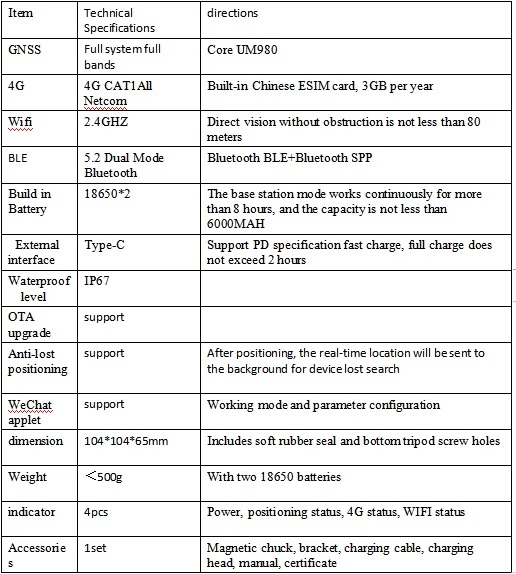

Item :Technical Specifications directions

GNSS :Full system full bands Core UM9804G

4G CAT1All Netcom Built-in Chinese ESIM card, 3GB per year

Wifi 2.4GHZ

Direct vision without obstruction is not less than 80 meters

BLE 5.2 Dual Mode Bluetooth

Bluetooth BLE+Bluetooth SPP

Build in Battery

18650*2

The base station mode works continuously for more than 8 hours, and the capacity is not less than 6000MAH

External interface Type-C

Support PD specification fast charge, full charge does not exceed 2 hours

Waterproof level IP67

OTA upgrade

support

Anti-lost positioning

support After positioning, the real-time location will be sent to the background for device lost search

WeChat applet support Working mode and parameter configuration

dimension 104*104*65mm Includes soft rubber seal and bottom tripod screw holes

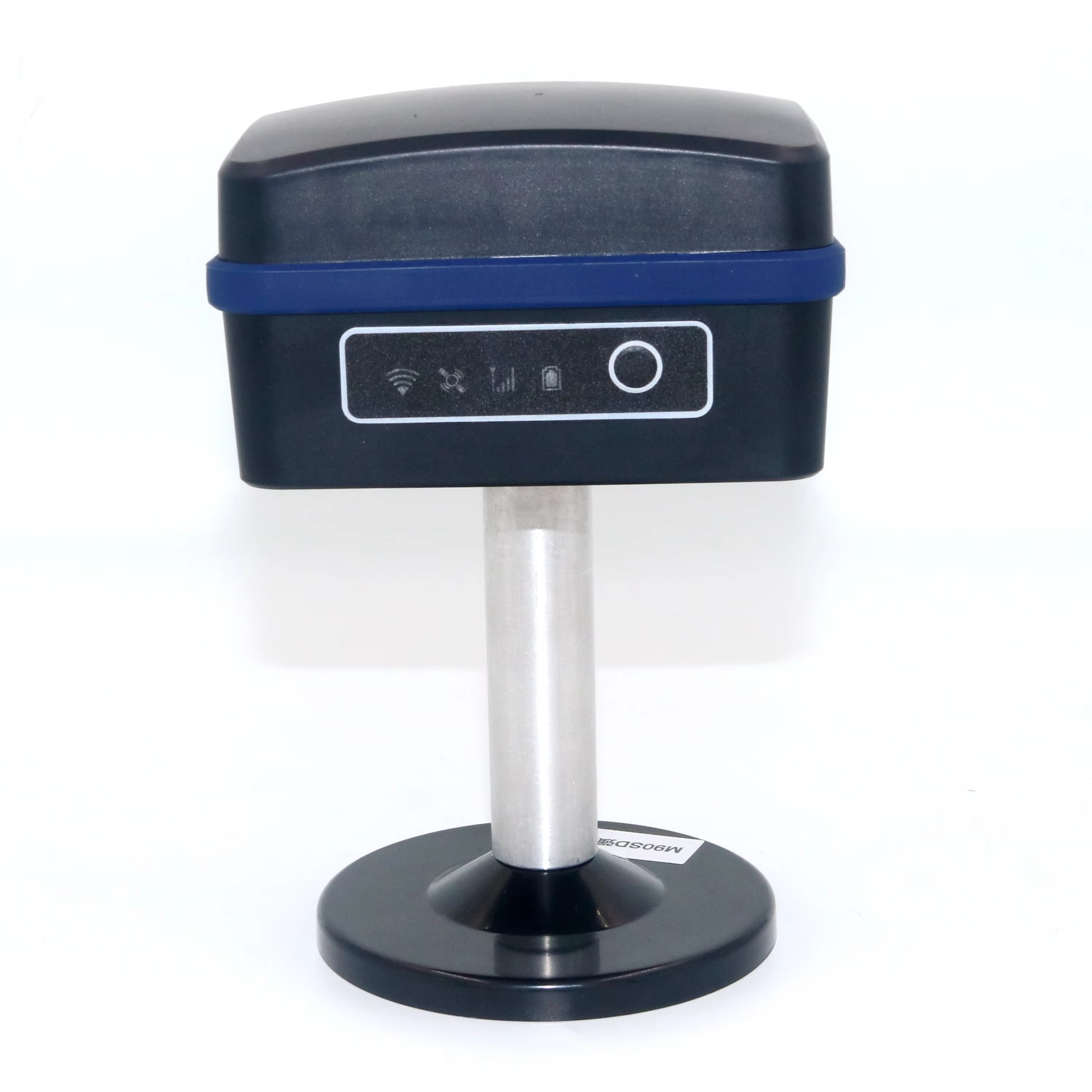

Weight indicator 4pcs Power, positioning status, 4G status, WIFI status

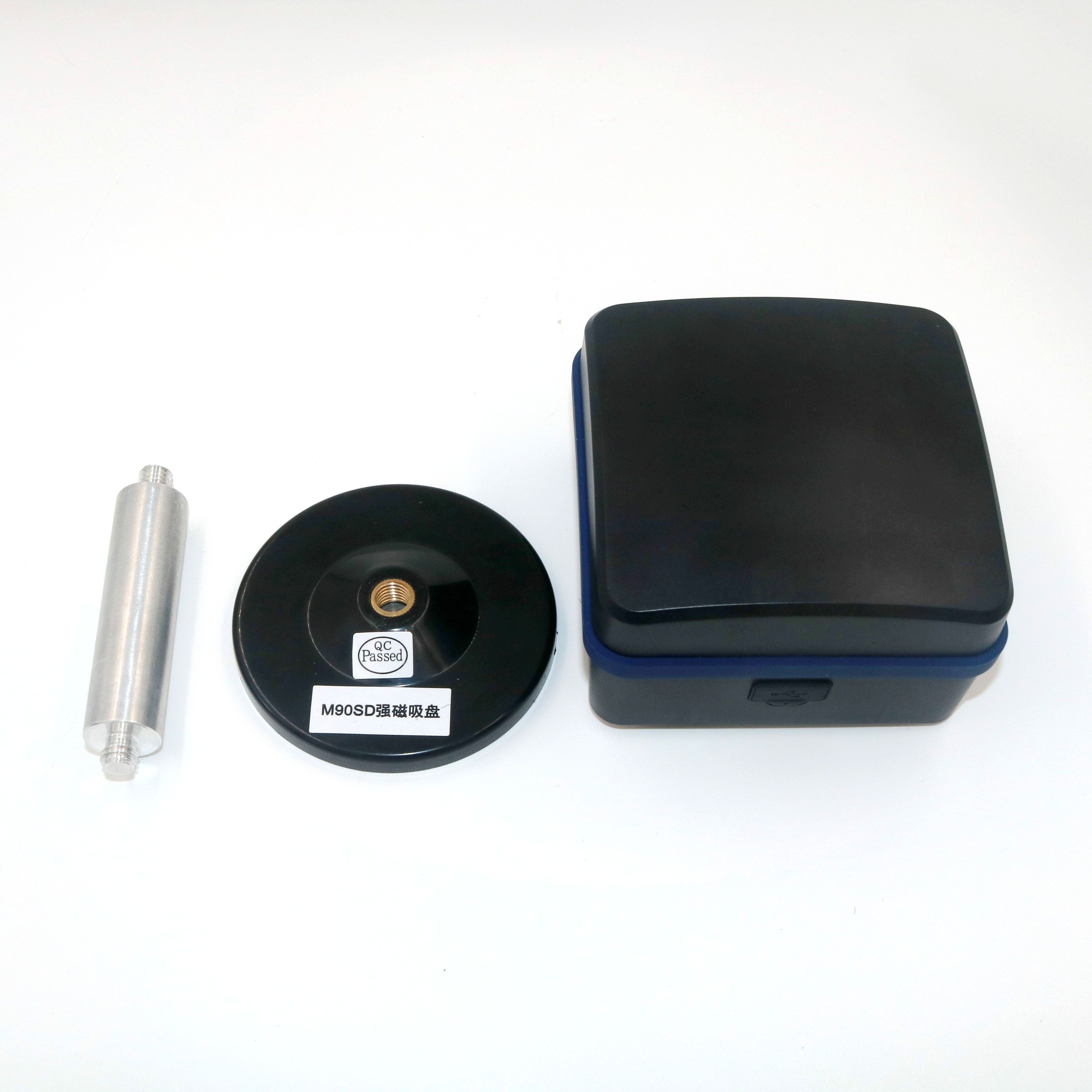

Accessories 1set Magnetic chuck, bracket, charging cable, charging head, manual, certificate
