Overview

The TOXU TX-CN-FAKRA-004 is a FAKRA straight plug PCB connector with housing designed for automotive RF connection systems.

The connector integrates FAKRA interface technology, SMD Pin-in-Paste mounting structure and single housing design, providing a compact RF connection solution for automotive electronic modules.

It is suitable for PCB-level RF signal connection applications including vehicle communication systems, infotainment equipment and automotive electronic control systems.

Key Features

FAKRA RF Connector Interface

Designed for automotive RF systems using standardized FAKRA connector technology.

SMD Pin-in-Paste Mounting

Supports surface mount PCB assembly processes for efficient electronic manufacturing.

Straight Plug Configuration

Provides straight connector orientation for convenient PCB integration.

Automotive Coding System

Supports FAKRA coding identification with different color configurations.

Single Housing Structure

Provides mechanical protection and stable connector positioning.

Technical Specifications

Dimension Drawing

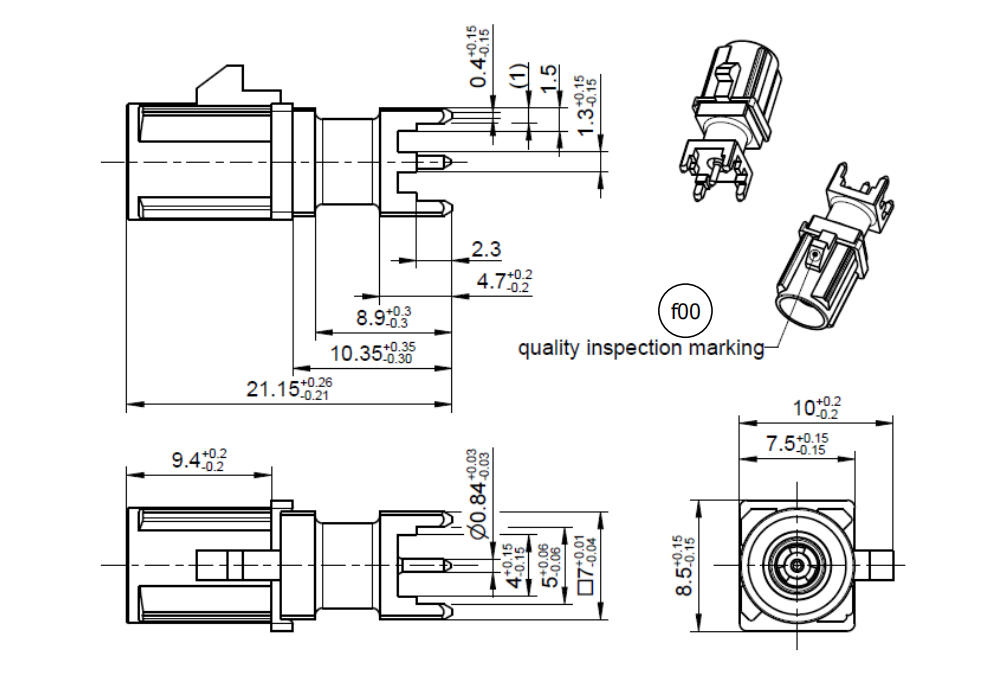

The product dimension drawing is available in the technical datasheet, including connector outline and PCB mounting information.

Applications

The TX-CN-FAKRA-004 FAKRA PCB connector is suitable for:

• Automotive RF modules

• Vehicle communication systems

• Navigation and infotainment systems

• Telematics equipment

• Automotive electronic control units

System Integration

The FAKRA SMD PCB connector is integrated into automotive electronic systems:

RF Antenna / Communication Module

↓

FAKRA PCB Connector

↓

PCB Circuit System

↓

Vehicle Electronic System

TOXU supports connector selection, RF cable matching and customized RF hardware integration for automotive projects.

Complete RF Hardware Solution Support

RF Connector Solutions

TOXU provides RF connector solutions including FAKRA, HFM, H-MTD, SMA, MMCX, MCX and customized connectors.

RF Cable Assembly

TOXU provides customized RF cable assemblies with connector matching, cable selection and production support.

Antenna Integration

TOXU supports RF integration between antennas, cables and connector systems.

Hardware Customization

TOXU supports prototype development, engineering validation and mass production for customized RF hardware projects.

Why Choose TOXU

TOXU provides integrated RF hardware solutions covering connectors, RF cable assemblies, antennas and customized hardware development.

With RF engineering capability and manufacturing support, TOXU helps customers complete projects from prototype validation to mass production.
