Overview

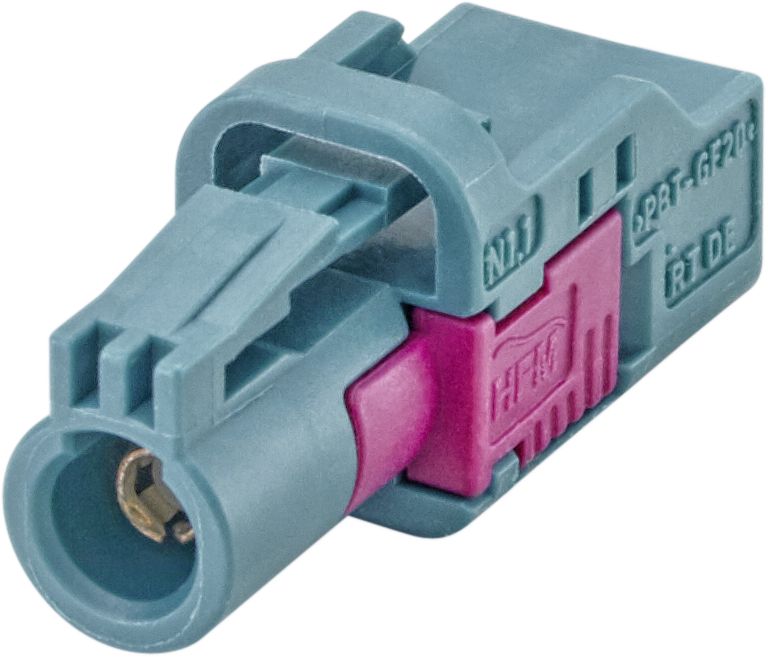

The TOXU TX-CN-FAKRA-002 is a FAKRA plastic housing plug designed for automotive RF connector systems. It is used as a housing component for FAKRA plug assemblies, providing mechanical protection and reliable connector integration.

The housing adopts a single structure design and supports coding identification for different connector configurations. It is suitable for automotive RF cable assembly applications where stable mechanical connection and organized wiring solutions are required.

Based on the FAKRA interface standard, the TX-CN-FAKRA-002 is designed for vehicle communication systems, telematics equipment and automotive electronic applications.

Key Features

FAKRA Connector Housing

Designed for FAKRA plug connector systems used in automotive RF connection applications.

Single Housing Design

Provides mechanical protection and supports compact connector assembly integration.

Coding Identification

Supports different coding colors for connector identification and system organization.

Locking Structure Support

Includes latch, primary lock and secondary lock structures to improve connector retention.

Automotive Environment Compatibility

Designed for automotive environments with a temperature range from -40°C to +105°C.

Technical Specifications

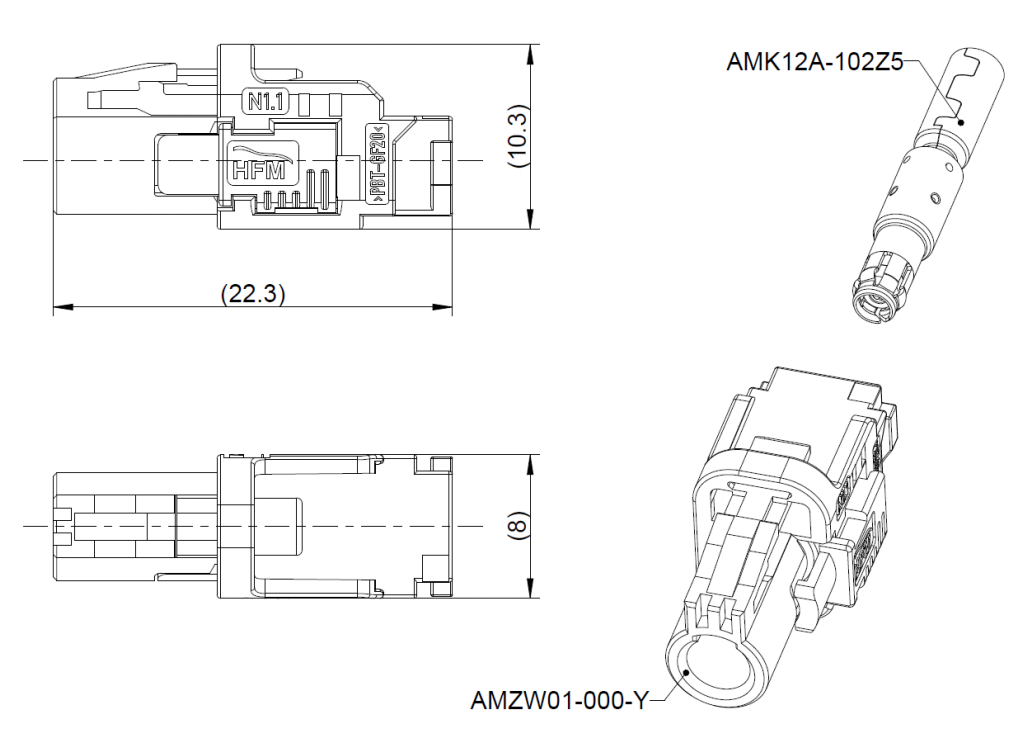

Dimension Drawing

The product dimension drawing is available in the technical datasheet, showing the mechanical outline and housing dimensions.

Applications

The TX-CN-FAKRA-002 FAKRA plastic housing plug is suitable for:

• Automotive RF cable assemblies

• Vehicle communication systems

• Telematics equipment

• Navigation and infotainment systems

• Automotive electronic modules

System Integration

The FAKRA plastic housing plug is integrated into automotive RF connection systems as part of a complete cable assembly structure:

RF Module

↓

RF Cable Assembly

↓

FAKRA Connector Housing

↓

Vehicle Electronic System

TOXU supports connector matching, RF cable assembly development and customized RF hardware integration for different application requirements.

Complete RF Hardware Solution Support

RF Connector Solutions

TOXU provides RF connector solutions including FAKRA, SMA, MMCX, MCX and customized connectors for different applications.

RF Cable Assembly

TOXU provides customized RF cable assemblies with matched connectors, cable selection and assembly support.

Antenna Integration

TOXU supports RF interface integration between connectors, cables and antenna systems.

Hardware Customization

TOXU supports prototype development, engineering validation and mass production for customized RF hardware projects.
