Overview

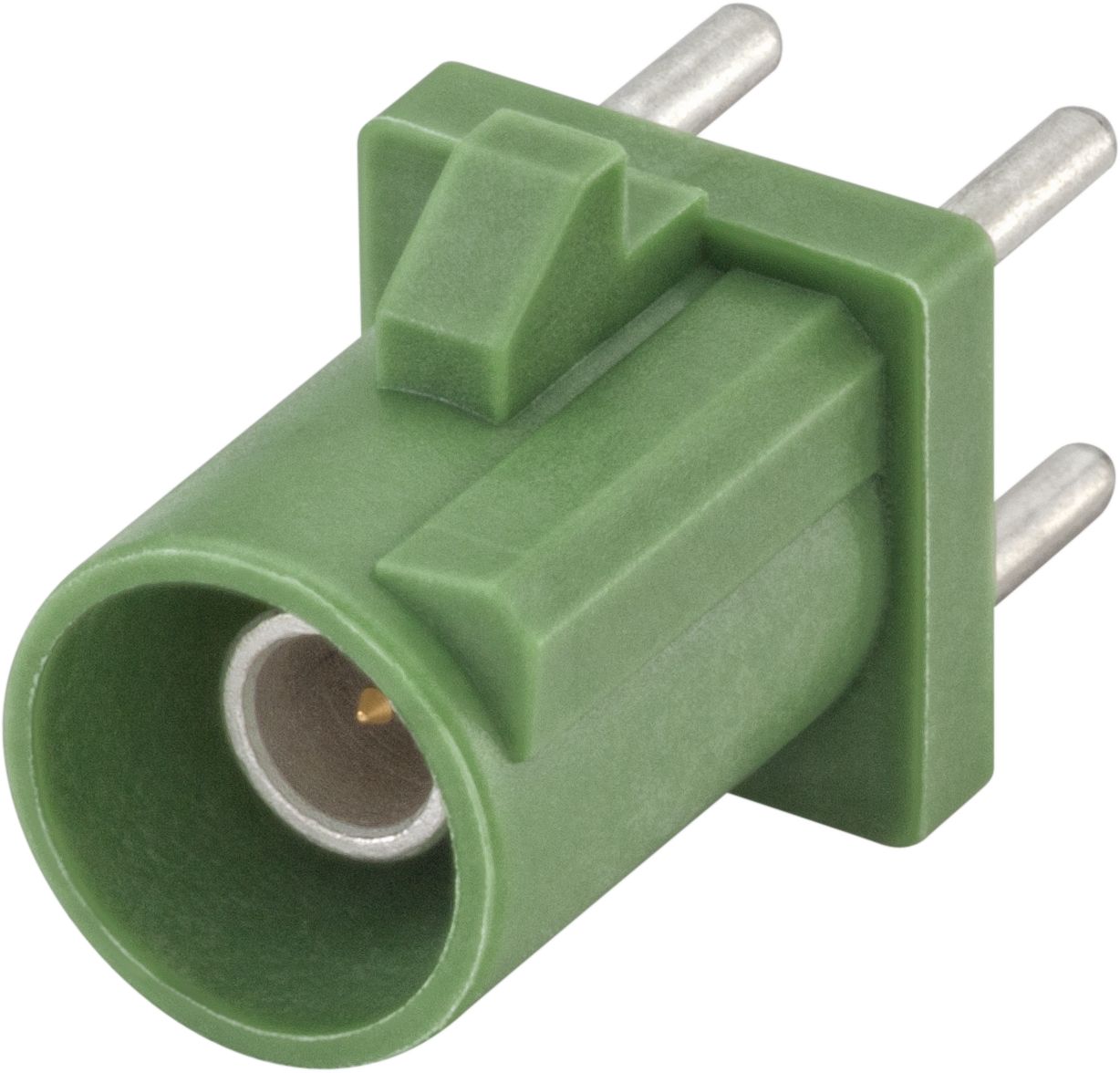

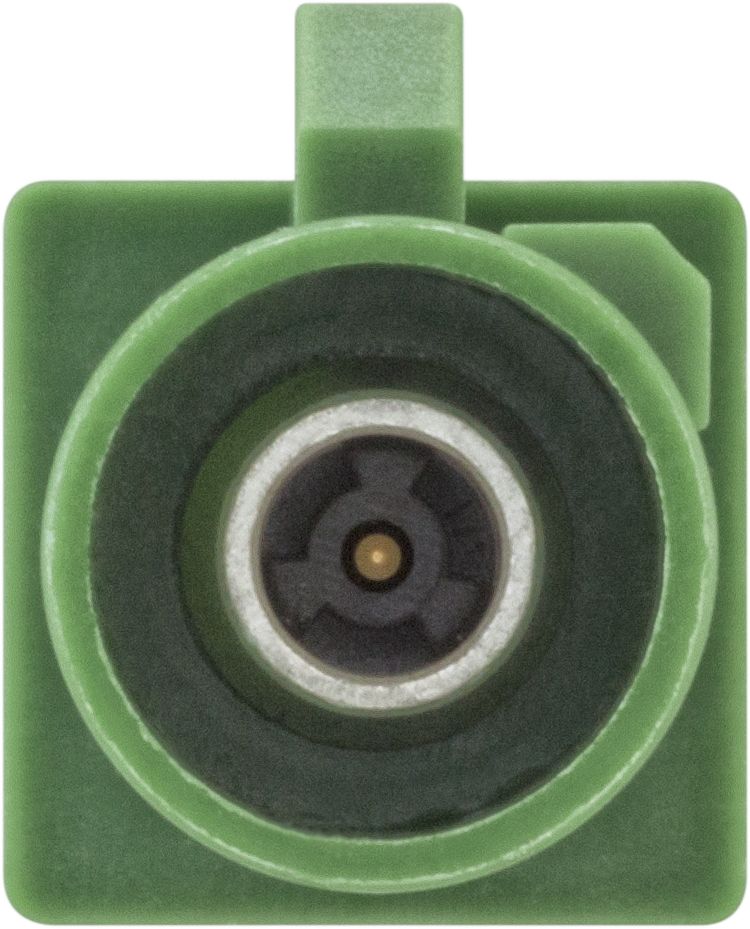

The TOXU TX-CN-FAKRA-003 is a FAKRA straight plug PCB connector with housing designed for automotive RF connection systems.

The connector integrates a FAKRA interface, PCB solder pin structure and single housing design, providing a compact RF connection solution for vehicle electronic systems.

With standardized FAKRA coding and automotive connector design, the product supports reliable integration into RF modules, communication equipment and automotive electronic applications.

Key Features

FAKRA Connector Interface

Designed for automotive RF systems using FAKRA connector technology.

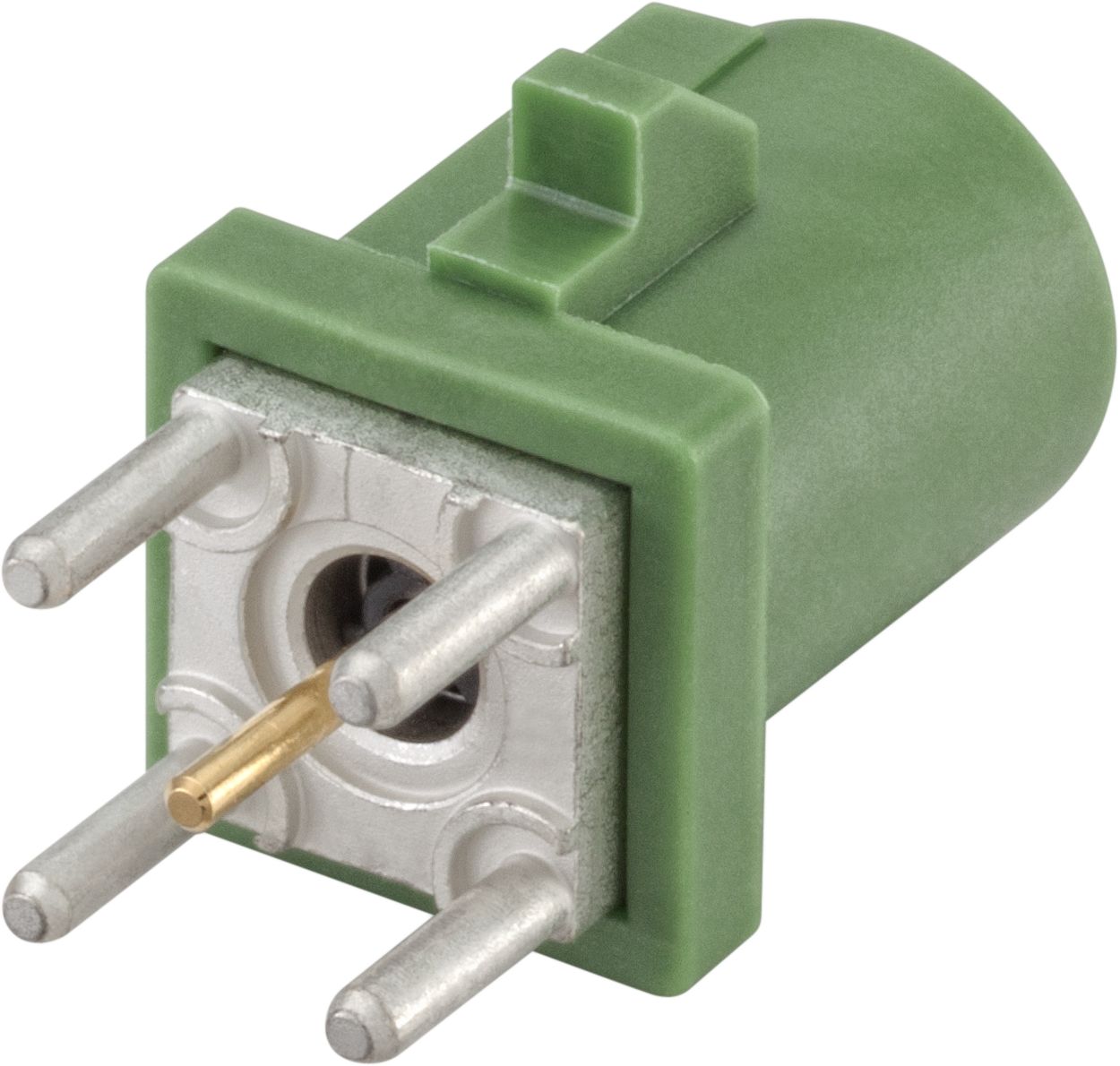

PCB Solder Pin Structure

Supports direct PCB mounting through PC-board solder pins for electronic module integration.

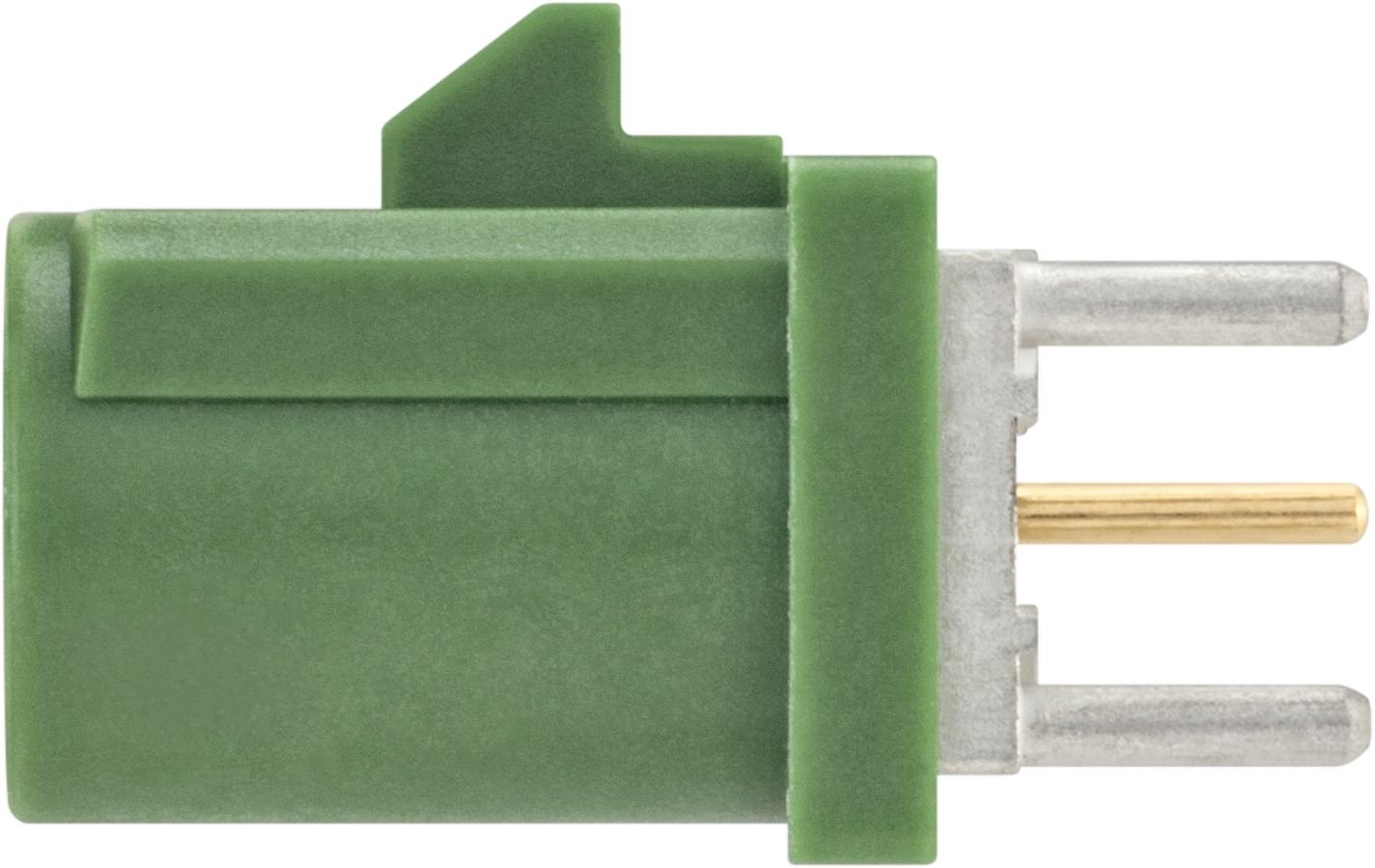

Straight Plug Configuration

Straight plug design provides convenient installation and compact system integration.

Automotive Coding Design

Supports FAKRA coding identification for different automotive connection requirements.

Single Housing Structure

Provides mechanical protection and stable connector assembly.

Technical Specifications

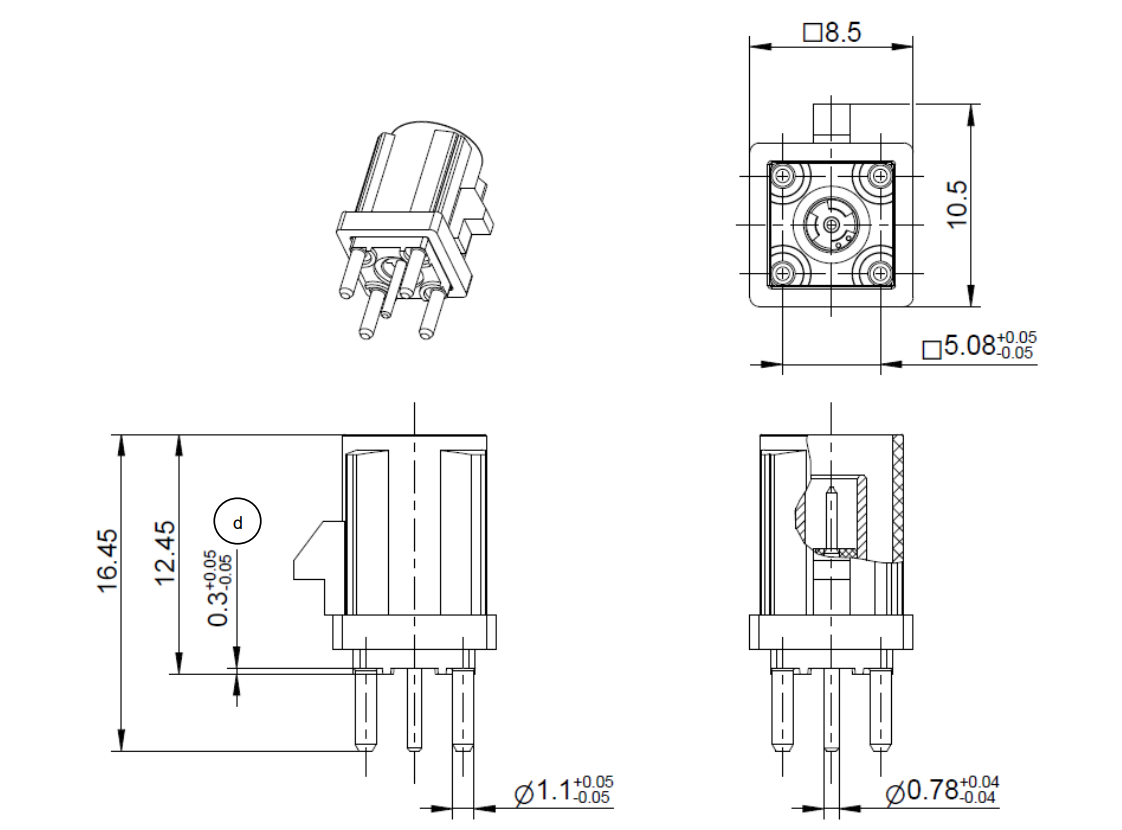

Dimension Drawing

The product dimension drawing is available in the technical datasheet, including the connector outline and PCB mounting information.

Applications

The TX-CN-FAKRA-003 FAKRA PCB connector is suitable for:

• Automotive RF modules

• Vehicle communication systems

• Telematics equipment

• Navigation and infotainment systems

• Automotive electronic control units

System Integration

The FAKRA PCB connector is integrated into automotive electronic systems:

RF Antenna / Communication Module

↓

FAKRA PCB Connector

↓

PCB Circuit System

↓

Vehicle Electronic System

TOXU supports connector selection, RF cable assembly matching and customized RF hardware integration.

Complete RF Hardware Solution Support

RF Connector Solutions

TOXU provides RF connector solutions including FAKRA, HFM, H-MTD, SMA, MMCX, MCX and customized connectors.

RF Cable Assembly

TOXU provides customized RF cable assemblies with connector matching, cable selection and production support.

Antenna Integration

TOXU supports RF integration between antennas, cables and connector systems.

Hardware Customization

TOXU supports prototype development, engineering validation and mass production for customized RF hardware projects.

Why Choose TOXU

TOXU provides integrated RF hardware solutions covering connectors, RF cable assemblies, antennas and customized hardware development.

With RF engineering capability and manufacturing support, TOXU helps customers from prototype development to mass production.

FAQ

Q1: Can TOXU provide complete RF connection solutions?

Yes. TOXU supports RF connectors, cable assemblies, antenna integration and customized RF hardware solutions.

Q2: Can TOXU customize RF cable assemblies?

Yes. TOXU supports connector matching, cable selection and customized RF cable assembly production.

Q3: Can TOXU support OEM and ODM projects?

Yes. TOXU supports prototype development, engineering validation and mass production.

Q4: What products can TOXU provide besides connectors?

TOXU provides RF connectors, RF cable assemblies, antennas and integrated RF hardware solutions.
