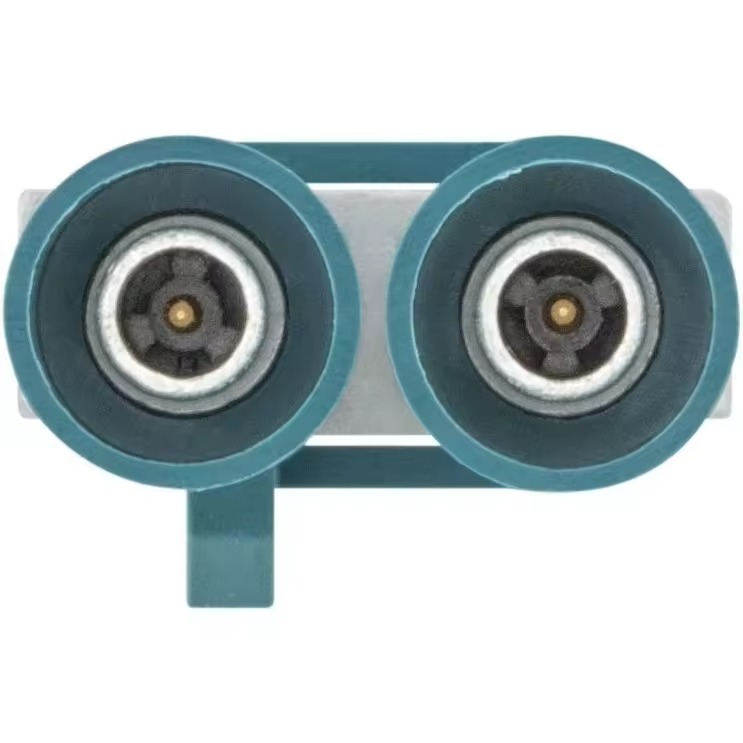

Overview

The TOXU KC.CN.0059 is a dual-port FAKRA Z-code right-angle PCB plug connector developed for automotive RF signal connections. Its compact housing combines two RF interfaces in one component, helping reduce PCB space and simplify vehicle electronic module assembly.

The connector provides a nominal impedance of 50 Ω and supports frequencies from DC to 6 GHz. It can be used for automotive GNSS, telematics, radio, infotainment, navigation and wireless communication systems.

The KC.CN.0059 features a water-blue Z-code housing and a mechanically keyed interface designed to help prevent incorrect mating. It is suitable for direct PCB installation using Pin-in-Paste or Through-Hole Reflow technology.

Key Features

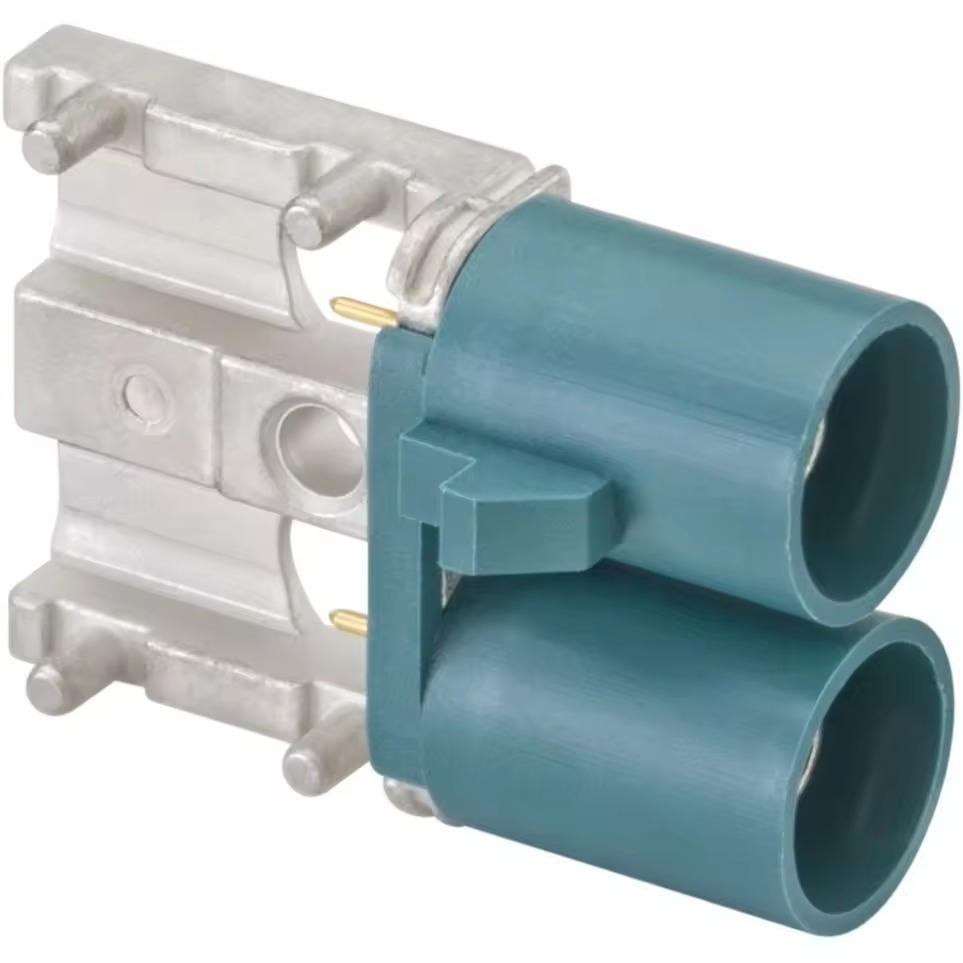

Dual-Port FAKRA Design

Combines two automotive RF interfaces in one compact housing for high-density PCB applications.

Z-Code Configuration

Uses a water-blue universal coding housing with a mechanically keyed interface for compatible automotive RF connections.

DC to 6 GHz Frequency Range

Supports automotive GNSS, radio, telematics, infotainment and wireless communication signals.

50 Ω Impedance

Provides the standard impedance required for automotive coaxial RF signal transmission.

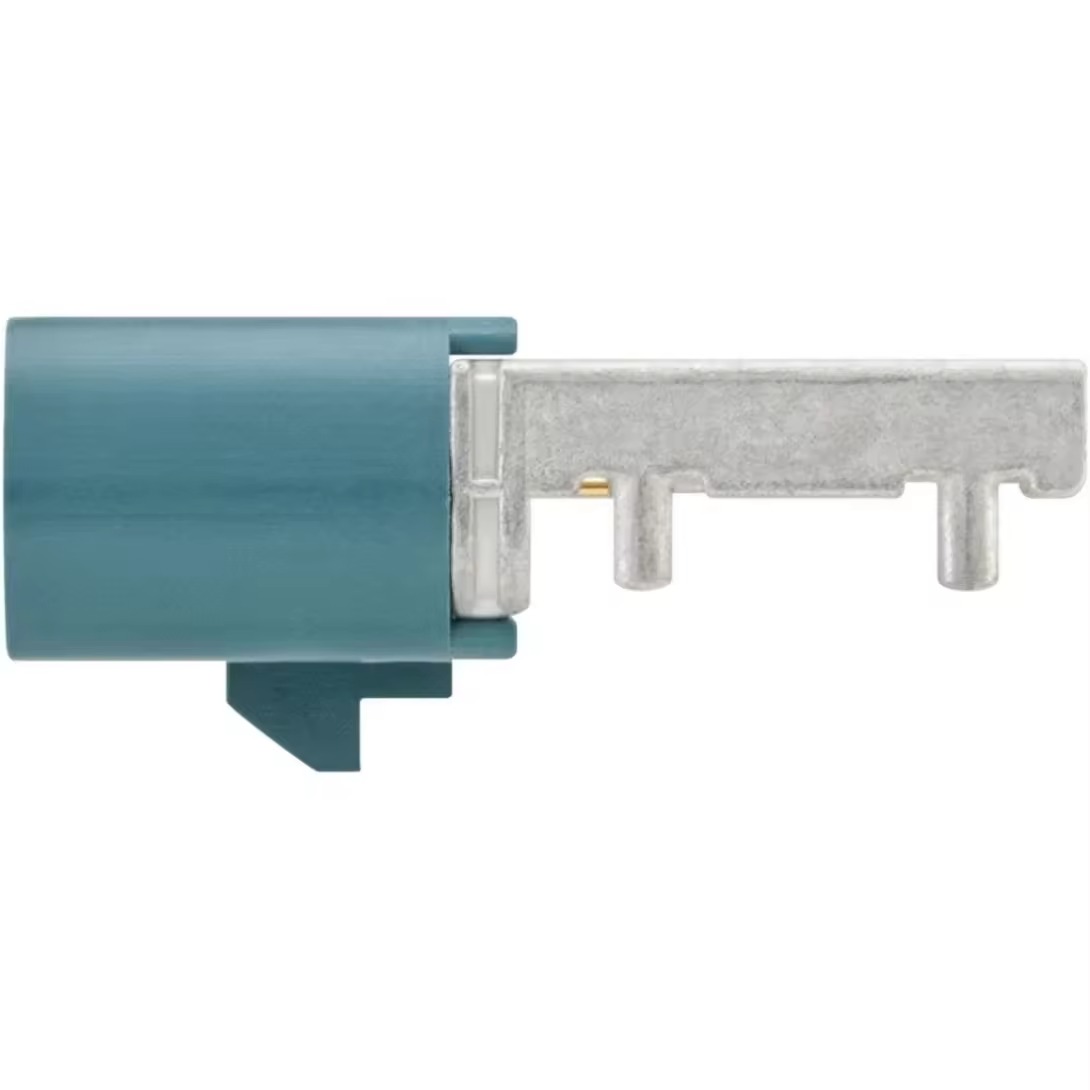

Right-Angle PCB Structure

The 90-degree orientation supports space-efficient installation inside vehicle receivers, control units and communication modules.

Through-Hole Reflow Mounting

Supports Pin-in-Paste assembly, combining through-hole mechanical retention with automated reflow soldering.

Automotive Temperature Performance

Designed for reliable operation across a temperature range of −40°C to +105°C.

Tape and Reel Packaging

Supplied in tape and reel packaging for automated placement and volume PCB assembly.

Technical Specifications

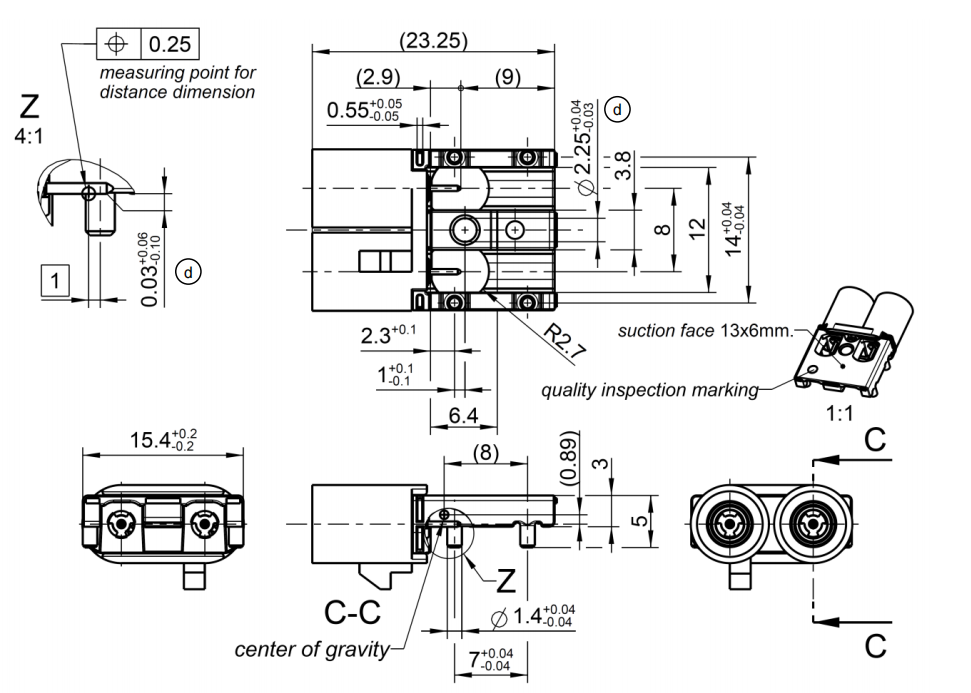

Dimension Drawing

Please refer to the product dimension drawing for detailed connector dimensions, PCB mounting positions and mechanical tolerances.

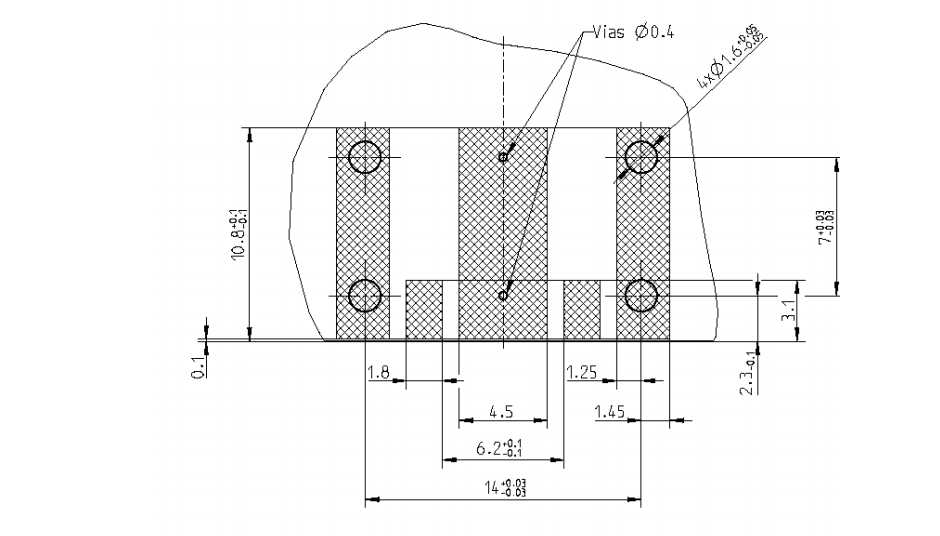

The recommended PCB footprint must be followed during host-board design. All specified mounting and signal holes should be plated through the complete PCB.

Applications

• Automotive GNSS and GPS receivers

• Vehicle telematics control units

• Automotive radio systems

• Vehicle infotainment systems

• Navigation and communication modules

• Automotive antenna control modules

• Vehicle connectivity systems

• Automotive electronic control units

System Integration

The KC.CN.0059 is designed for direct PCB installation using the Pin-in-Paste or Through-Hole Reflow process.

The recommended PCB thickness is between 0.7 mm and 1.5 mm. All mounting and RF signal holes should be plated through the complete PCB.

The specified PCB footprint should be followed to maintain the required mechanical fit and RF performance. The distance between each hole edge and the PCB outline should be at least 1 mm.

Actual return loss and signal performance depend on the PCB layout, 50 Ω trace design, grounding structure and mating connector.

The Z-code interface must be paired with a compatible Z-code FAKRA mating connector. The mechanical coding structure helps prevent connection with incompatible FAKRA interfaces.

TOXU can also provide matching automotive antennas, FAKRA cable assemblies and customized RF interconnection solutions according to the system requirements.

Why Choose TOXU

Automotive RF Connection Support

TOXU supports FAKRA connector selection for automotive GNSS, telematics, radio and communication applications.

Complete RF Interconnection Solutions

TOXU provides automotive connectors, GNSS antennas, communication antennas and customized RF cable assemblies.

Customized Cable Assembly

Cable type, cable length, connector combination and terminal configuration can be customized according to the project requirements.

PCB Integration Support

TOXU supports connector selection, PCB footprint confirmation and automotive RF hardware integration.

Prototype and Volume Production

TOXU supports engineering samples, prototype evaluation, small-batch production and volume supply.

FAQ

Q: Is the KC.CN.0059 a dual-port FAKRA connector?

Yes. It combines two FAKRA RF plug interfaces in one compact PCB-mounted housing.

Q: Which FAKRA coding does this connector use?

The KC.CN.0059 uses the Z-code configuration with a water-blue housing.

Q: What is the supported frequency range?

The connector supports RF signal transmission from DC to 6 GHz.

Q: Is the connector suitable for direct PCB mounting?

Yes. It is designed for direct PCB installation using Pin-in-Paste or Through-Hole Reflow soldering.

Q: Which PCB thickness can be used?

The recommended PCB thickness is between 0.7 mm and 1.5 mm.

Q: Can it be used for automotive GNSS systems?

Yes. It is suitable for automotive GNSS receivers, telematics control units, navigation systems and other vehicle RF applications.

Q: Can TOXU provide a matching FAKRA cable assembly?

Yes. TOXU can provide customized FAKRA cable assemblies with different cable types, lengths and connector combinations.

Q: Can TOXU provide matching automotive antennas?

Yes. TOXU provides GNSS, LTE, 5G, Wi-Fi and multi-function automotive antennas for different vehicle communication systems.

Q: Does TOXU support samples and volume production?

Yes. TOXU supports engineering samples, prototype evaluation and volume production according to the project requirements.
