Overview

The TOXU KC.CW.00358 is a FAKRA C Code Female to SMB Female RF Cable Assembly designed for reliable RF signal transmission in automotive GNSS antenna systems and wireless communication equipment.

Featuring a waterproof FAKRA C Code Female connector, an SMB Female connector and LMR100 coaxial cable, this cable assembly provides stable electrical performance and dependable RF connectivity for automotive and industrial applications.

With a characteristic impedance of 50Ω and a frequency range up to 6GHz, the KC.CW.00358 is suitable for various GNSS, GPS and RF communication systems requiring consistent signal transmission.

Key Features

FAKRA C Code Waterproof Connector

Equipped with a waterproof FAKRA C Code Female connector, providing secure and reliable RF connections for automotive environments.

SMB Female Interface

The SMB Female connector enables stable connection with GNSS receivers, telematics modules and RF communication equipment.

LMR100 Low-Loss Cable

Uses 50Ω LMR100 coaxial cable to deliver reliable RF signal transmission while maintaining installation flexibility.

Customized Cable Assembly

Cable length, connector combinations and cable types can be customized to meet different application requirements.

Reliable RF Signal Transmission

Designed for RF systems operating up to 6GHz, helping maintain stable communication performance.

OEM Manufacturing Capability

Supports prototype development, engineering validation and volume production for customized RF cable assembly projects.

Technical Specifications

Dimension Drawing

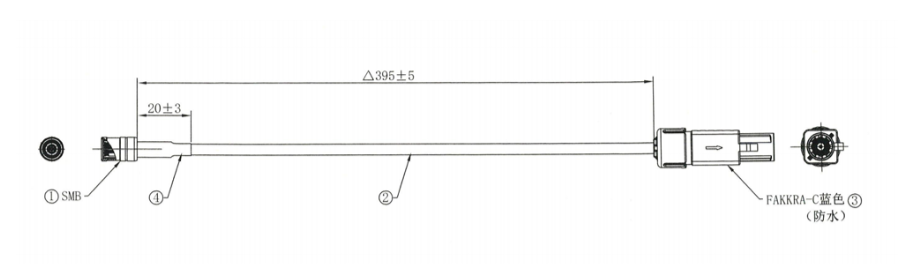

The standard dimension drawing of the KC.CW.00358 RF Cable Assembly is shown below, illustrating the connector configuration and overall cable length.

Overall Cable Length: 395±5 mm

Connector A: FAKRA C Code Female (Blue, Waterproof)

Connector B: SMB Female

Cable Type: LMR100 Coaxial Cable

Applications

The KC.CW.00358 RF Cable Assembly is suitable for:

● Automotive GNSS antenna systems

● GPS navigation equipment

● Vehicle telematics systems

● RF communication equipment

● Automotive electronic modules

● Wireless communication devices

System Integration

TOXU RF cable assemblies provide dependable RF connections between antennas and communication modules.

Typical integration structure:

GNSS Antenna

↓

FAKRA C Code RF Cable Assembly

↓

SMB Interface

↓

GNSS Receiver / RF Module

↓

Electronic Control System

Complete RF Hardware Solution Support

RF Cable Assembly Solutions

TOXU provides customized RF cable assemblies with different connector combinations, cable types and cable lengths for automotive, GNSS and wireless communication applications.

RF Connector Solutions

TOXU supplies FAKRA, Mini FAKRA, SMA, SMB, MMCX, MCX, TNC, BNC and other customized RF connector solutions.

Antenna Integration

TOXU supports complete integration between antennas, RF cable assemblies and RF connector systems to simplify customer hardware development.

Hardware Customization

From prototype samples to mass production, TOXU provides flexible OEM and ODM services for customized RF hardware projects.

Why Choose TOXU

TOXU is an RF hardware integration solution provider specializing in RF cable assemblies, RF connectors, GNSS antennas and customized RF products.

With professional engineering support and advanced manufacturing capabilities, TOXU helps customers accelerate product development from prototype verification to volume production.
