Overview

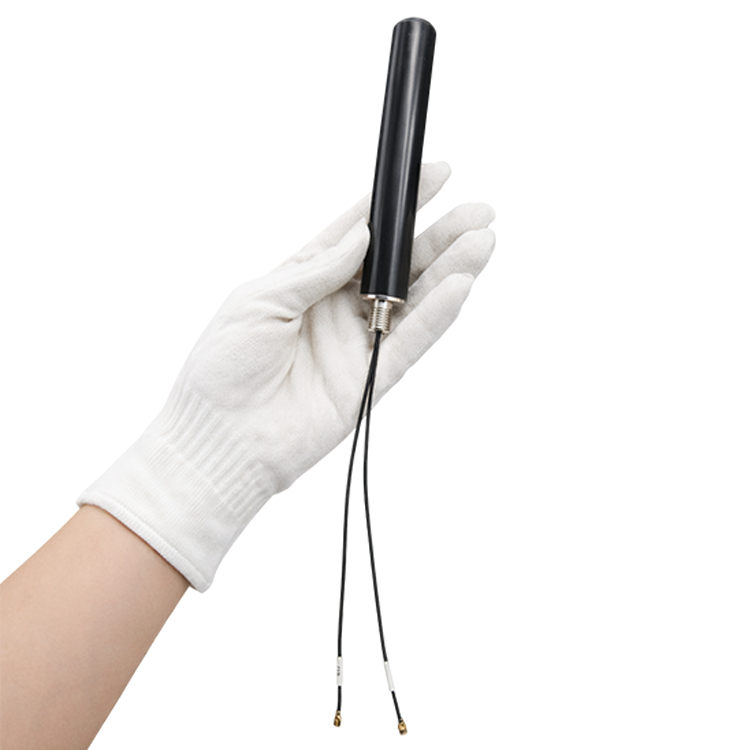

The TOXU KC.DA.00327 is a 2-in-1 external combination antenna integrating separate 4G LTE and LoRa antenna functions into one compact housing.

The 4G LTE antenna covers 824-960MHz and 1710-2690MHz, while the LoRa antenna operates at 466MHz +/-5MHz, equivalent to an operating range of approximately 461-471MHz.

Two independent 1.37mm RF cables and two IPEX-I connectors are provided for connection to compatible cellular and LoRa module interfaces. This independent cable structure allows the two wireless systems to operate through separate RF ports.

The antenna uses an omnidirectional monopole structure with vertical polarization and a specified maximum gain of 3.66dBi. Its ABS housing, IP67 protection rating and -40°C to +85°C operating temperature range support installation in compatible outdoor and industrial wireless equipment.

An M12 threaded mounting structure provides secure equipment installation. Cable length, connector type, operating frequency, housing structure and product labeling can be evaluated according to project requirements.

Key Features

4G LTE + LoRa Combination

Integrates separate cellular and sub-GHz LoRa antenna functions into one compact external housing.

Wide 4G LTE Frequency Coverage

Covers 824-960MHz and 1710-2690MHz for integration with compatible 4G LTE cellular modules and communication equipment.

466MHz LoRa Operation

The independent LoRa antenna operates at 466MHz +/-5MHz for compatible sub-GHz wireless communication equipment.

Dual Independent RF Connections

Separate 4G and LoRa cables allow connection to two independent RF ports inside the equipment.

Omnidirectional Radiation

The vertically polarized monopole structure provides omnidirectional signal coverage for compatible fixed and mobile wireless equipment.

IP67 Outdoor Protection

The sealed ABS housing provides an IP67 protection rating when the antenna is correctly installed according to the equipment design.

M12 Threaded Mounting

The threaded mounting structure supports secure installation through a compatible equipment enclosure or mounting panel.

Project Customization Support

Frequency, cable length, connector type, housing structure, printed cable identification, label and packaging can be evaluated for volume-order projects.

Technical Specifications

Dimension Drawing

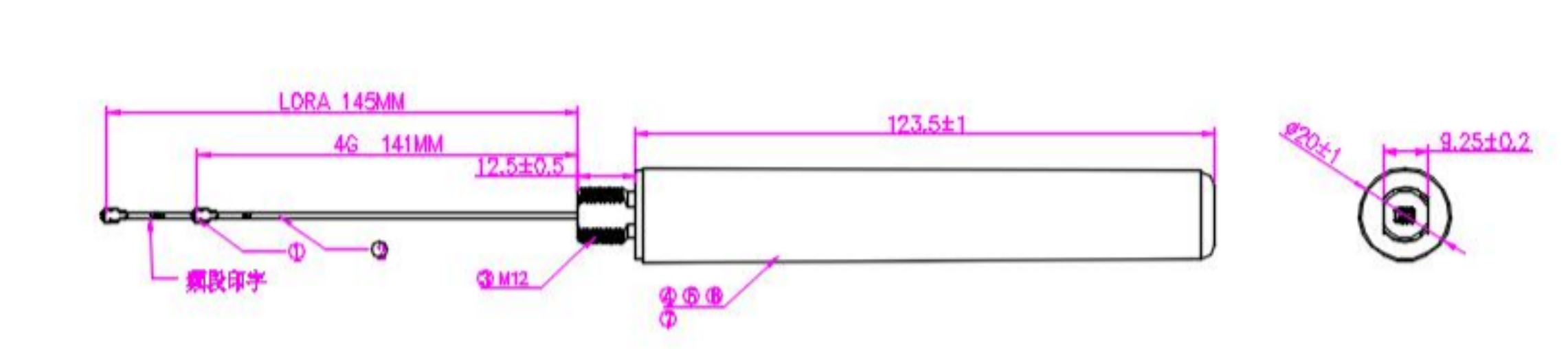

The KC.DA.00327 uses an approximately 20 x 123.5mm cylindrical ABS housing with an M12 threaded mounting structure. The 4G and LoRa cables have exposed lengths of approximately 141mm and 145mm.

Applications

4G LTE + LoRa Gateways

Industrial IoT Equipment

Remote Monitoring Terminals

Smart Metering Equipment

Wireless Data Acquisition Systems

Outdoor Communication Terminals

Telemetry and Remote-Control Equipment

Environmental Monitoring Systems

Industrial Routers and Controllers

Customized Cellular and LoRa Devices

System Integration

The KC.DA.00327 can be integrated into compatible dual-wireless equipment using the following configuration:

4G Antenna Cable -> 4G LTE Module RF Port

LoRa Antenna Cable -> 466MHz LoRa Module RF Port

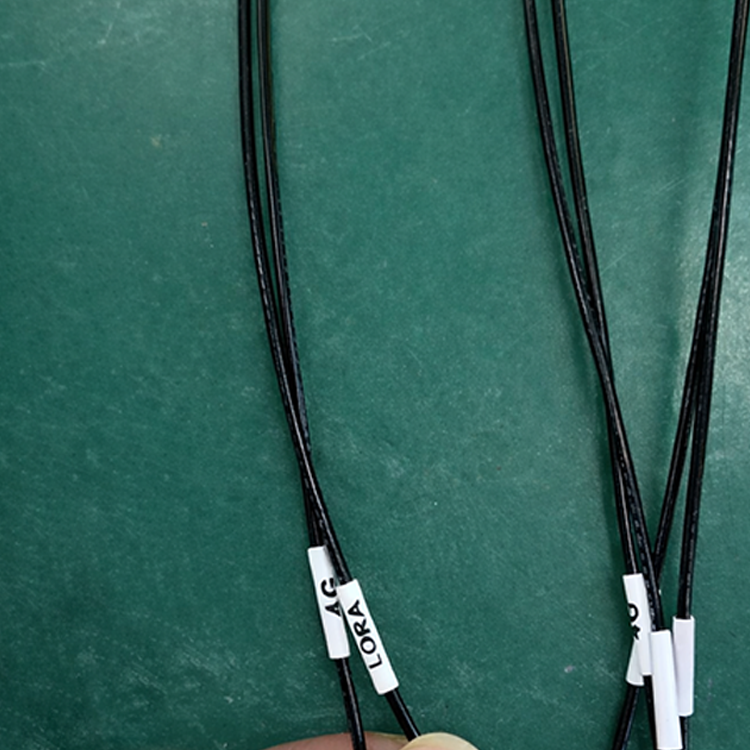

The two IPEX-I connectors must be connected to their corresponding 4G and LoRa RF ports. The heat-shrink identification on each cable should be checked before assembly.

Before ordering, confirm that the equipment supports 824-960MHz, 1710-2690MHz and the specified 466MHz LoRa frequency. LoRa frequency plans vary between countries and projects, so 466MHz compatibility must be confirmed before selection.

The mounting hole and enclosure thickness must be compatible with the M12 threaded structure. Correct sealing and mechanical installation are required to maintain the intended IP67 protection.

The antenna should be installed away from large metal surfaces, batteries, motors, power converters, high-current wiring and other components that may affect RF performance.

Sample testing with the actual enclosure, modules, PCB, cable routing, mounting position and intended operating environment is recommended before volume production.

Why Choose TOXU

TOXU supplies cellular antennas, LoRa antennas, GNSS antennas, Wi-Fi and Bluetooth antennas, combination antennas, RF cable assemblies, coaxial connectors, communication modules and receiver hardware for equipment manufacturers and system integrators.

Our team can assist with frequency confirmation, connector selection, cable configuration, antenna installation evaluation, sample preparation and RF performance testing.

For volume-order projects, TOXU can evaluate customized frequency ranges, cable lengths, connector types, mounting structures, product labels and packaging.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports antenna assembly, RF testing, cable processing, quality control and stable volume-order delivery.

FAQ

Q: What wireless functions does KC.DA.00327 support?

A: It integrates one 4G LTE antenna and one 466MHz LoRa antenna into a single external housing.

Q: What frequency ranges does the 4G antenna cover?

A: The 4G section covers 824-960MHz and 1710-2690MHz.

Q: What frequency does the LoRa antenna support?

A: The LoRa section operates at 466MHz +/-5MHz, corresponding to an approximate range of 461-471MHz.

Q: Does the antenna use one shared RF cable?

A: No. The 4G and LoRa antenna sections use separate RF cables and separate IPEX-I connectors.

Q: Is this antenna suitable for all regional LoRa networks?

A: No. LoRa operating frequencies vary by region and application. The equipment must support the specified 466MHz frequency range.

Q: Is the antenna waterproof?

A: The specification states an IP67 protection rating. Correct mounting and sealing are required to maintain the intended protection in the final equipment.

Q: How is the antenna installed?

A: It uses an M12 threaded mounting structure for installation through a compatible enclosure or mounting panel.

Q: Can the cable length and connector be customized?

A: Yes. Cable length, connector type, frequency, housing structure, cable identification, label and packaging can be evaluated according to project requirements and order quantity.

Q: Is sample testing recommended?

A: Yes. Final testing should be completed with the actual modules, enclosure, PCB, installation position and cable routing before volume production.
