Overview

The TOXU KC.IG.00123 is a 207 Panorama AM/FM PCB antenna board designed for automotive radio reception applications. The antenna integrates RF antenna elements with PCB technology to provide a compact and reliable solution for vehicle electronic systems.

With a compact 53.5×32.3×1mm structure, the KC.IG.00123 supports AM 520-1710kHz and FM 87.5-108MHz frequency bands. The 75Ω impedance design allows integration with automotive radio reception systems.

TOXU provides complete RF hardware integration capabilities including antenna design, PCB development, RF optimization, prototype validation, and OEM manufacturing.

Key Features

AM/FM Broadcast Signal Reception

Designed for AM and FM radio reception applications with AM 520-1710kHz and FM 87.5-108MHz frequency coverage.

207 Panorama PCB Structure

Integrated PCB antenna design suitable for automotive electronic system installation.

Compact Antenna Design

The 53.5×32.3×1mm structure provides a compact solution for space-limited applications.

75Ω RF Design

Designed for automotive radio systems requiring 75Ω impedance matching.

Customized OEM Capability

TOXU supports customized antenna design, PCB integration, RF optimization, and volume production.

Technical Specifications

Dimension Drawing

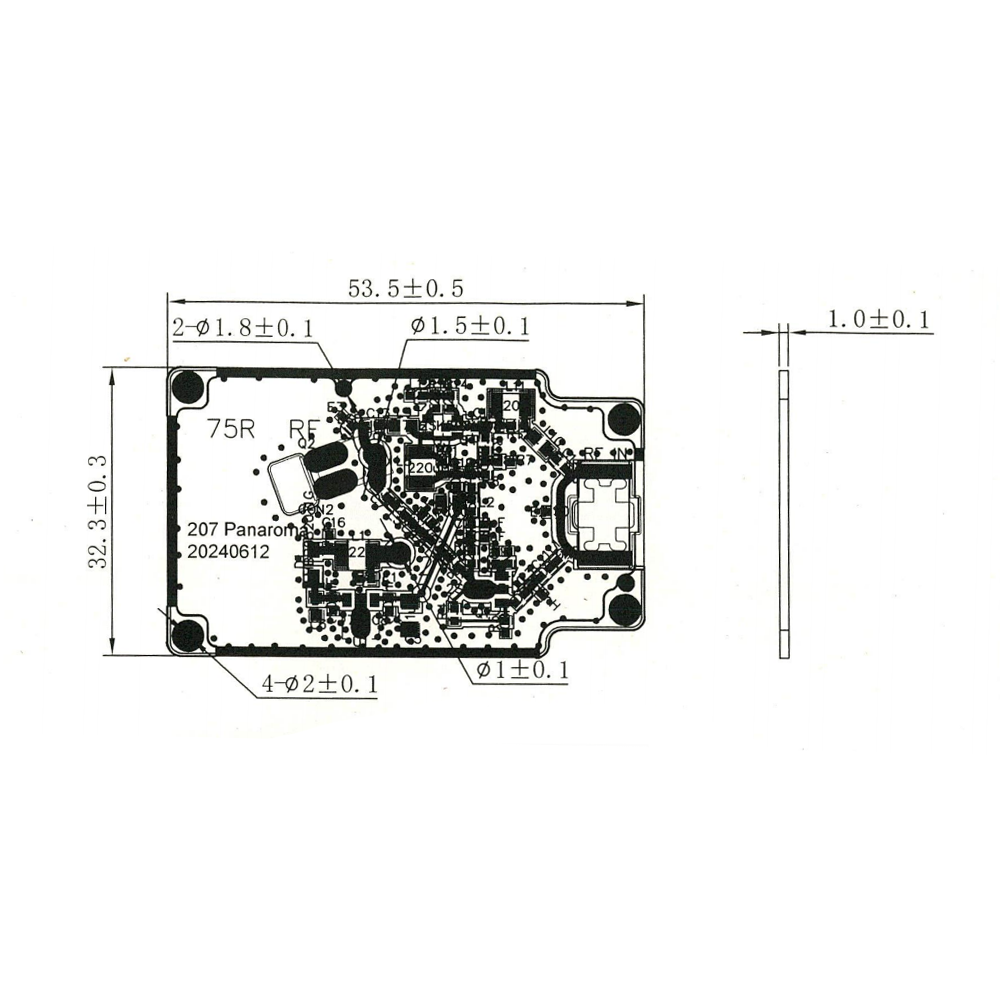

The KC.IG.00123 mechanical drawing shows the PCB antenna structure and product dimensions. The antenna board dimension is 53.5×32.3×1mm.

Applications

Automotive Radio Systems

Suitable for AM/FM broadcast reception in vehicle audio and radio systems.

Vehicle Electronic Equipment

Designed for embedded automotive electronics requiring compact antenna integration.

OEM Automotive Electronics

Applicable for customized vehicle electronic product development and manufacturing.

System Integration

The KC.IG.00123 can be integrated into automotive RF systems:

AM/FM PCB Antenna Board

↓

Automotive Radio Receiver

↓

Vehicle Electronic System

↓

Audio Equipment

TOXU supports antenna integration, RF optimization, PCB manufacturing, and OEM production from prototype development to mass production.
