Overview

The TOXU KC.IG.00122 is a Dena AM/FM antenna PCB board designed for automotive radio reception applications. The antenna integrates RF antenna structure and PCB technology to provide a compact solution for vehicle electronic systems.

The antenna board supports AM 520-1710kHz and FM 87.5-108MHz frequency ranges with a 75Ω impedance design. Its compact PCB structure allows convenient integration into automotive radio and electronic systems.

TOXU provides complete RF hardware support including antenna design, PCB integration, RF optimization, prototype development, and OEM manufacturing.

Key Features

AM/FM Frequency Support

Designed for AM/FM radio reception applications with AM 520-1710kHz and FM 87.5-108MHz frequency coverage.

Integrated PCB Antenna Board

Combines antenna design and PCB structure to support compact automotive electronic integration.

75Ω RF Interface

Designed for automotive radio systems requiring 75Ω impedance matching.

Compact Mechanical Design

The 68×35.4mm PCB structure helps simplify installation in space-limited applications.

Customized OEM Capability

TOXU supports antenna customization, RF optimization, PCB integration, and mass production.

Technical Specifications

Dimension Drawing

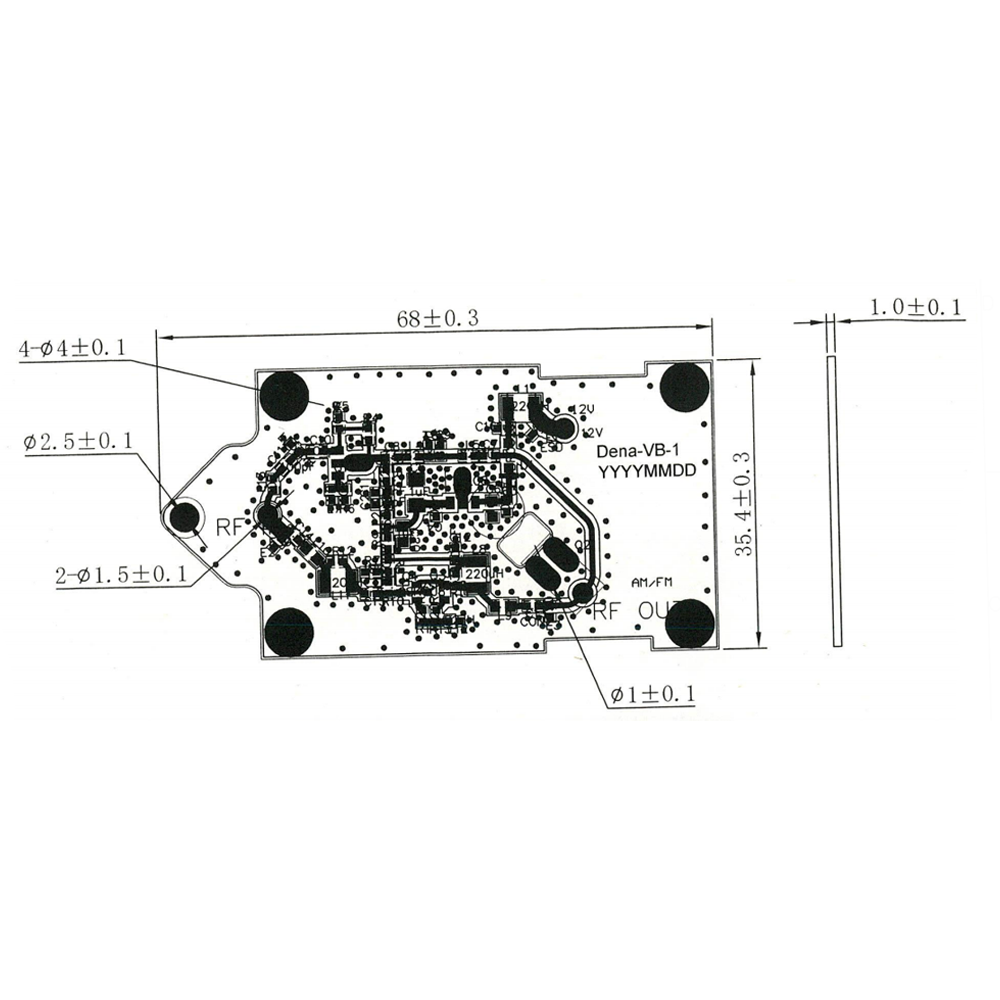

The KC.IG.00122 mechanical drawing provides the PCB structure and product dimensions for integration. The antenna board dimension is 68×35.4mm.

Applications

Automotive Radio Systems

Suitable for AM/FM broadcast signal reception in vehicle radio systems.

Vehicle Electronic Equipment

Designed for embedded automotive electronics requiring compact antenna solutions.

OEM Automotive Projects

Suitable for customized vehicle electronic product development and manufacturing.

System Integration

The KC.IG.00122 can be integrated into automotive RF systems as follows:

AM/FM Antenna PCB Board

↓

Automotive Radio Receiver

↓

Vehicle Electronic System

↓

Audio Equipment

TOXU supports antenna integration, PCB development, RF optimization, and OEM manufacturing services from prototype to mass production.
