Overview

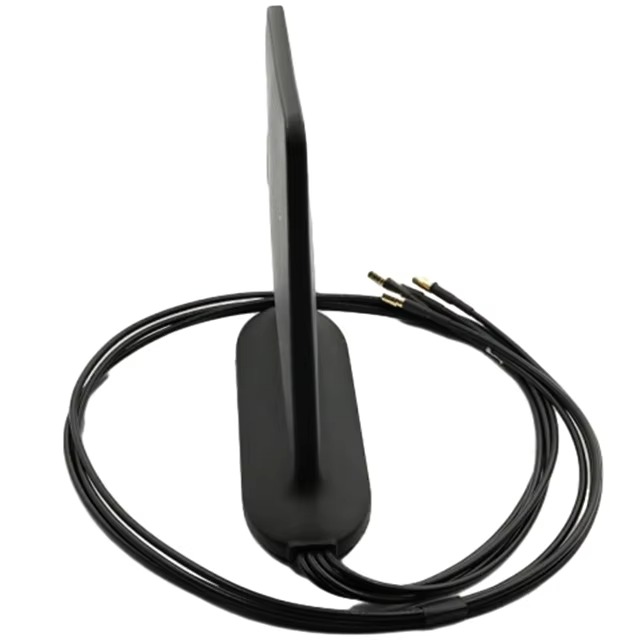

The TOXU TX-A75 is a multi-band magnetic-mount cellular antenna developed for 4G LTE and sub-6GHz 5G communication equipment.

It supports 600–960MHz, 1450–2690MHz, 3300–4200MHz, and 4400–6000MHz frequency ranges. The antenna is suitable for cellular routers, CPE devices, industrial gateways, IoT terminals, remote monitoring equipment, and other wireless communication systems operating within the specified bands.

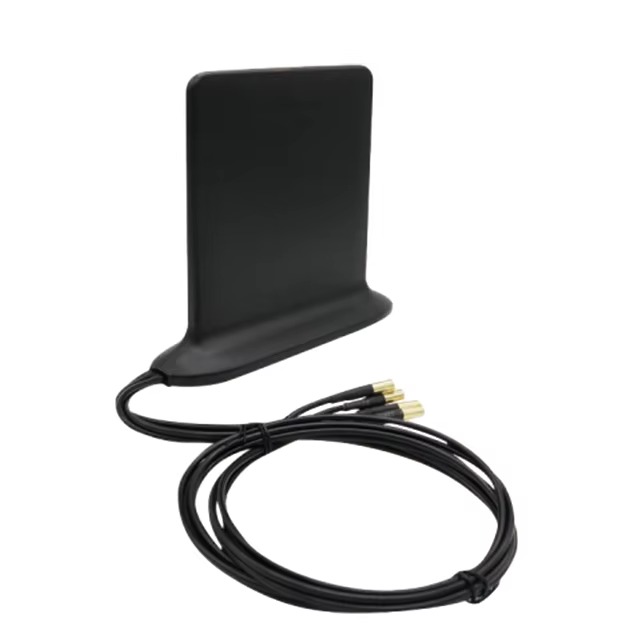

The TX-A75 combines linear polarization, 3–5dBi gain, a compact vertical housing, an integrated magnetic base, a 1000mm coaxial cable, and an SMA male connector. Its magnetic mounting structure enables quick installation and repositioning on suitable metal surfaces without requiring permanent mounting holes.

Key Features

Multi-Band 4G LTE and 5G NR Support

Supports 600–960MHz, 1450–2690MHz, 3300–4200MHz, and 4400–6000MHz frequency ranges for compatible cellular communication equipment.

Magnetic Mount Installation

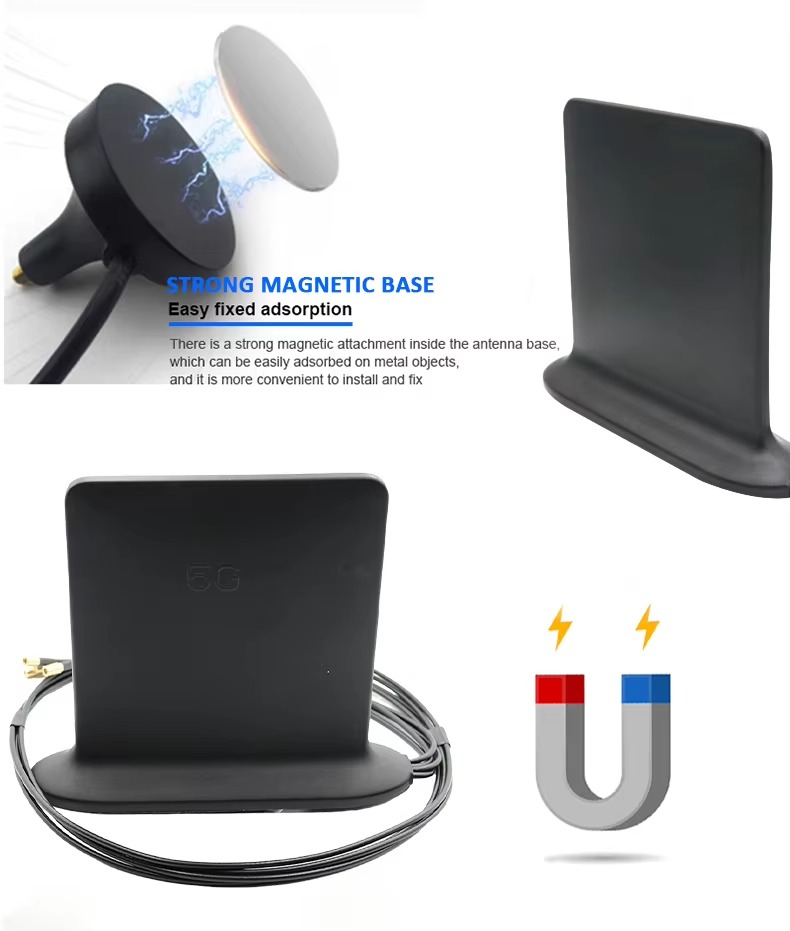

The integrated magnetic base allows quick placement and repositioning on suitable flat metal surfaces without drilling installation holes.

3–5dBi Antenna Gain

Provides 3–5dBi gain for cellular signal transmission and reception across the specified operating bands.

External Cabled Design

The 1000mm coaxial cable enables the antenna to be positioned separately from the router, gateway, communication module, or equipment enclosure.

SMA Male Connection

The standard SMA plug male-pin connector supports connection to compatible cellular routers, gateways, and wireless communication terminals with a 50Ω RF interface.

Linear Polarization

The linearly polarized antenna structure is designed for cellular communication applications within the specified operating bands.

Custom Antenna Configuration

TOXU can customize the operating bands, cable length, connector type, antenna housing, and RF performance according to the customer’s device and installation requirements.

Technical Specifications

Applications

• 4G LTE and 5G Cellular Routers

• Customer Premises Equipment

• Industrial Cellular Gateways

• IoT Communication Terminals

• Remote Monitoring Equipment

• Wireless Access Devices

• Smart Vending Machines

• Payment and Self-Service Terminals

• Security and Surveillance Equipment

• Industrial Automation Systems

• Vehicle-Mounted Communication Equipment

• Cellular Backup Communication Systems

System Integration

The TX-A75 can be connected to cellular routers, 4G LTE modules, sub-6GHz 5G modules, CPE devices, industrial gateways, and IoT terminals equipped with a compatible 50Ω SMA interface.

The integrated magnetic base allows the antenna to be installed on a suitable metal surface. For stable installation and RF performance, the mounting surface should be clean, flat, and sufficiently large.

The 1000mm coaxial cable provides flexibility when positioning the antenna away from the connected device or equipment enclosure. Excessive cable bending, compression, or routing close to strong interference sources should be avoided.

Before ordering, customers should confirm the required operating bands, SMA connector type and polarity, cable length, mounting surface, installation environment, and number of cellular antenna ports. Devices using 2×2 or 4×4 MIMO normally require multiple antennas.

Why Choose TOXU

TOXU provides cellular antenna design, RF tuning, coaxial cable assembly, connector integration, prototype development, and mass-production support for wireless communication equipment manufacturers.

Our engineering team can customize the antenna frequency, housing structure, magnetic mounting design, cable type, cable length, connector, and RF performance according to the customer’s communication module and installation environment.

TOXU also provides RF cable assemblies, RF connectors, PCBA manufacturing, and product assembly services, supporting customers from antenna selection and sample verification to complete communication hardware integration.

With IATF16949 and ISO9001-certified manufacturing capabilities, TOXU supports engineering verification, quality control, and stable volume production for industrial, IoT, and automotive-related projects.

FAQ

Q: Which frequency ranges does the TX-A75 support?

A: It supports 600–960MHz, 1450–2690MHz, 3300–4200MHz, and 4400–6000MHz frequency ranges.

Q: Is the TX-A75 suitable for both 4G LTE and 5G equipment?

A: Yes. It is designed for compatible 4G LTE and sub-6GHz 5G equipment operating within the specified frequency ranges.

Q: How is the antenna installed?

A: The TX-A75 uses an integrated magnetic base for placement on suitable flat metal surfaces.

Q: Can the antenna be installed on a plastic enclosure?

A: The magnetic base cannot attach directly to plastic. A suitable metal plate or bracket would be required for magnetic installation.

Q: Can one antenna support a MIMO router?

A: One antenna connects to one RF port. A 2×2 or 4×4 MIMO device normally requires two or four antennas according to its cellular antenna-port configuration.

Q: Can the cable length and connector be customized?

A: Yes. TOXU can customize the cable length and RF connector according to the equipment interface and installation requirements.

Q: What information should be provided before ordering?

A: Please provide the required cellular bands, communication module or router model, connector type, cable length, mounting environment, MIMO configuration, and expected order quantity.
