Overview

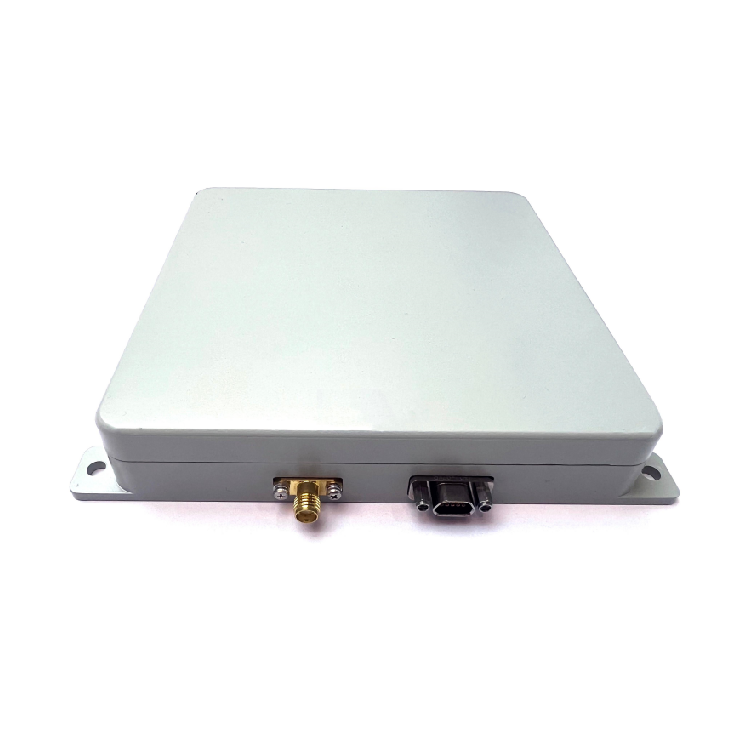

The TOXU TX-009Pro-8CH-G1-WG-DT is an 8-channel multi-constellation GNSS anti-jamming terminal designed for UAVs, unmanned vehicles, and industrial autonomous navigation systems.

The terminal integrates antenna array, anti-jamming components, and GNSS receiver functions into a compact solution, helping improve satellite navigation reliability in complex electromagnetic environments.

TX-009Pro-8CH-G1-WG-DT supports BDS-B1, GPS-L1, and GLONASS-G1 three-frequency GNSS signal reception. It provides NMEA0183 navigation output and supports both serial communication and RF signal output for flexible system integration.

Key Features

8-Channel Enhanced Anti-Jamming Capability

The 8-channel architecture provides enhanced GNSS interference suppression capability with single interference C/N ratio ≥105dB and three interference C/N ratio ≥95dB.

Multi-Constellation GNSS Signal Support

Supports BDS-B1, GPS-L1, and GLONASS-G1 satellite navigation signals for different navigation system requirements.

Integrated GNSS Navigation Solution

The product integrates antenna array, anti-jamming modules, and GNSS receiver into one terminal, reducing system integration complexity.

Flexible Output Interfaces

Supports TTL serial communication and SMA RF output interface. Navigation information is provided through NMEA0183 protocol.

Industrial Reliability Design

Supports software upgrade, system self-check, over-voltage protection, and reverse polarity protection functions.

Technical Specifications

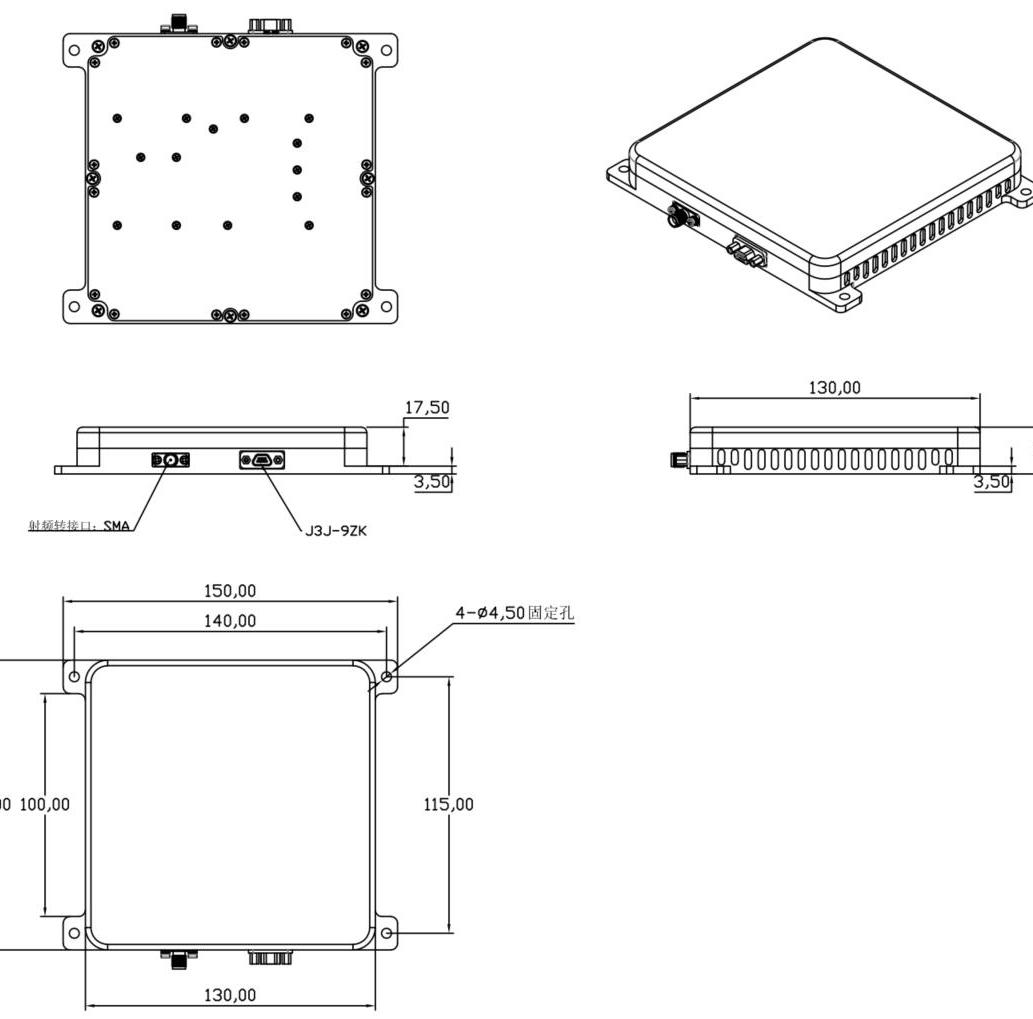

Dimension Drawing

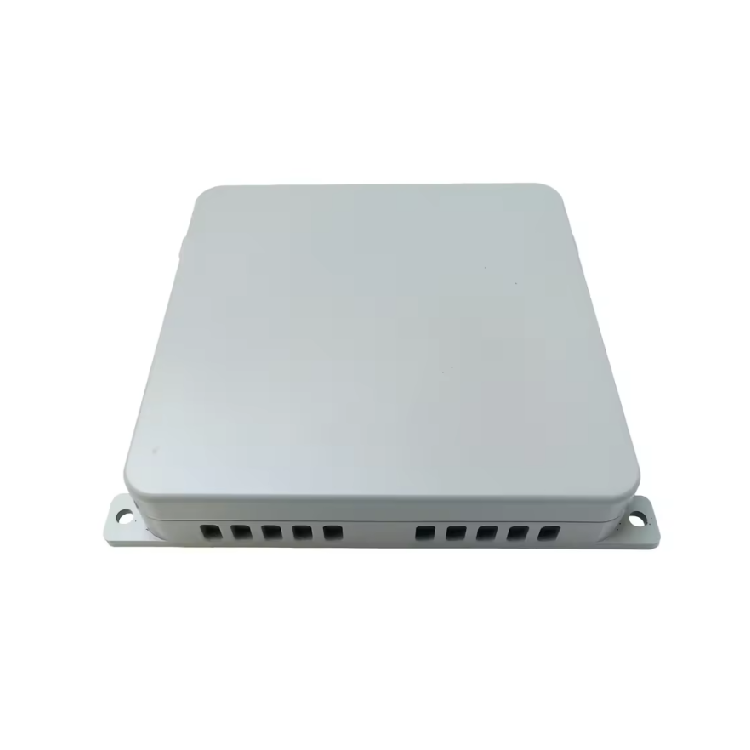

The TX-009Pro-8CH-G1-WG-DT features a compact industrial enclosure with dimensions of 150mm × 130mm × 21mm.

The mechanical structure supports M3 screw mounting for integration into UAVs, unmanned vehicles, and industrial navigation platforms.

Applications

• UAV Navigation Systems

• Unmanned Ground Vehicles

• Autonomous Navigation Platforms

• Unmanned Marine Vehicles

• Industrial Navigation Systems

• GNSS Reliability Applications

System Integration

The TX-009Pro-8CH-G1-WG-DT can be integrated with flight controllers and autonomous platforms through TTL serial communication.

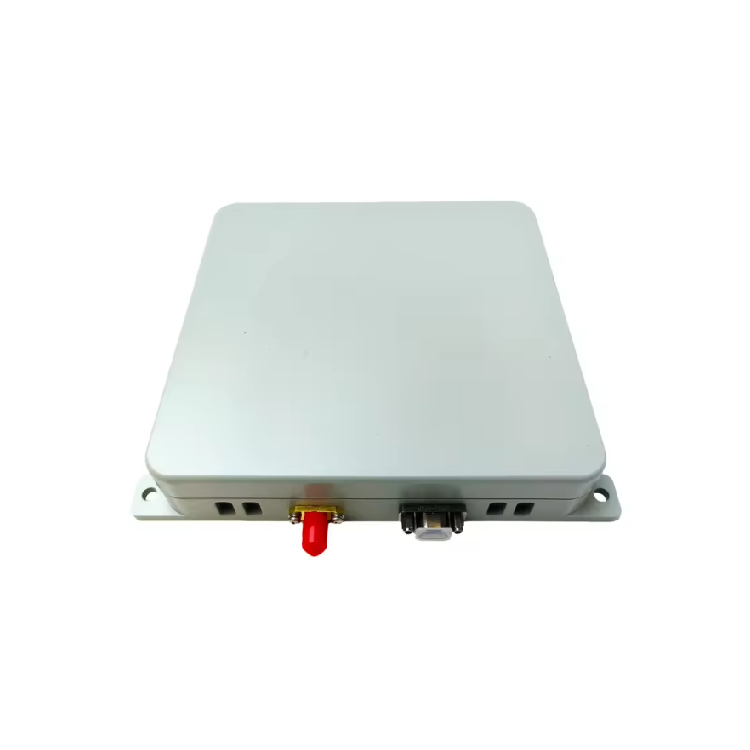

The terminal also supports RF signal output through SMA interface, allowing connection with external positioning equipment when required.

The product outputs navigation information through NMEA0183 protocol and provides flexible integration options for different system architectures.

Why Choose TOXU

TOXU provides integrated GNSS and RF hardware solutions including GNSS terminals, anti-jamming solutions, GNSS antennas, and RF cable assemblies.

With professional RF engineering capability, OEM/ODM customization service, and manufacturing support, TOXU helps customers develop products from prototype stage to mass production.

Supported by IATF16949 and ISO9001 quality systems, TOXU provides reliable hardware solutions for industrial positioning and navigation applications.

FAQ – Frequently Asked Questions

Q1: What is TX-009Pro-8CH-G1-WG-DT?

A1: TX-009Pro-8CH-G1-WG-DT is an 8-channel multi-constellation GNSS anti-jamming terminal integrating antenna array, GNSS receiver, and anti-jamming functions.

Q2: Which GNSS systems are supported?

A2: It supports BDS-B1, GPS-L1, and GLONASS-G1 satellite navigation signals.

Q3: What is the anti-jamming capability?

A3: The terminal supports single interference C/N ratio ≥105dB and three interference C/N ratio ≥95dB.

Q4: Can TOXU provide customization?

A4: Yes. TOXU supports OEM/ODM customization including hardware optimization, system integration, and customized GNSS solutions.
