Overview

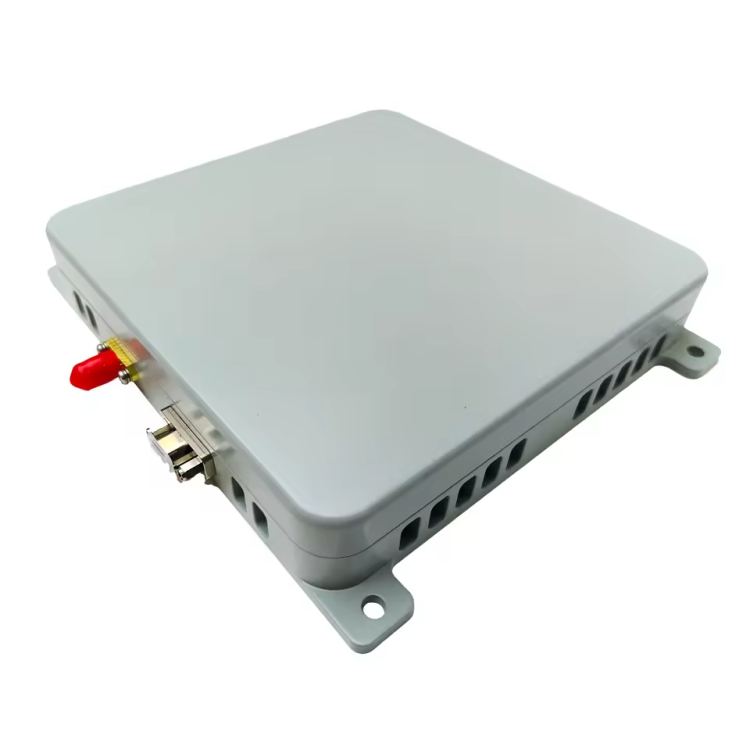

The TOXU TX-009Pro-8CH-BD-WG-DT is an 8-channel GNSS anti-jamming terminal designed for UAVs, unmanned vehicles, and autonomous navigation systems requiring reliable satellite navigation performance.

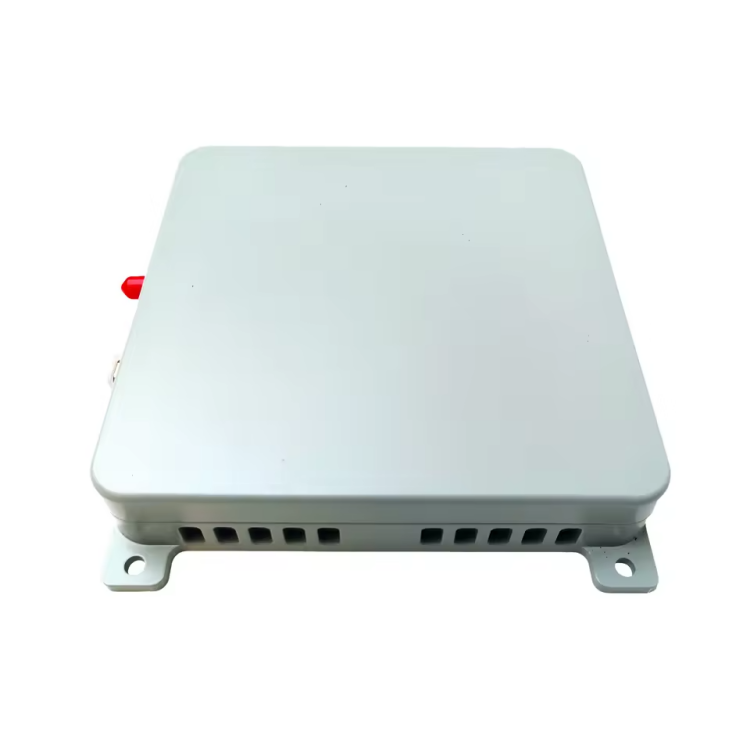

The terminal integrates antenna array, anti-jamming processing components, and GNSS receiver functions into one compact industrial enclosure, helping improve navigation reliability under complex electromagnetic interference environments.

TX-009Pro-8CH-BD-WG-DT supports BDS B1/B3 and GPS L1 satellite navigation signals, provides NMEA0183 output protocol, and supports both serial communication and RF signal output modes for flexible system integration.

Key Features

8-Channel Enhanced Anti-Jamming Architecture

The 8-channel architecture provides enhanced GNSS signal processing capability with single interference C/N ratio ≥105dB and three interference C/N ratio ≥95dB.

Dual-Band GNSS Signal Support

Supports BDS B1/B3 and GPS L1 navigation signals, providing reliable satellite signal reception for autonomous applications.

Integrated GNSS Anti-Jamming Terminal

The integrated design combines antenna array, anti-jamming components, and GNSS receiver functions into one compact terminal solution.

Flexible Data and RF Interfaces

Supports TTL serial communication, SMA RF interface, and NMEA0183 protocol output for connection with different navigation platforms.

Industrial Protection Design

Supports over-voltage protection, reverse polarity protection, self-check function, and software upgrade capability.

Technical Specifications

Dimension Drawing

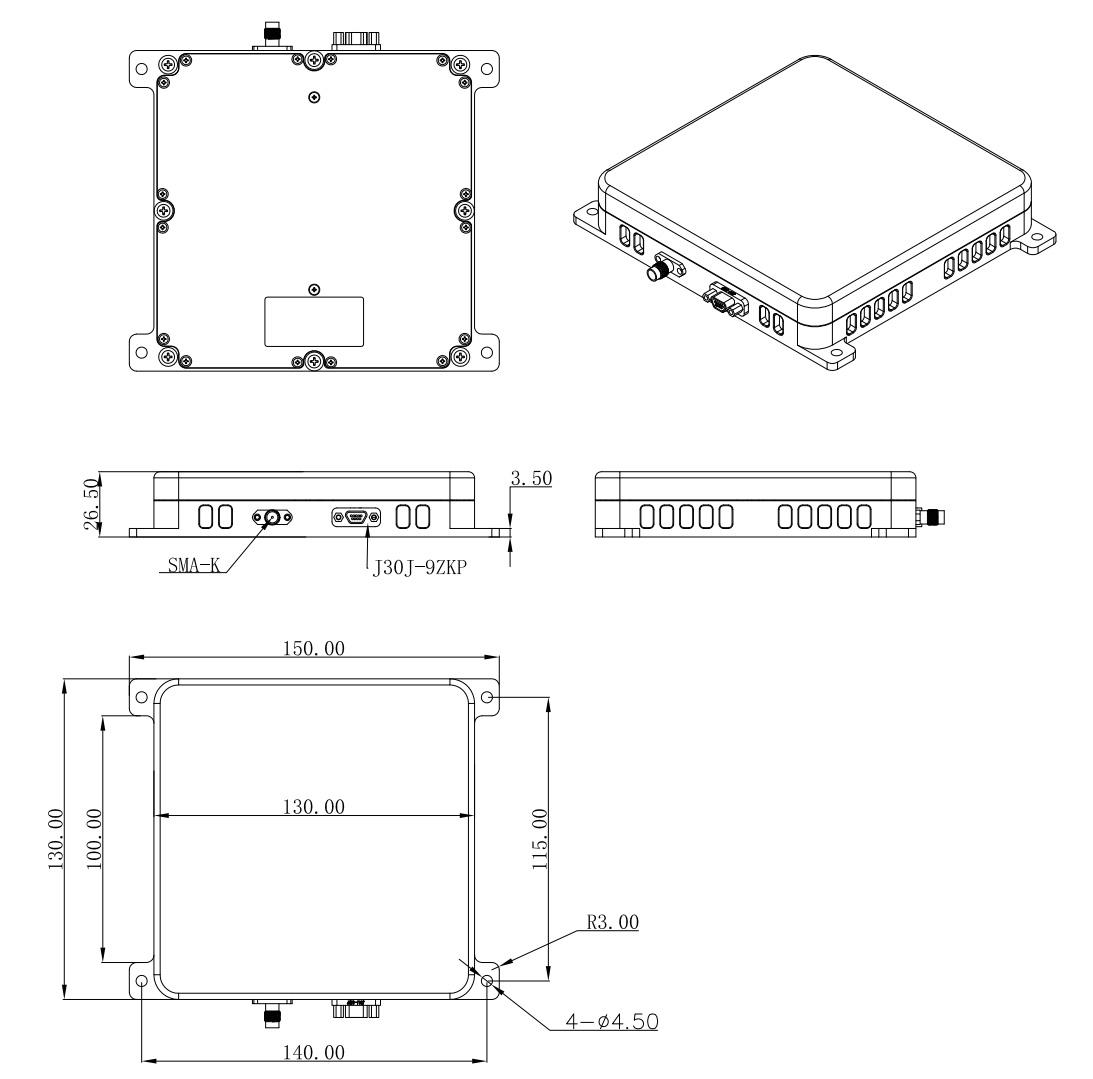

The TX-009Pro-8CH-BD-WG-DT features a compact industrial enclosure with dimensions of 150mm × 130mm × 26.5mm.

The mechanical structure supports M3 screw mounting for integration into UAVs, unmanned vehicles, and industrial navigation platforms.

Applications

• UAV Navigation Systems

• Unmanned Ground Vehicles

• Autonomous Navigation Platforms

• Industrial Navigation Systems

• GNSS Security and Reliability Applications

System Integration

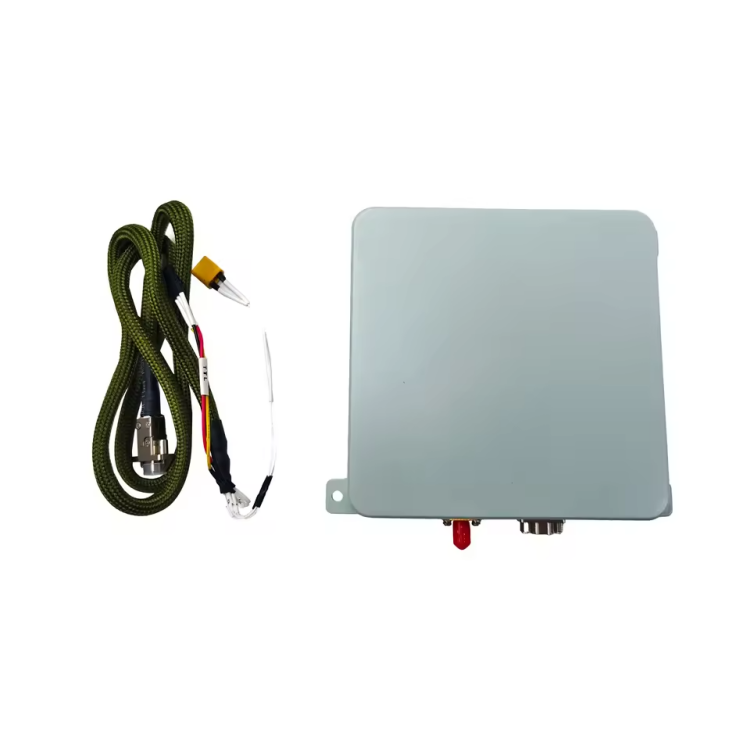

The TX-009Pro-8CH-BD-WG-DT can connect with flight controllers and navigation platforms through TTL serial communication.

The terminal supports two integration modes: direct navigation data output through serial interface or RF signal output through SMA interface connected to external positioning equipment.

The product outputs navigation information based on NMEA0183 protocol and supports flexible integration according to different system requirements.

Why Choose TOXU

TOXU provides integrated GNSS and RF hardware solutions, including GNSS terminals, anti-jamming solutions, GNSS antennas, and RF cable assemblies.

With professional RF design capability, engineering support, and OEM/ODM customization experience, TOXU supports customers from prototype development to mass production.

Supported by IATF16949 and ISO9001 quality systems, TOXU provides reliable manufacturing control and customized hardware solutions for industrial applications.
