Overview

The TOXU TX-007Pro-8CH-DF-WG-DR GNSS Anti-Jamming Navigation Terminal is an integrated GNSS positioning solution designed for UAVs, unmanned vehicles, and autonomous systems requiring reliable navigation performance.

The TX-007Pro integrates GNSS receiving capability, signal processing, and communication interfaces into one compact terminal design, helping simplify hardware integration and improve navigation reliability for autonomous platforms.

The terminal adopts an 8-channel architecture and supports BDS B1 and GPS L1 satellite navigation signals, providing stable GNSS data output under complex electromagnetic environments.

Key Features

Integrated GNSS Anti-Jamming Terminal

The integrated design combines GNSS receiving, signal processing, and communication functions into one compact terminal, reducing system integration complexity.

8-Channel Anti-Jamming Architecture

The 8-channel structure improves GNSS signal processing capability and supports reliable navigation performance in complex electromagnetic interference environments.

BDS/GPS GNSS Signal Support

Supports BDS B1 and GPS L1 satellite navigation signals for positioning applications.

Flexible Communication Interface

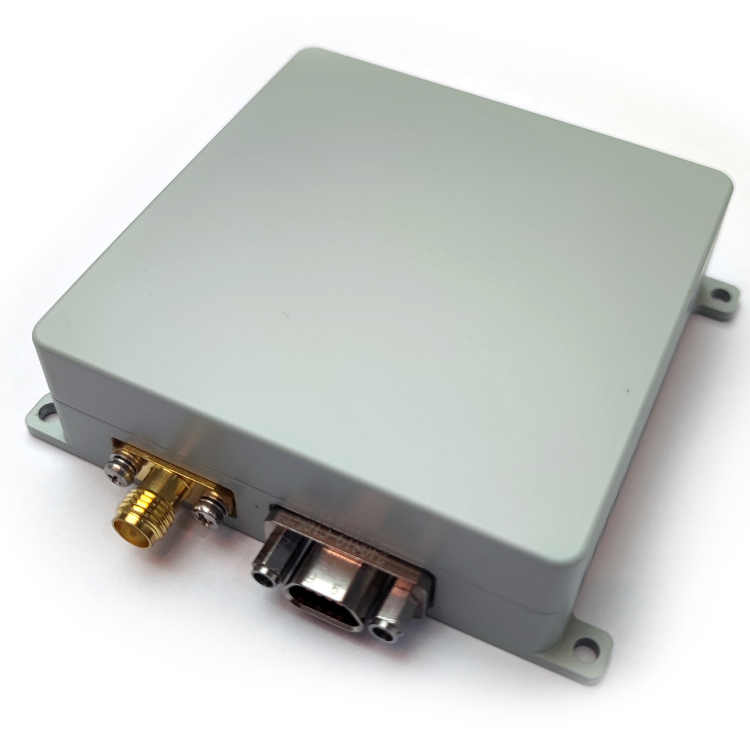

Provides TTL serial communication and SMA RF interface for connection with flight controllers, navigation systems, and industrial platforms.

Compact Industrial Structure

The compact enclosure design with M3 mounting holes allows flexible installation in UAVs, unmanned vehicles, and industrial equipment.

Technical Specifications

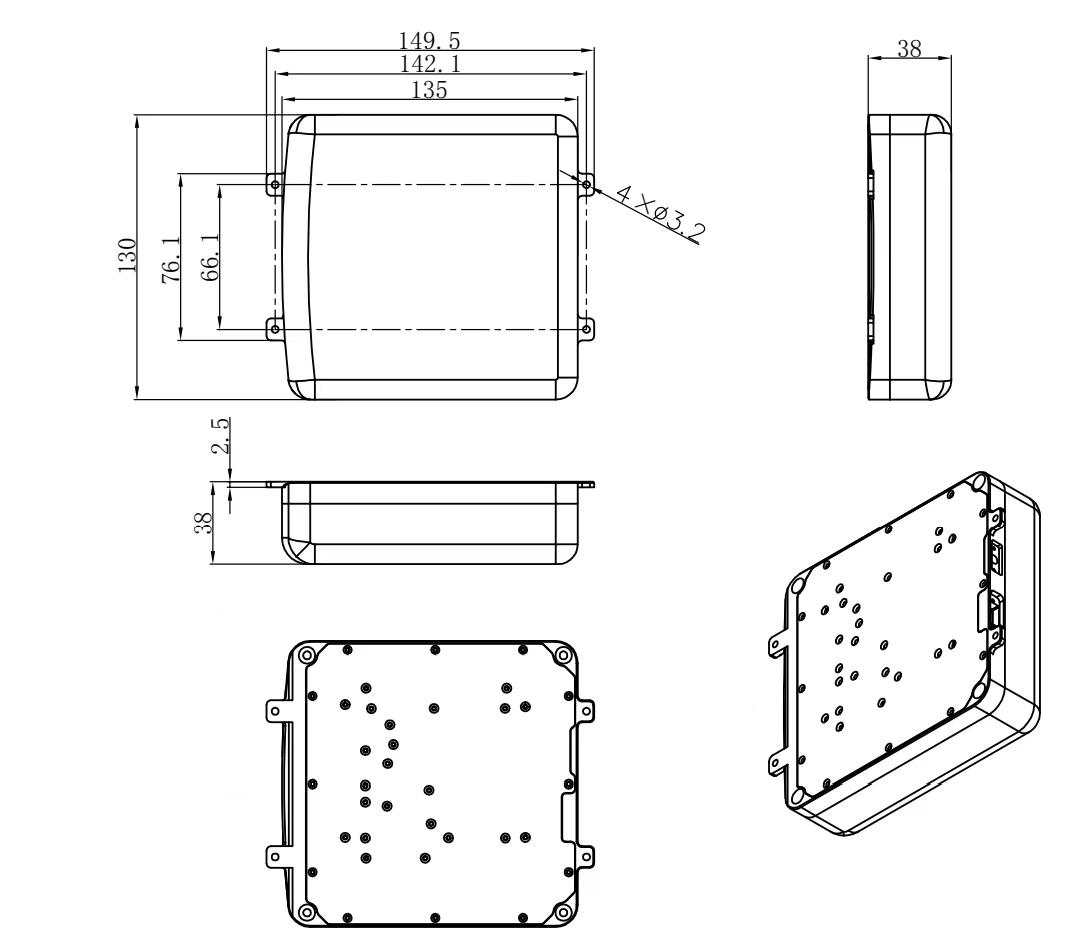

Dimension Drawing

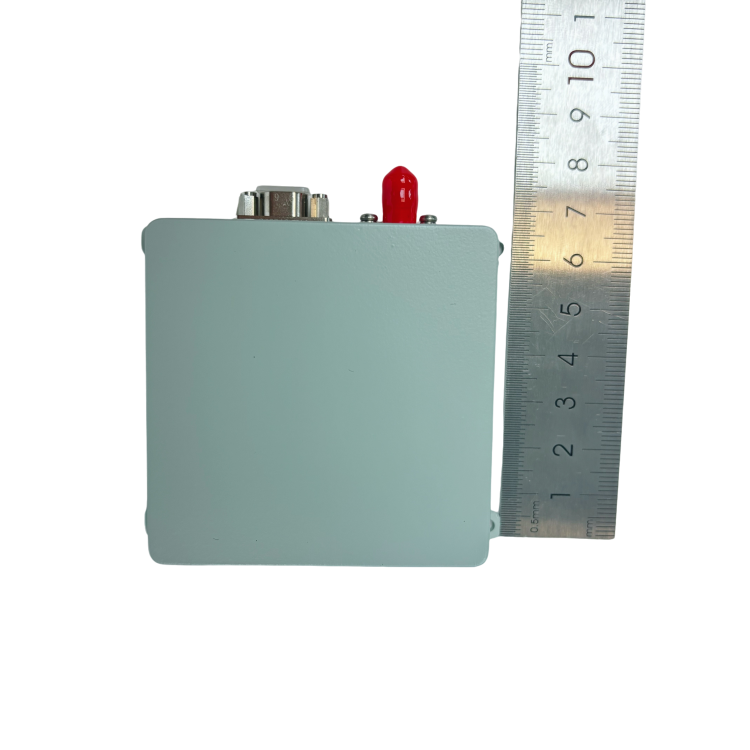

The TX-007Pro-8CH-DF-WG-DR features a compact industrial enclosure with dimensions of 130mm × 135mm × 38mm.

The mechanical structure includes M3 mounting holes for flexible installation in UAVs, unmanned vehicles, and industrial navigation equipment.

Applications

• UAV Navigation Systems

• Drone Positioning Applications

• Unmanned Ground Vehicles

• Industrial Autonomous Platforms

• GNSS Navigation Systems

System Integration

The TX-007Pro-8CH-DF-WG-DR supports integration with flight controllers, autonomous control systems, and industrial platforms through TTL serial communication and RF interfaces.

The integrated terminal design combines GNSS receiving, signal processing, and communication functions, helping simplify hardware integration for autonomous navigation systems.

The terminal outputs navigation information through NMEA0183 protocol and supports flexible connection according to different system requirements.

Why Choose TOXU

TOXU provides integrated GNSS and RF hardware solutions, including GNSS terminals, GNSS antennas, RF cable assemblies, and customized positioning solutions.

With professional RF design capability, engineering support, and OEM/ODM customization experience, TOXU supports customers from prototype development to mass production.

Supported by IATF16949 and ISO9001 quality systems, TOXU provides reliable manufacturing control and customized hardware solutions for industrial applications.

FAQ – Frequently Asked Questions

Q1: What is TX-007Pro-8CH-DF-WG-DR?

A1: TX-007Pro-8CH-DF-WG-DR is an integrated 8-channel GNSS anti-jamming terminal designed for UAVs, unmanned vehicles, and industrial autonomous systems.

Q2: Is TX-007Pro a traditional GNSS antenna?

A2: No. TX-007Pro integrates GNSS receiving, signal processing, and communication functions into one terminal solution.

Q3: What GNSS signals are supported?

A3: It supports BDS B1 and GPS L1 satellite navigation signals.

Q4: Can TOXU provide customization?

A4: Yes. TOXU supports OEM/ODM customization including GNSS terminal optimization, antenna solutions, and system integration services.
