Overview

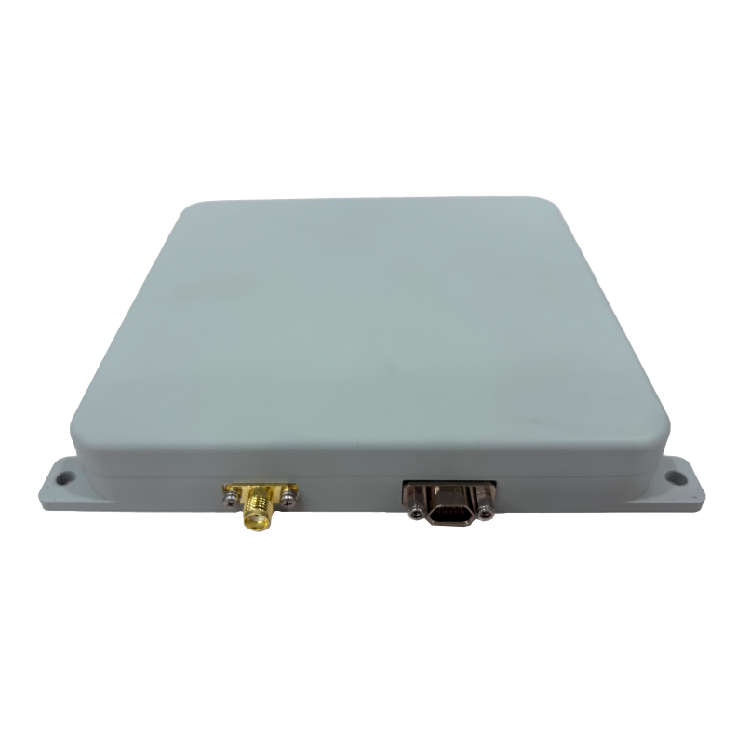

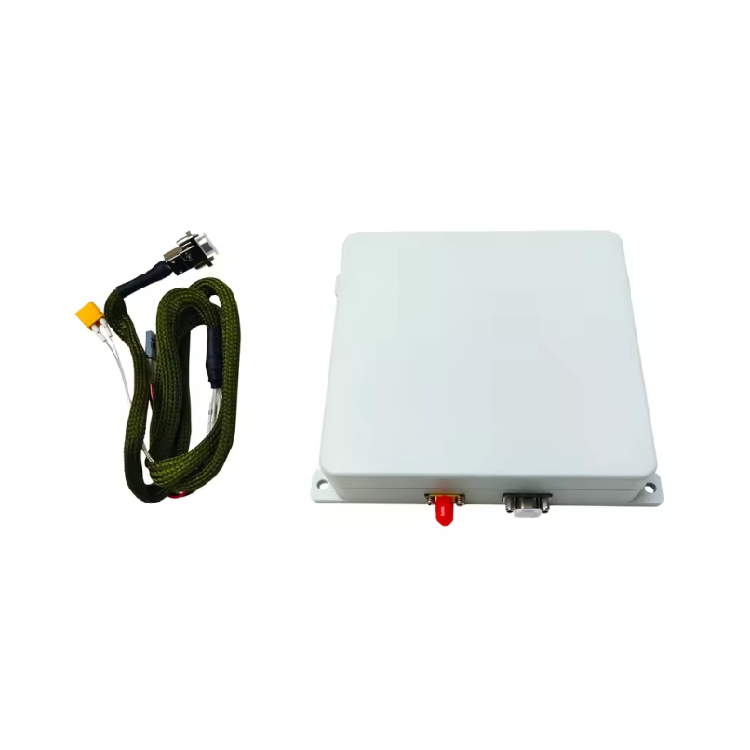

The TOXU TX2501-AJS-4CH-DPA is a compact GNSS anti-jamming and anti-spoofing terminal designed for UAVs, unmanned vehicles, and industrial navigation applications.

The terminal integrates antenna array, anti-jamming components, and satellite navigation receiver functions into one compact structure, helping improve GNSS reliability under complex electromagnetic environments.

TX2501-AJS-4CH-DPA supports BDS B1i and GPS L1 dual-frequency satellite navigation signals, provides interference suppression and spoofing protection functions, and supports flexible integration through TTL serial communication and SMA RF interface.

Key Features

4-Channel Anti-Jamming Architecture

The 4-channel design provides GNSS interference suppression capability with single interference C/N ratio ≥105dB and three interference C/N ratio ≥95dB.

Anti-Spoofing Function

The terminal supports spoofing signal suppression including asynchronous spoofing, synchronous spoofing, and forwarding spoofing, helping improve navigation signal reliability.

Dual-Frequency GNSS Signal Support

Supports BDS B1i and GPS L1 satellite navigation signals for reliable positioning applications.

Integrated GNSS Terminal Solution

Combines antenna array, anti-jamming components, and GNSS receiver functions into one compact enclosure, reducing system integration complexity.

Flexible Communication Interfaces

Supports TTL serial communication and SMA RF output interface. Navigation information can be output through standard communication protocols.

Technical Specifications

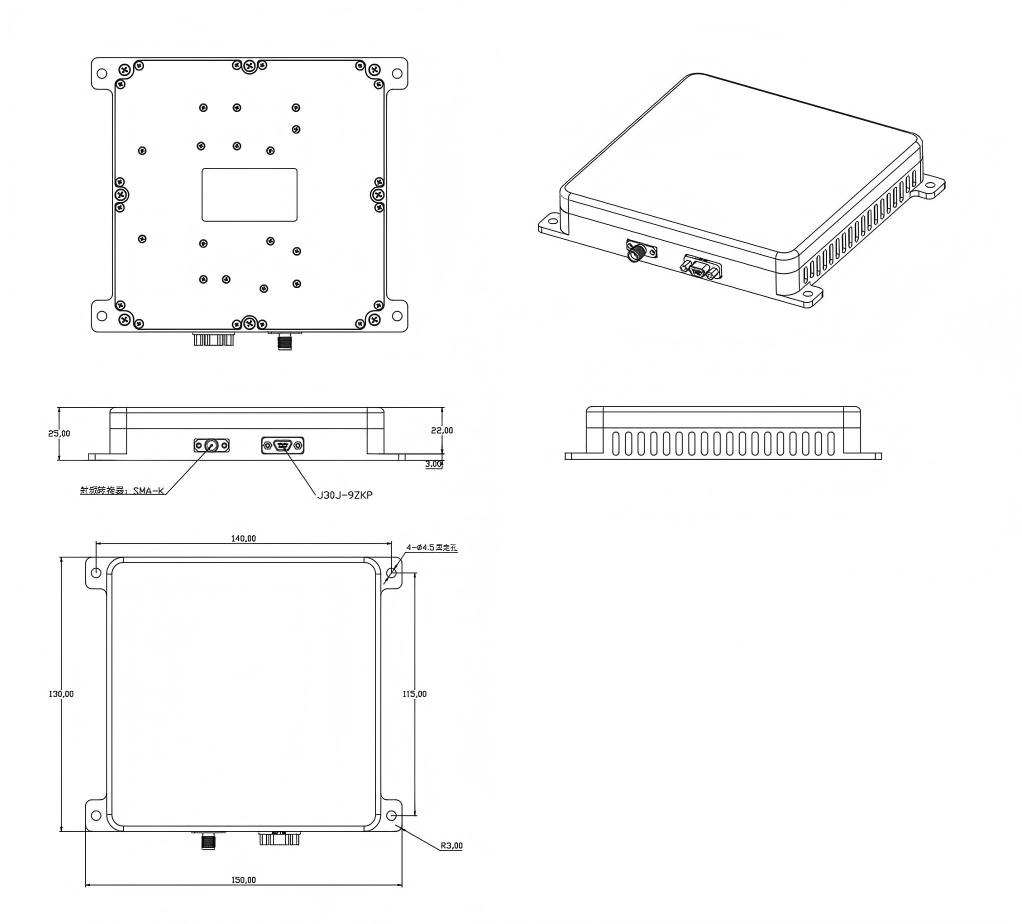

Dimension Drawing

The TX2501-AJS-4CH-DPA features a compact enclosure design with dimensions of 150mm × 130mm × 22mm.

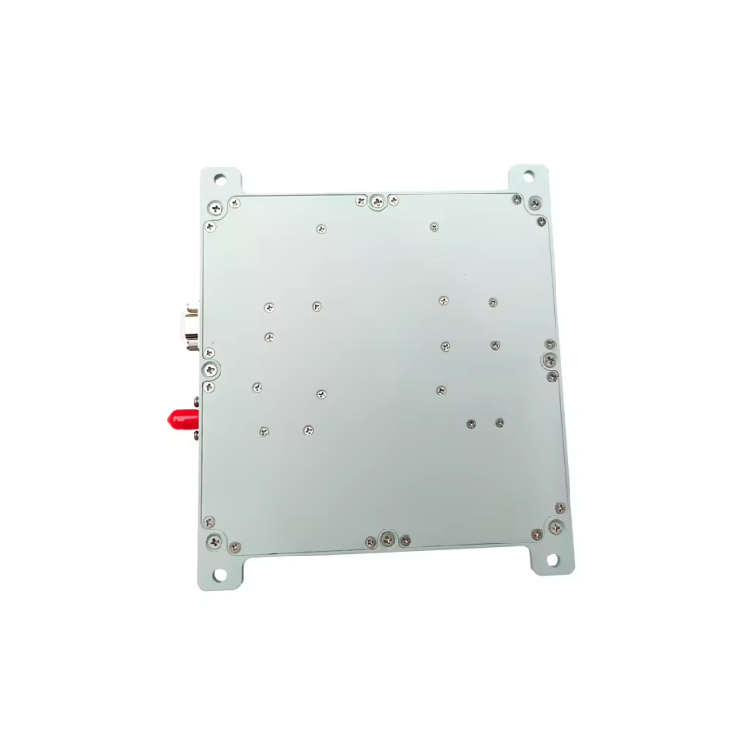

The structure supports M3 screw mounting installation for UAVs, unmanned vehicles, and industrial navigation platforms.

TX2501-AJS-4CH-DPA

Applications

• UAV Navigation Systems

• Unmanned Ground Vehicles

• Unmanned Marine Vehicles

• Industrial Navigation Systems

• Timing Synchronization Applications

System Integration

The TX2501-AJS-4CH-DPA supports integration with flight controllers and autonomous platforms through TTL serial communication.

The terminal can also output anti-jamming RF signals through the SMA interface for connection with compatible positioning equipment.

The product supports flexible integration methods according to different navigation system requirements.

Why Choose TOXU

TOXU provides integrated GNSS and RF hardware solutions including GNSS terminals, anti-jamming solutions, GNSS antennas, and RF cable assemblies.

With professional RF engineering capability, OEM/ODM customization service, and manufacturing support, TOXU helps customers develop products from prototype stage to mass production.

Supported by IATF16949 and ISO9001 quality systems, TOXU provides reliable hardware solutions for industrial positioning and navigation applications.

FAQ – Frequently Asked Questions

Q1: What is TX2501-AJS-4CH-DPA?

A1: TX2501-AJS-4CH-DPA is a 4-channel GNSS anti-jamming and anti-spoofing terminal designed for UAVs, unmanned vehicles, and industrial navigation systems.

Q2: What GNSS signals are supported?

A2: It supports BDS B1i and GPS L1 satellite navigation signals.

Q3: Does it support anti-spoofing?

A3: Yes. The terminal supports spoofing signal suppression to improve GNSS navigation reliability.

Q4: Can TOXU provide customization?

A4: Yes. TOXU supports OEM/ODM customization including GNSS terminal optimization, hardware integration, and customized solutions.
