No.1 ABS Waterproof Material Reinforce Solder Joints Against Vibration

No.2 Oxygen-free Pure Copper Wire Core

High Conductivity

No.3 Pure Copper Gold-Plated Interlace Resistant To Oxidation And Stable Transmission

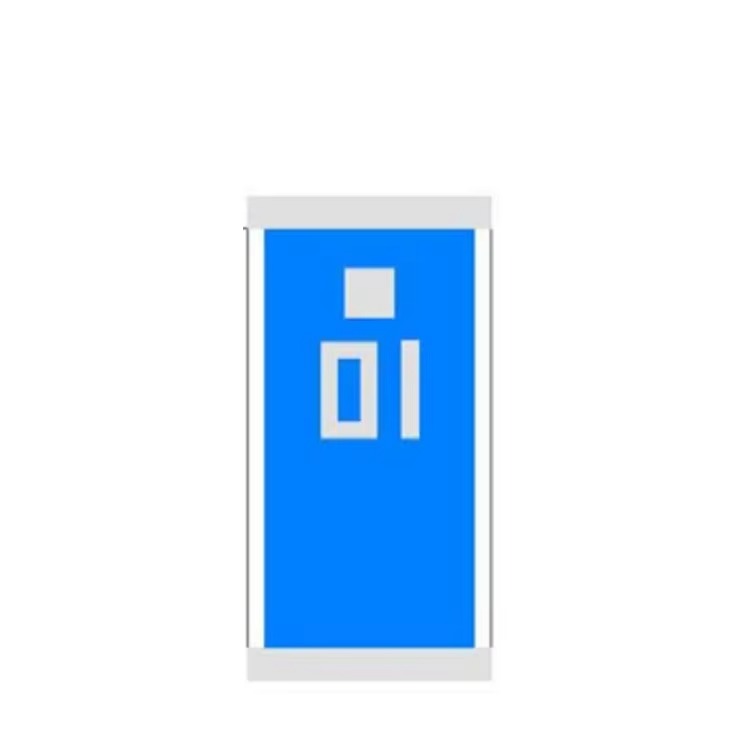

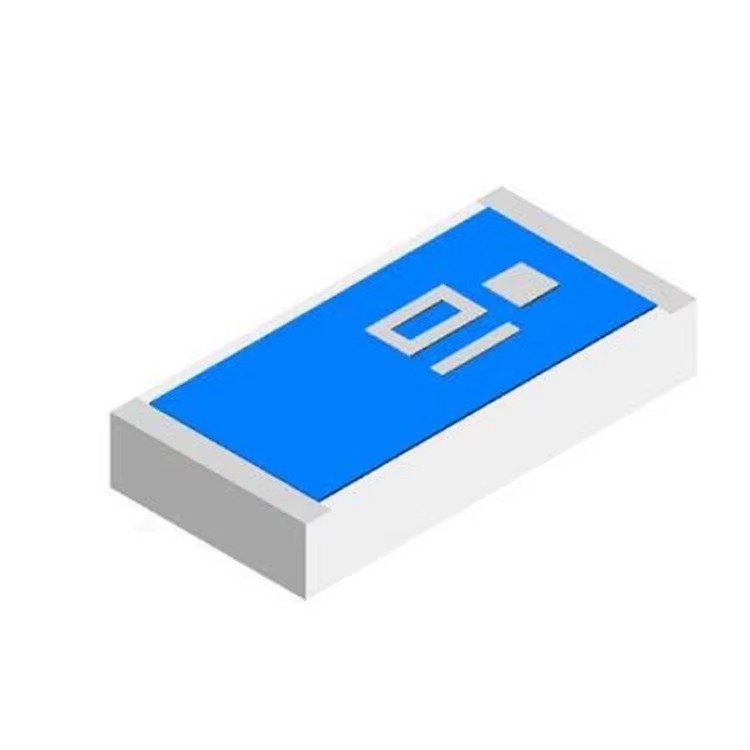

Type: Bluetooth chip antenna

Working Frequency Range: 2.4GHz~2.4835GHz (Note-1)

Gain: 2 dBi (Typical)

VSWR: 2.0 max

Polarization: Linear

Azimuth Beamwidth: Omni-directional

Impedance: 50ohm

Applications: ISM Band 2.4GHz applications

Features

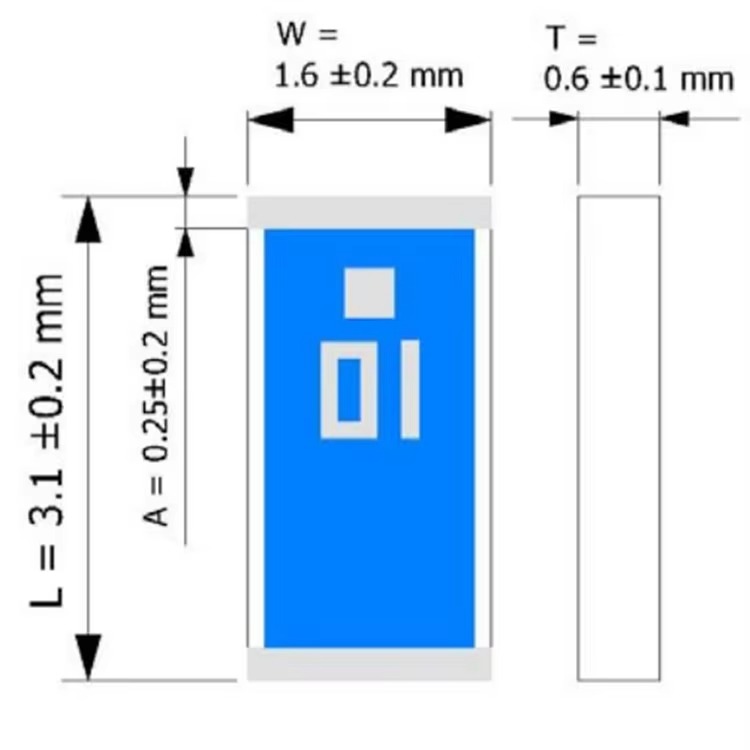

1. Surface Mounted Devices with a small dimension of 3.2 X 1.6 X 0.6 mm3 meet future miniaturization trend.

2. LTCC process.

3. High stability in Temperature / Humidity Change.

4. Superb performance to place on the middle of PCB edge and excellent peak/ average gain observed by field test application.
