Product features: 1.Product master chip: UBX-G7020-KT 2.Product dimensions: 38 x 49 x 16 mm USB cable length: 2 m 3.Built-in LNA signal amplifier 4.Built-in Flash, free to configure product parameters 5.Industry standard of 25 x 25 x 4mm high sensitivity ceramic antenna 6.Built-in TCXO crystal and supercapacitor for faster hot start 7.1-10Hz Location Update Rate

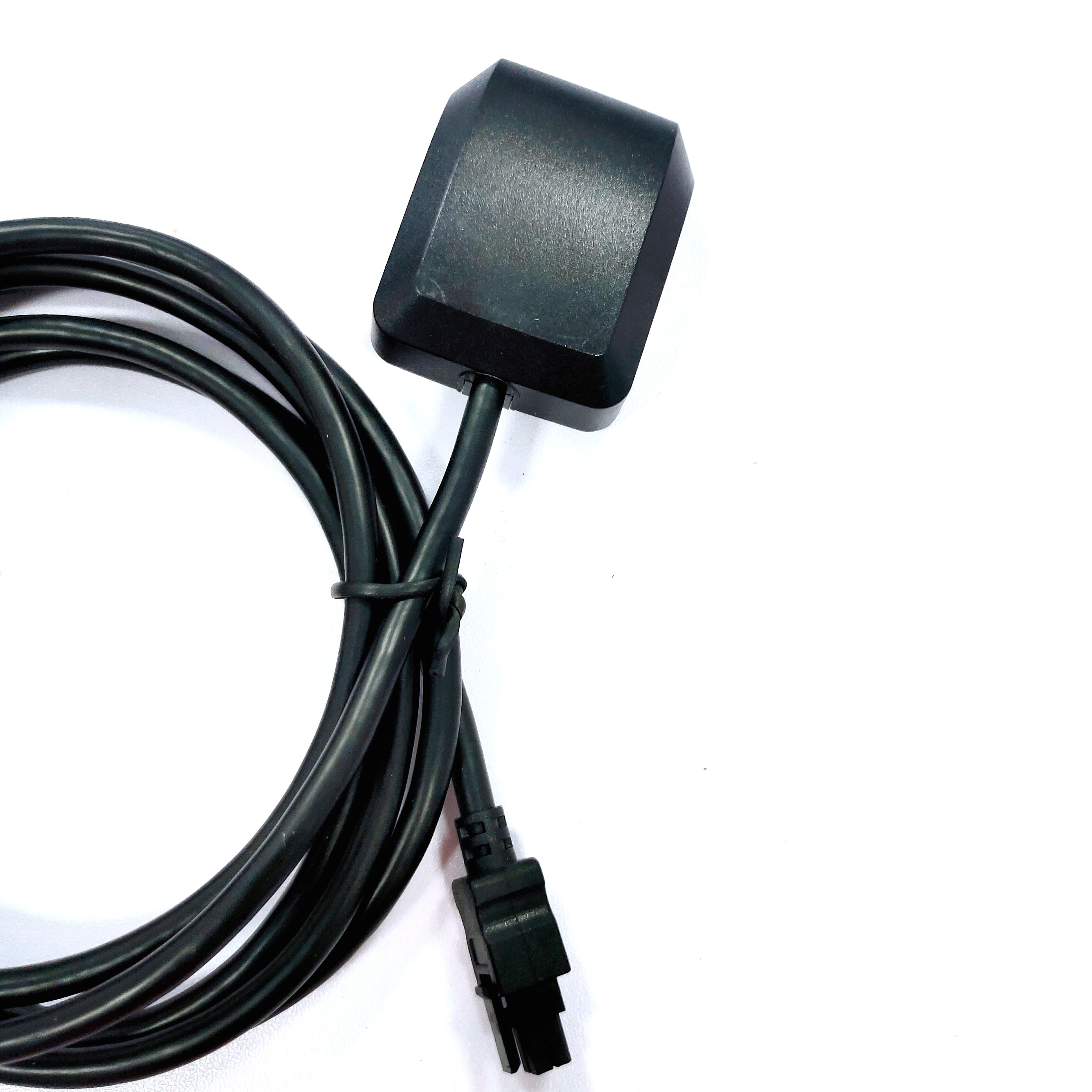

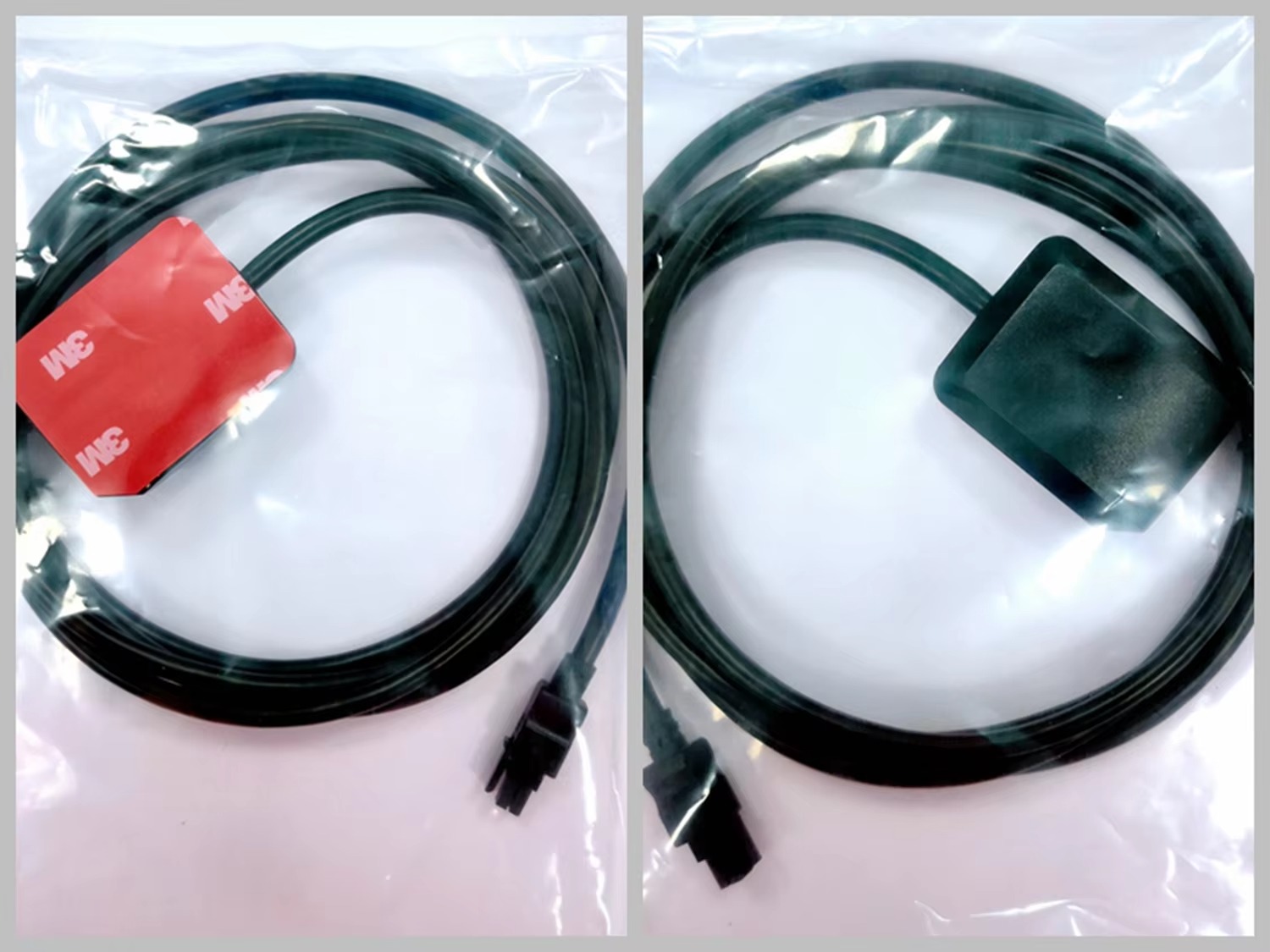

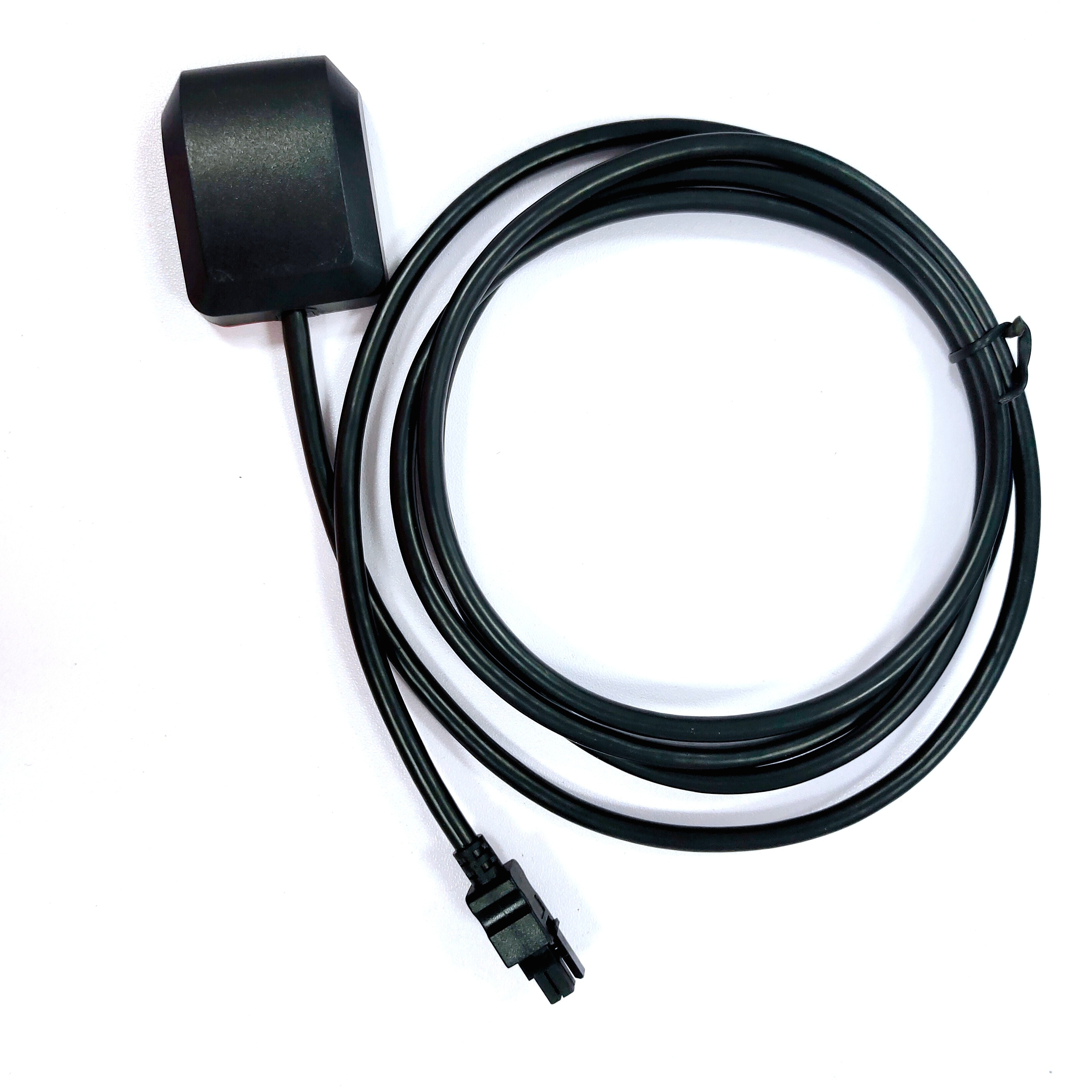

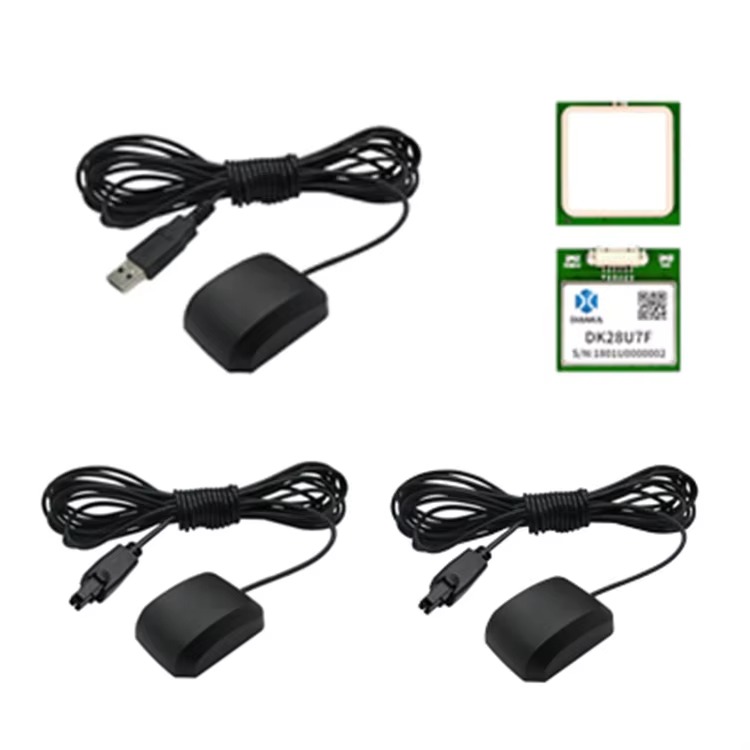

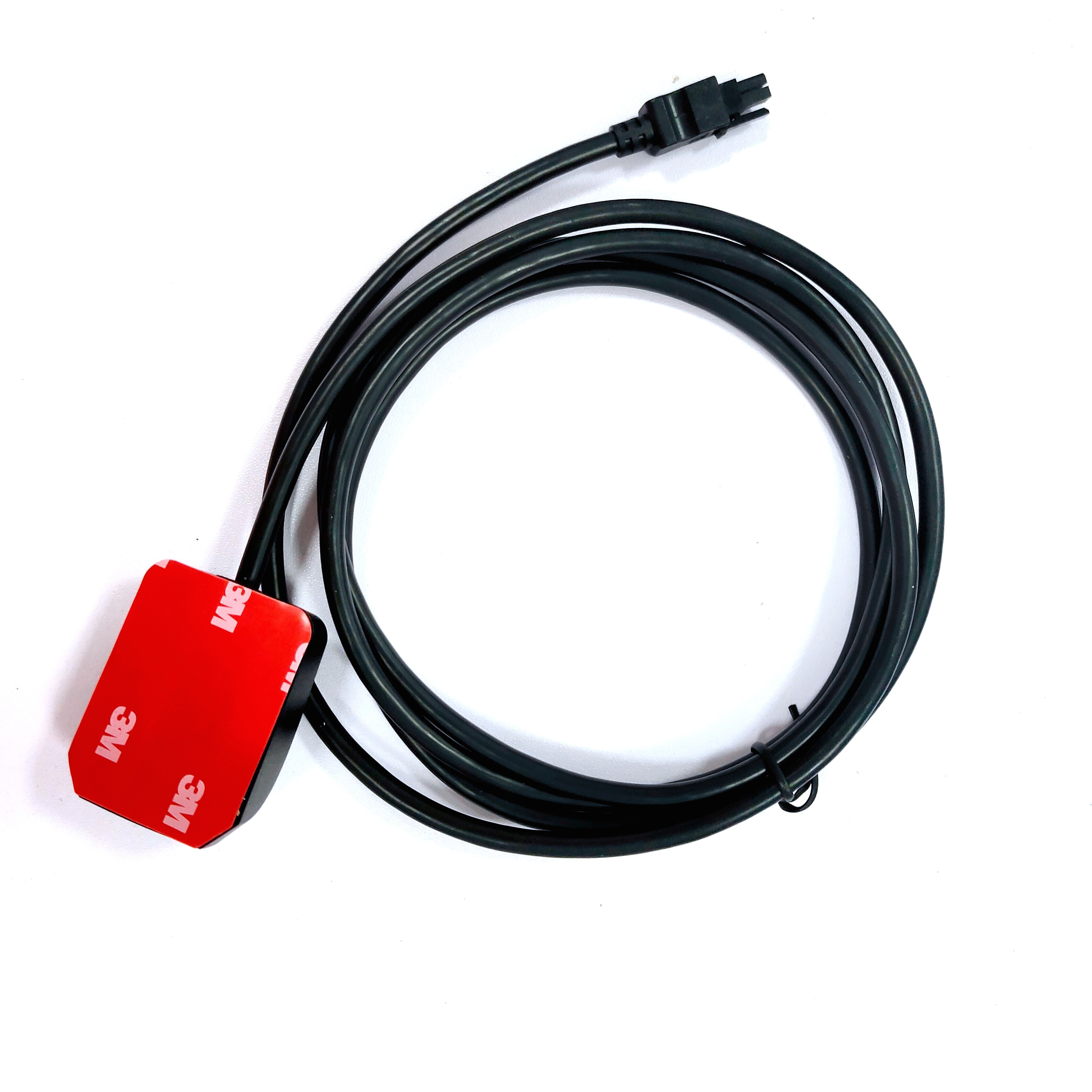

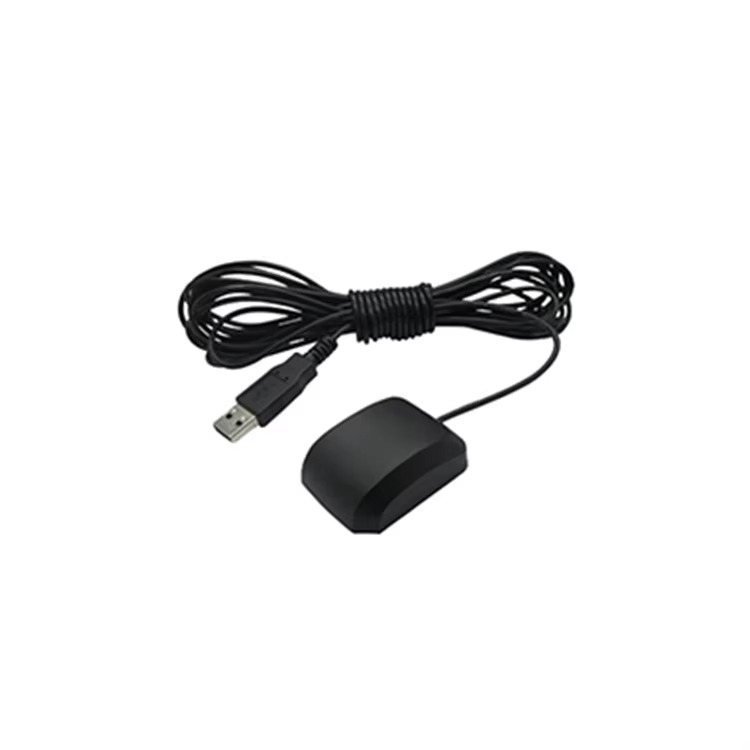

Product description: Ublox GPS chip is used in the module, which is capable of receiving satellite signals in 56 channels; has low power consumption; and is a highly sensitive G-MOUSE, that is capable of locating weak signals in cities, canyons, under viaducts, and anywhere inside the car fast and accurately, enabling the wide application of the module in various products such as on-board monitoring, bus stop announcement, on-board navigation, shipborne navigation, laptop navigation products.
| Product performance |
| Chip | UBX-G7020-KT |
| Frequency | L1, 1575.42MHz/L2, 1561.10MHZ/L3, 1602.00MHZ |
| Baud rate | 4800, 9600, 19200, 38400, 57600, 115200bps |
| reception channel | 56 CH |
| Sensitivity | Track:-162dBm Capture:-160dBm Cold start-148dBm |
| Cold start | An average of 29 S |
| Warm start | An average of 3 S |
| Hot start | An average of 1 S |
| Accuracy | Horizontal position accuracy < 2.5M SBAS < 2.0M Timing accuracy: 30 ns |
| Maximum height | 50000 M |
| Maximum | 500 m/s |
| Maximum Acceleration | 4G |
| Update frequency | 1-10 Hz |
| Physical characteristics |
| Overall dimension | 38 x 49 x 16 mm USB cable length: 2 m |
| Working conditions |
| Working temperature | -40℃ to 85℃ |
| Storage temperature | -40℃ to 85℃ |
