| Product variants | ZED-F9H |
| GNSS features |
| GNSS | BeiDou, Galileo, GLONASS, GPS / QZSS |
| Number of concurrent GNSS | 4 |
| GNSS bands | B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF |
| Oscillators | TCXO |
| Interfaces |
| UART x 2 | √ |
| USB | √ |
| SPI | √ |
| I2C | √ |
| Electrical data |
| Maximum supply [V] | 3.6 |
| Minimum supply [V] | 2.7 |
| Environmental data,quality & reliability |
| Maximum temperature [°C] | 85 |
| Minimum temperature [°C] | -40 |
| Features |
| Active antenna / LNA control | √ |
| Active antenna / LNA supply | √ |
| Additional SAW | √ |
| Antenna open circuit detection pin | √ |
| Antenna short circuit detect / protect pin | √ |
| Data logging | √ |
| Jamming detection | √ |
| Programmable flash memory | √ |
| RTC crystal | √ |
| Secure boot and updates | √ |
| Time pulse output | √ |
| General features |
| Antennas | Pin (active) for external antenna |
| Dimensions |
| Dimensions [mm] | 17.0 x 22.0 x 2.4 |

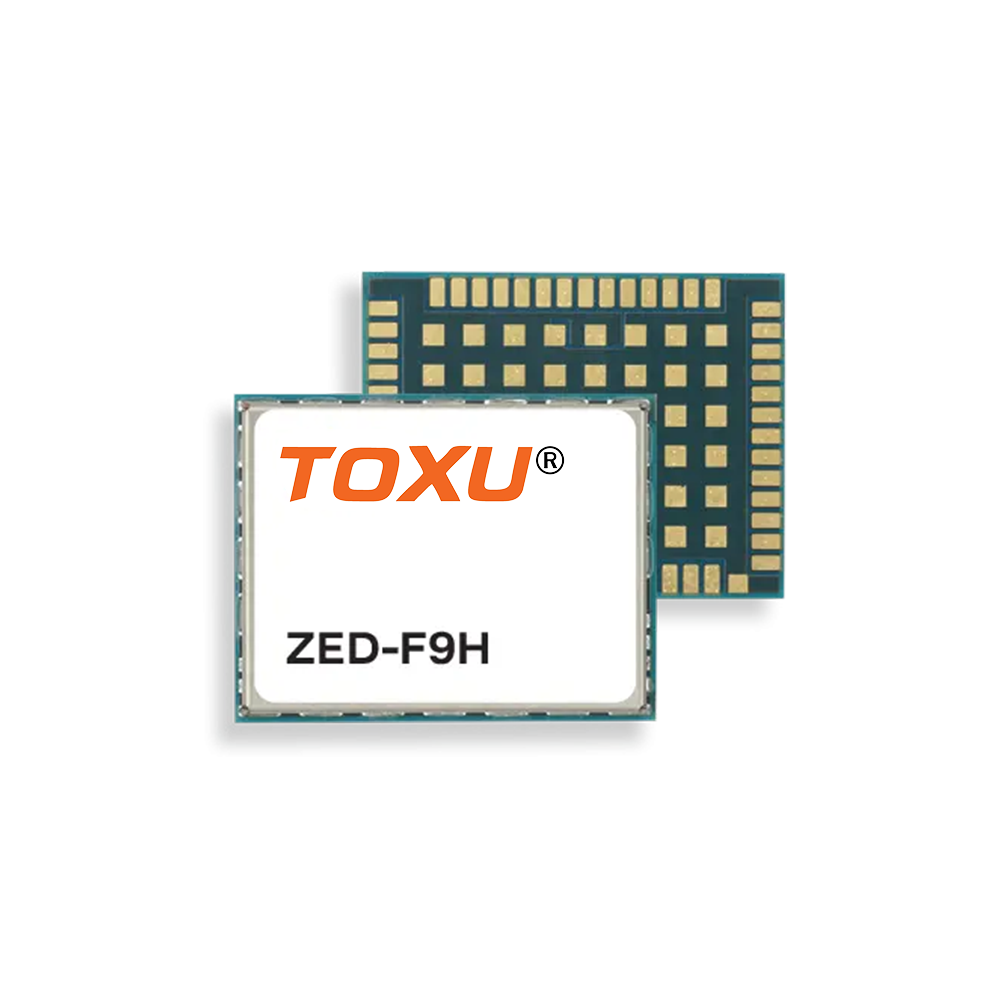

The ZED-F9H module is designed to provide the best possible heading information to applications where precise attitude is of greatest importance.
The ZED-F9H acts as an accompanying module, and requires a ZED-F9P module to be mounted on the same vehicle. In this setup, ZED-F9P provides the precise GNSS position, and at the same time acts as a moving base to the ZED-F9H module, which in turn outputs the precise attitude information.
As the heading information is based on GNSS it does not require pre-calibration, thus ensuring easy production, integration and operation. The precise heading information is always available, even in stand-still situations.
ZED-F9H is designed to lower the system cost for a heading application and comes with minimal e-BOM. Thanks to its small package size, light weight, and low power consumption it is well-suited for mass market adoption.
u-blox modules are manufactured in ISO/TS 16949 certified sites and are fully tested on a system level. Qualification tests are performed as stipulated in the ISO16750 standard: “Road vehicles – Environmental conditions and testing for electrical and electronic equipment”.
