| Product variants | UBX-M10050-KB |
| GNSS features |
| GNSS | BeiDou, Galileo, GLONASS, GPS / QZSS |
| Number of concurrent GNSS | 4 |
| Oscillators | Crystal supported, TCXO supported |
| Interfaces |
| UART | √ |
| SPI | √ |
| I2C | √ |
| Electrical data |
| Maximum supply [V] | 1.8 |
| Minimum supply [V] | 1 |
| Environmental data,quality & reliability |
| Maximum temperature [°C] | 85 |
| Minimum temperature [°C] | -40 |
| Features |
| Antenna supervisor | √ |
| RTC crystal | √ |
| Time pulse output | √ |
| Dimensions |
| Dimensions [mm] | 4.0 x 4.0 x 0.55 |

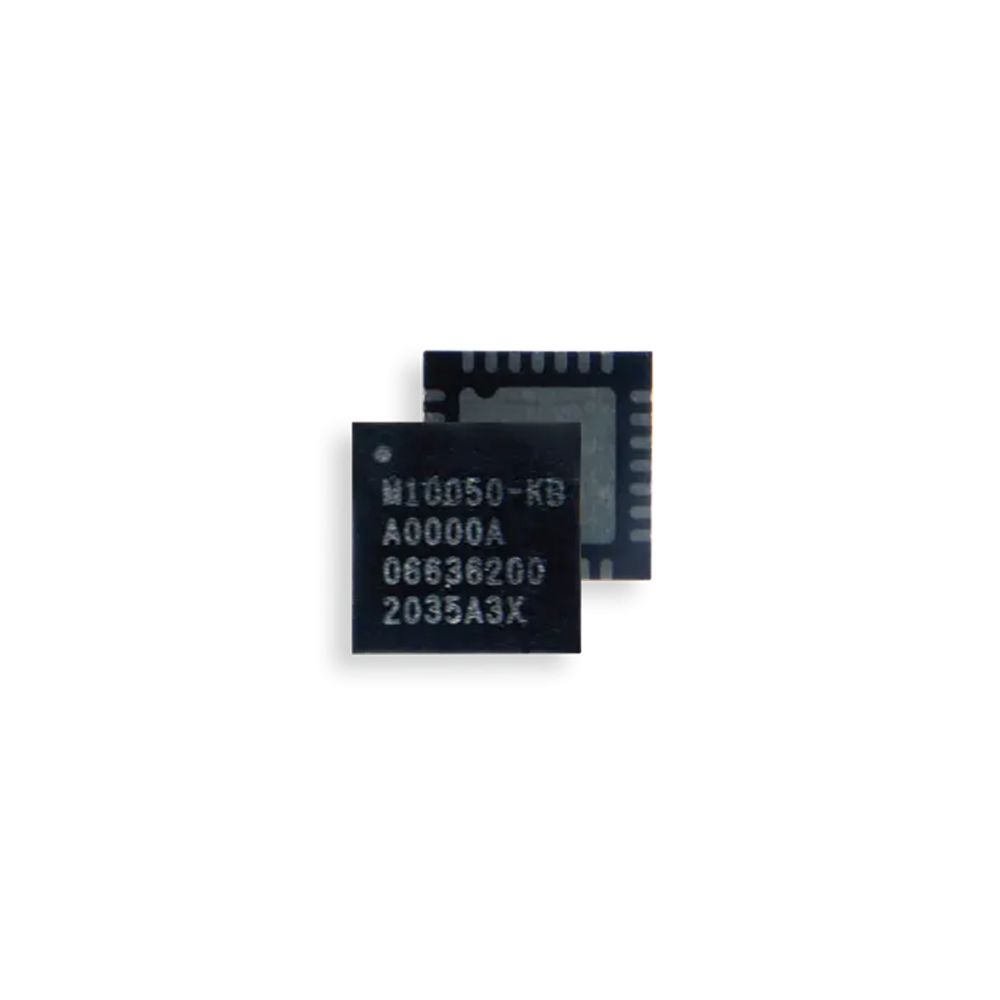

The UBX-M10050-KB chip, which is part of the u-blox M10 standard precision GNSS platform, provides exceptional sensitivity and acquisition times for all L1 GNSS systems.
The extremely low power consumption of <15 mW in continuous tracking mode allows great power autonomy for all battery-operated devices, such as asset trackers, without compromising on GNSS performance.
UBX-M10050-KB supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. u-blox Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy by up to 25% with small antennas or in a non-line-of-sight scenario.
UBX-M10050-KB detects jamming and spoofing events and reports them to the host, so that the system can react to such events. Advanced filtering algorithms mitigate the impact of RF interference and jamming, thus enabling the product to operate as intended.
UBX-M10050-KB chips are qualified by applying AEC-Q100 stress conditions and are manufactured in IATF 16949 certified sites.
