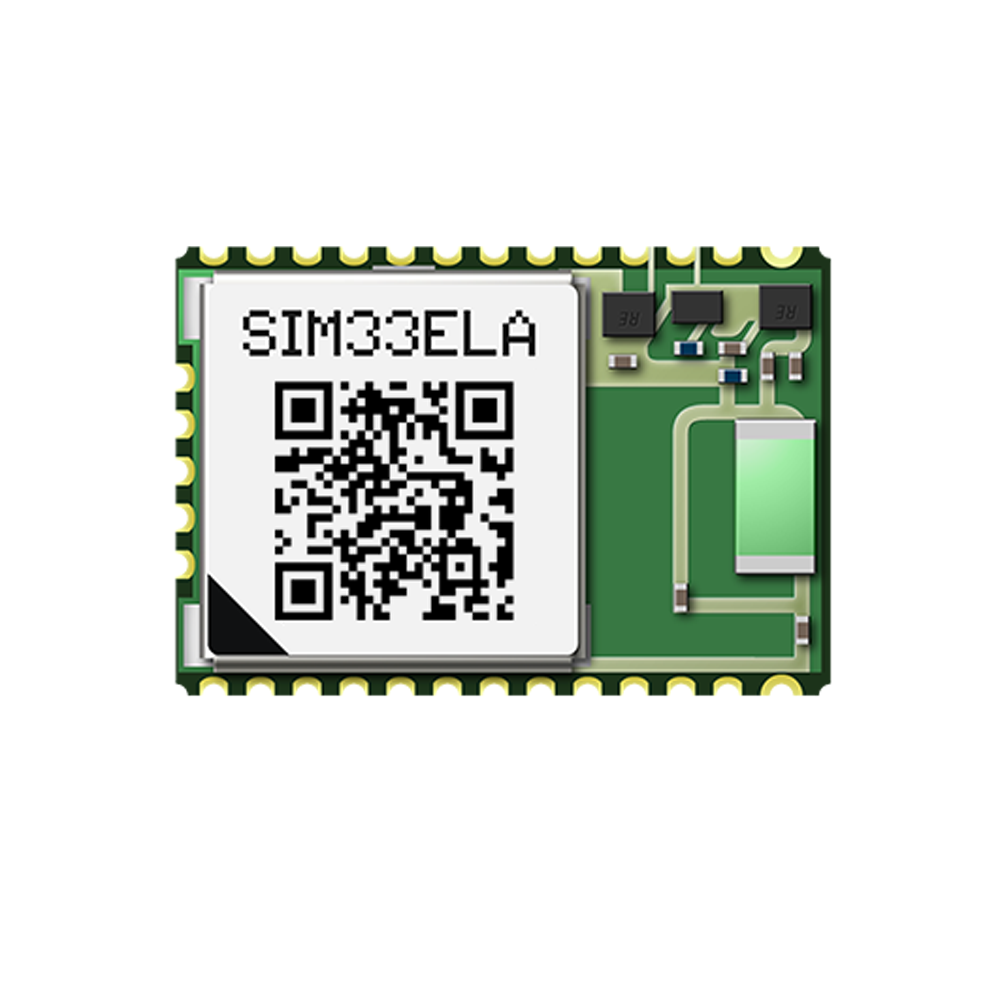

SIMCom presents a high performance GPS module accompany with GNSS antenna-SIM33ELA. This is a standalone GNSS module embedded a linear antenna . Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is very easy to embed into customer's application.

Mechanical data

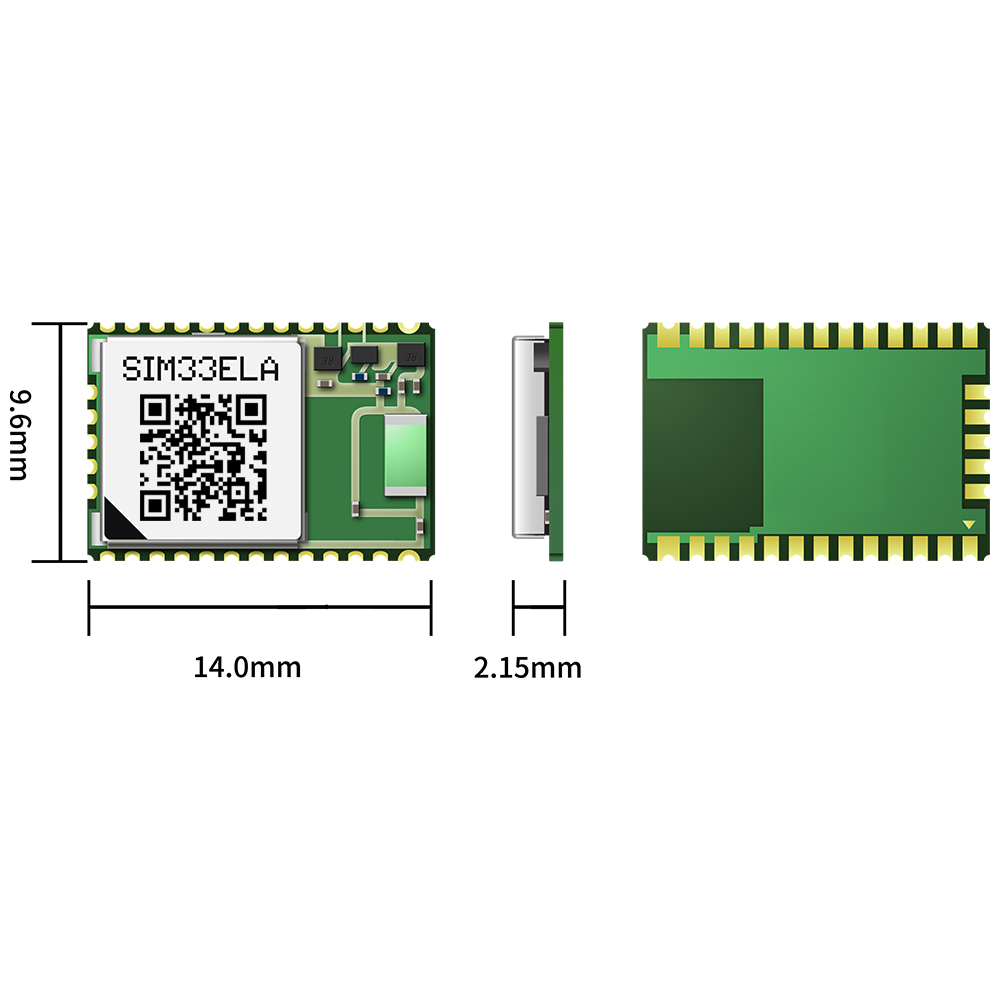

•Dimensions: 14*9.6*2.15mm

•Weight: 0.5g

Features

•Support GPS/GLONASS/Galileo/QZSS

•Support EASYTM self-generated orbit prediction

•Support EPOTM orbit prediction

•Support AGPS

•Support SBAS ranging (WAAS, EGNOS, GAGAN,MSAS)

•Support Jamming Removing

•Low-noise amplifier has been integrated

Interfaces

•Serial interfaces UART

•Digital I/O

PPS

3D-FIX

FORCE -ON

•Protocols

NMEA

PMTK

Performance data

•Receiver type 33tracking/99 acquisitionchannel GNSS receiver

•Max. update rate 10Hz

•Sensitivity1

Tracking: -165 dBm

Reacquisition: -160 dBm

Cold starts: -147 dBm

•Time-To-First-Fix2

Cold starts: 28 s (typical)

Warm starts: 26s

Hot starts: <1s

EPO Assist: 13s（CTTFF)

• Accuracy

Automatic Position3: 2.5m CEP

Speed4: 0.1m/s

•Operation temperature: -40℃~+85 ℃

Support product

•SIM68 EVB KIT with USB V2.0 full speed interface

Electrical data

•Power supply 2.8~4.3V

•Backup power 2.0V~4.3V

•Power consumption2 3.3V（typical）

Acquisition 25mA

Tracking 20mA

Backup 14uA

Certifications

• RoHS\REACH\CE(RED)\Deutsche Telekom

--------------

1.Demonstrated on EVB KIT at library

2.All SV @ –130 dBm

3.50% 24 hr static, -130dBm

4.50%@ 30m/s
