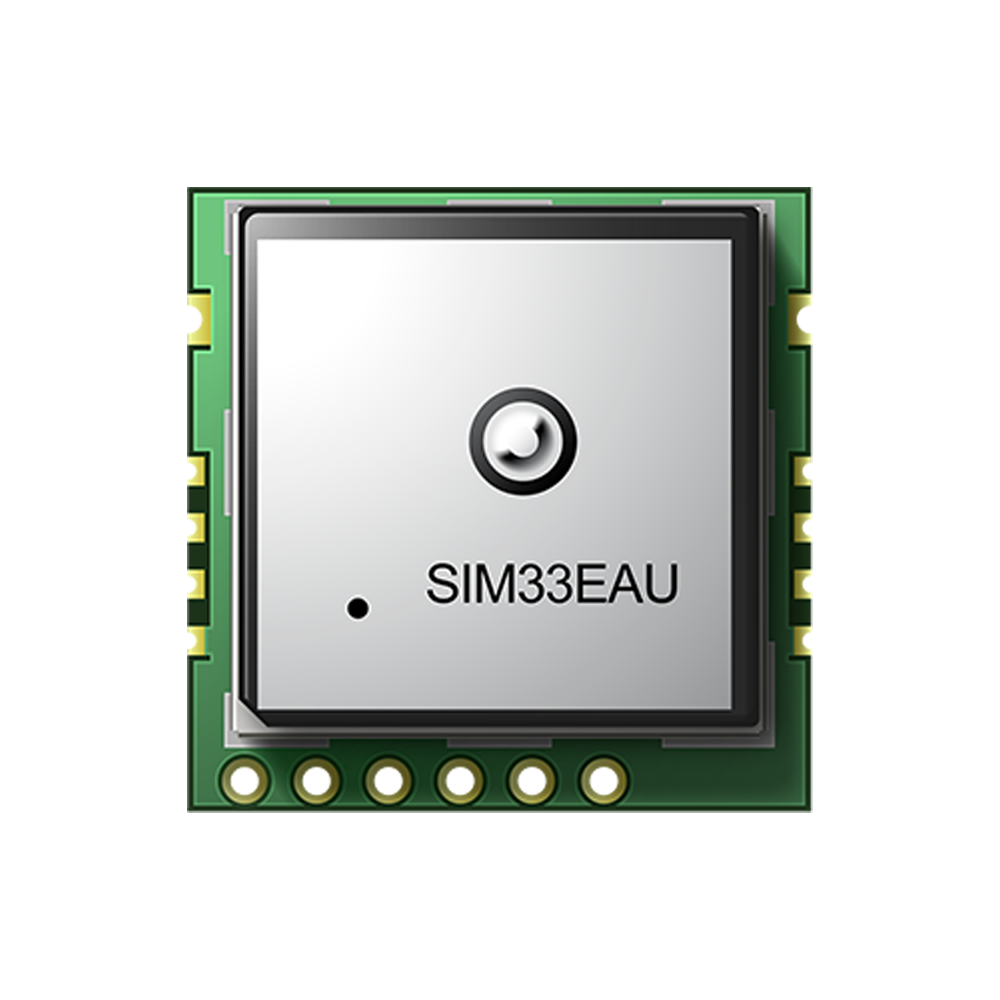

SIMCom presents a high performance GNSS module accompany with GNSS antenna-SIM33EAU. This is a standalone GNSS module include an embedded patch antenna on it. Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to- First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is very easy to

embed into customer’s application.

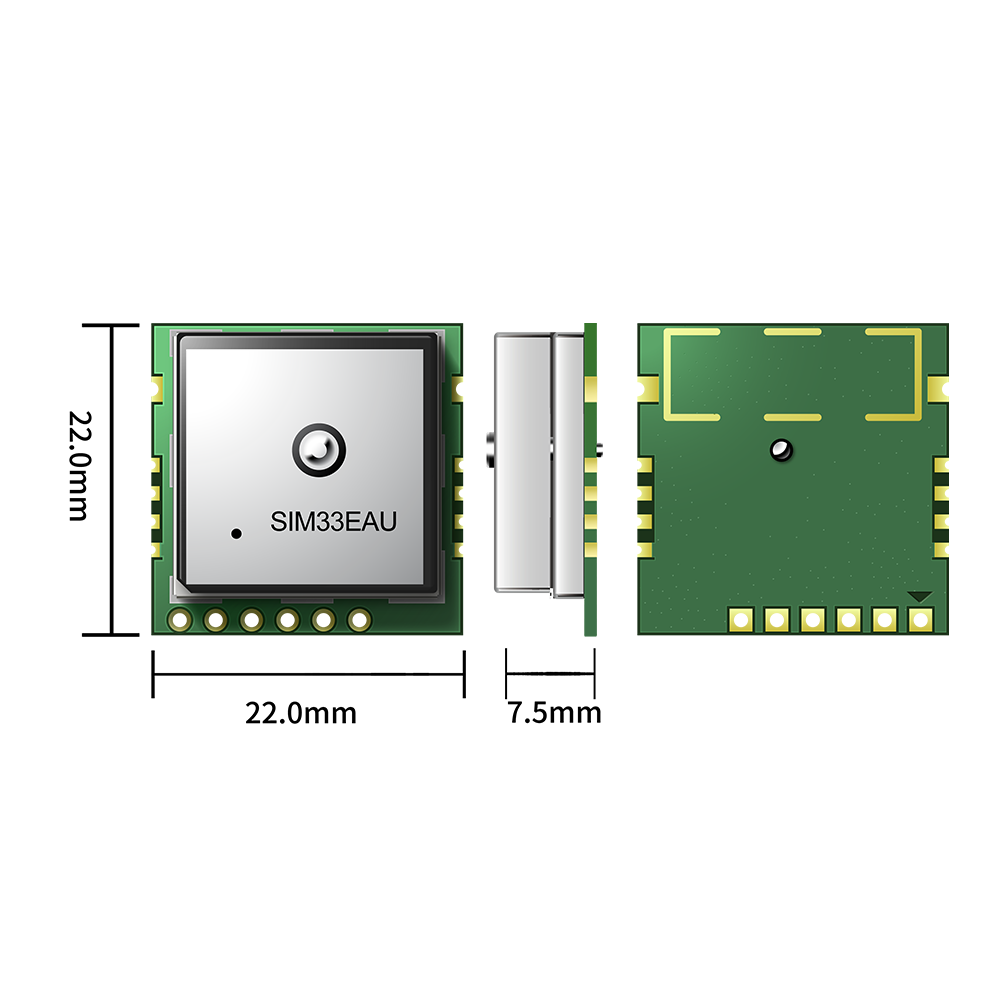

Mechanical data

•Dimensions: 22*22*7.5mm

•Weight: 8.5g

Features

•Support GPS/GLONASS/Galileo/QZSS

•Support EASYTM self-generated orbit prediction

•Support EPOTM orbit prediction

•Support AGPS

•Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)

•Support Jamming Removing

•Low-noise amplifier has been integrated

Interfaces

•Serial interfaces

UART

•Digital I/O

TIMEMARK (PPS)

3D-FIX

•Protocols

NMEA

PMTK

Certifications

• RoHS\REACH\CE(RED)

Support product

•SIM68 EVB KIT with USB V2.0 full speed interface

Performance data

•Receiver type

33 tracking/99 acquisition- channel GNSS receiver

•Max. update rate 10Hz

•Sensitivity1

Tracking:-165 dBm

Cold starts: -146 dBm

Hot starts: -160 dBm

•Time-To-First-Fix2

Cold starts: 31 s (typical)

Warm starts: 26s

Hot starts: <1s

EPO Assist: 13s（CTTFF)

• Accuracy

Automatic Position3: 2.5m CEP

Speed4: 0.1m/s

•Operation temperature: -40℃~+85 ℃

Electrical data

•Power supply 2.8~4.3V

•Backup power: 2.3V~4.3V

•Power consumption2: 3.3V（typical）

Acquisition: 38mA

Tracking: 32mA

Standby 520uA

Backup 14uA
