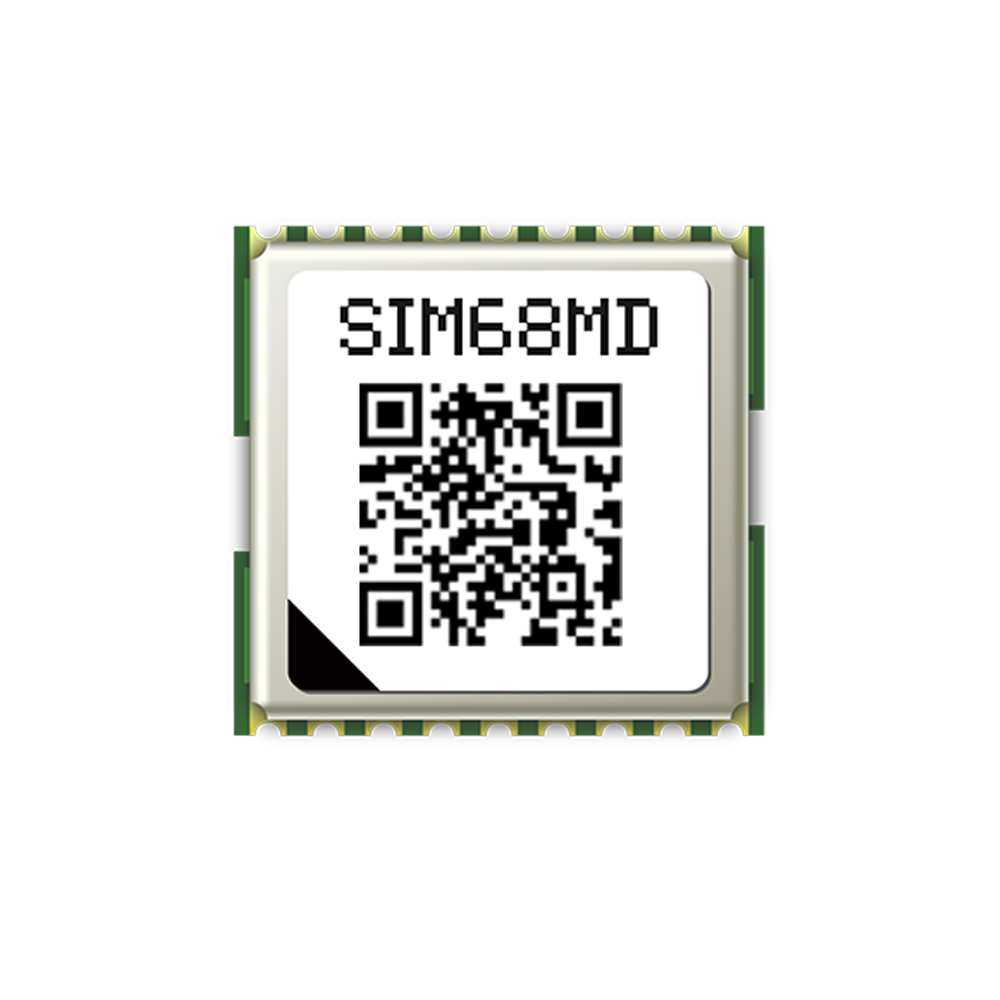

SIM68MD is a high performance and reliable GNSS module. It is a standalone L1 +L5 dual-band GNSS module in a LCC type with AIROHA’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.

SIM68MD provides simultaneous GPS, GLONASS, BeiDou , Galileo and QZSS open service L1 reception capability and GPS, BeiDou, Galileo and QZSS open service L5 reception capability. SIM68MD can acquire and track any mix of multiple satellite signals. Combining advanced AGPS called EASY™ (Embedded Assist System) with proven AlwaysLocate™ technology, SIM68MD achieves the highest performance and fully meets the industrial standard.

L1 and L5 dual-band GNSS receiver

Support EASYTM self-generated orbit prediction

Support EPOTM orbit prediction

Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)

Support Jamming Removing

Low-noise amplifier has been integrated
