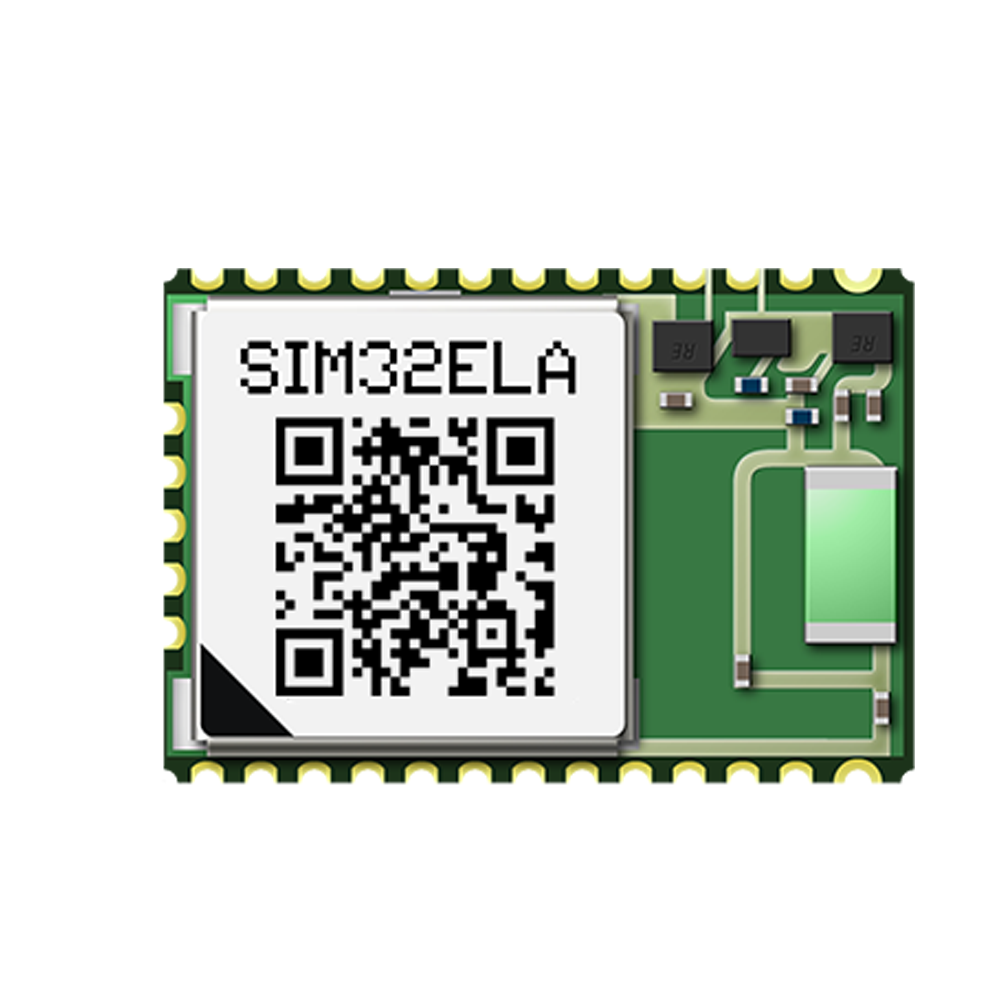

SIM32ELA is a high performance and reliable GNSS module. It is a GNSS module integrated with GPS &GLONASS &BDS & Galileo & QZSS system in a LCC type with AIROHA’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.

SIM32ELA provides simultaneous GPS, GLONASS ,BDS, Galileo and QZSS open service L1 reception capability. With 47 GNSS receiver channels, SIM32ELA can acquire and track any mix of multiple satellite signals. Combining advanced AGPS called EASY™ (Embedded Assist System) with proven AlwaysLocate™ technology, SIM32ELA achieves the highest performance and fully meets the industrial standard.

•Support EASYTM self-generated orbit prediction

•Support EPOTM orbit prediction

•Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)

•Support Jamming Removing

•Low-noise amplifier has been integrated

•Embedded antenna
