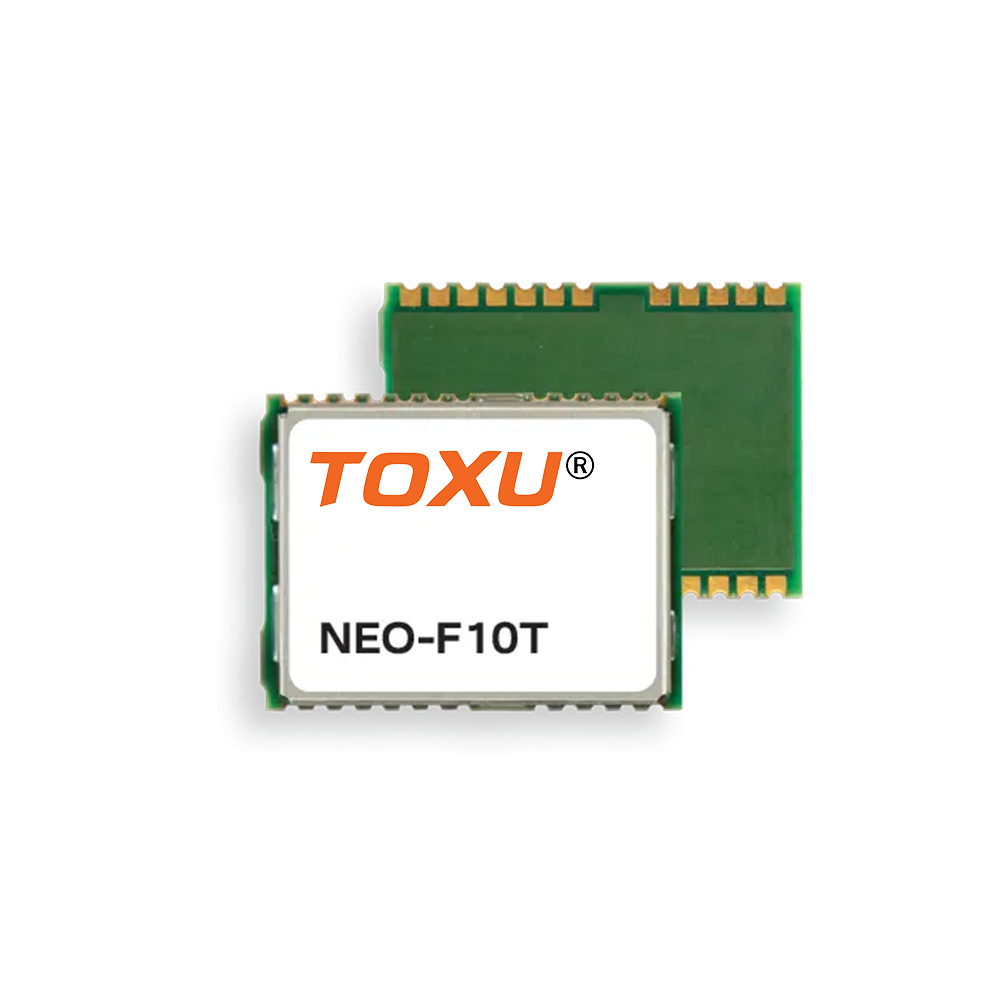

The NEO-F10T timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications.

Thanks to the module's dual-band functionality, it can provide excellent timing accuracy without the need of an external GNSS correction service. Additionally, when within the operational area of a Satellite Based Augmentation System (SBAS), NEO-F10T offers the possibility to improve the timing performance by using the ionospheric corrections provided by the SBAS system.

As NEO-F10T supports all four global satellite constellations, it is ideal for global deployments with single HW SKU. The NEO-F10T module supports the L1/L5/E5a configuration. NEO-F10T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity.

The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation.

NEO-F10T is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale. By significantly reducing the time error of the primary source of cellular network synchronization, the NEOF10T module will help operators maximize the performance of their networks and so optimize the return on their investment in 5G communications. u-blox modules are manufactured in IATF 16949 certified sites and are fully tested on a system level.
