| Product variants | MIA-F10Q |
| GNSS features |
| GNSS | BeiDou, Galileo, GPS / QZSS, NavIC |
| Oscillators | TCXO |
| Interfaces |
| UART | √ |
| I2C | √ |
| Electrical data |
| Maximum supply [V] | 3.6 |
| Minimum supply [V] | 1.76 |
| Environmental data,quality & reliability |
| Maximum temperature [°C] | 85 |
| Minimum temperature [°C] | -40 |
| Features |
| Additional LNA | √ |
| Additional SAW | √ |
| RTC crystal | √ |
| Time pulse output | √ |
| Dimensions |
| Dimensions [mm] | 4.5 x 4.5 x 1.0 |
| Services |
| AssistNow | √ |

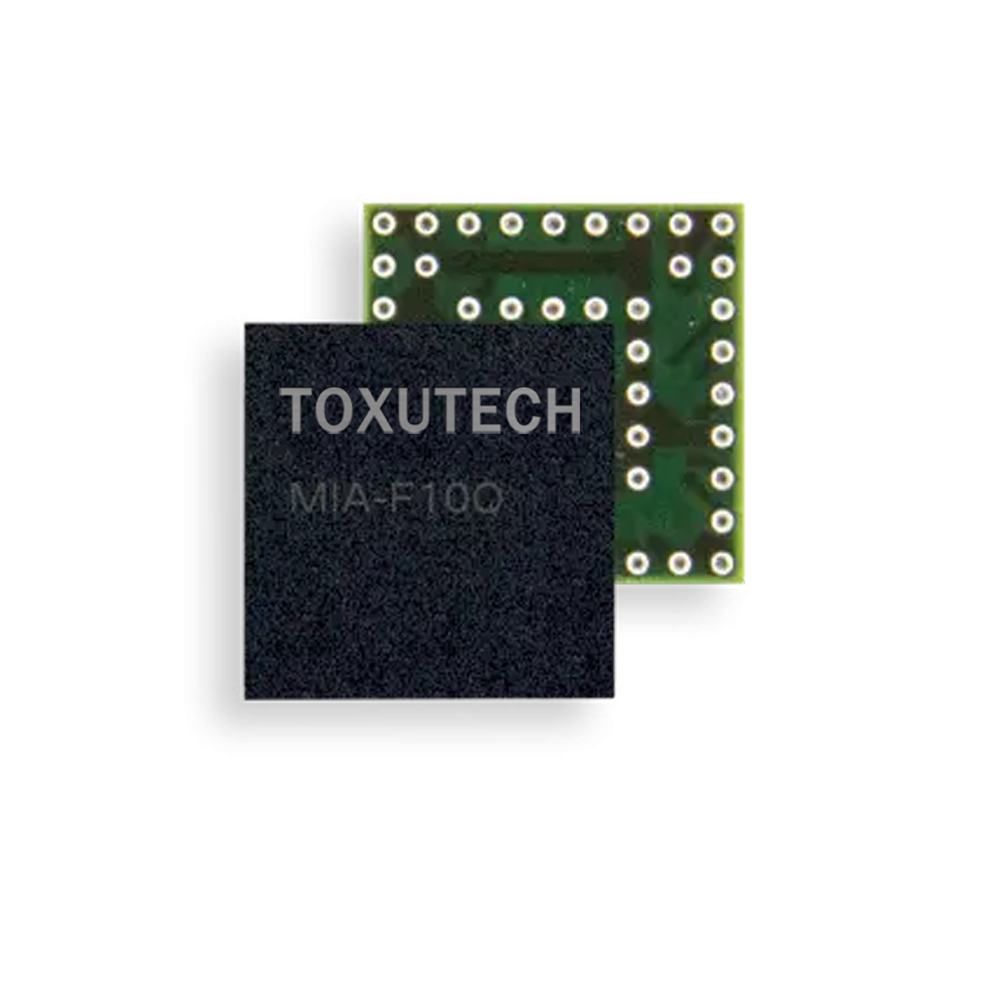

The MIA-F10Q is built on the u-blox F10 dual-band GNSS technology using L1/L5 GNSS bands, which provides solid meter-level position accuracy in urban areas.
With its proprietary dual-band multipath mitigation technology, u-blox F10 uses the best signals from the L1/L5 bands to achieve a significantly better position accuracy in urban environments than with the L1 band only. Applications like vehicle tracking and micromobility benefit significantly.
MIA-F10Q offers a single antenna input. Two SAW filters in series with a LNA in between provide high robustness against RF interference from co-located cellular modems.
The small, highly integrated system-in-package requires only 20 mm2 board space with no need for any external components.
MIA-F10Q is pin-to-pin compatible with previous u-blox generations, which saves designers time and cost when upgrading their designs.
u-blox modules are manufactured in IATF 16949 certified sites and are fully tested on a system level.
