The timing module’s multi-band capability reduces the timing error under clear skies to less than 5 ns without the need for an external GNSS correction service. To further improve accuracy locally, the LEA-F9T features a differential timing mode that exchanges correction data with other neighboring GNSS timing receivers via a communication network.

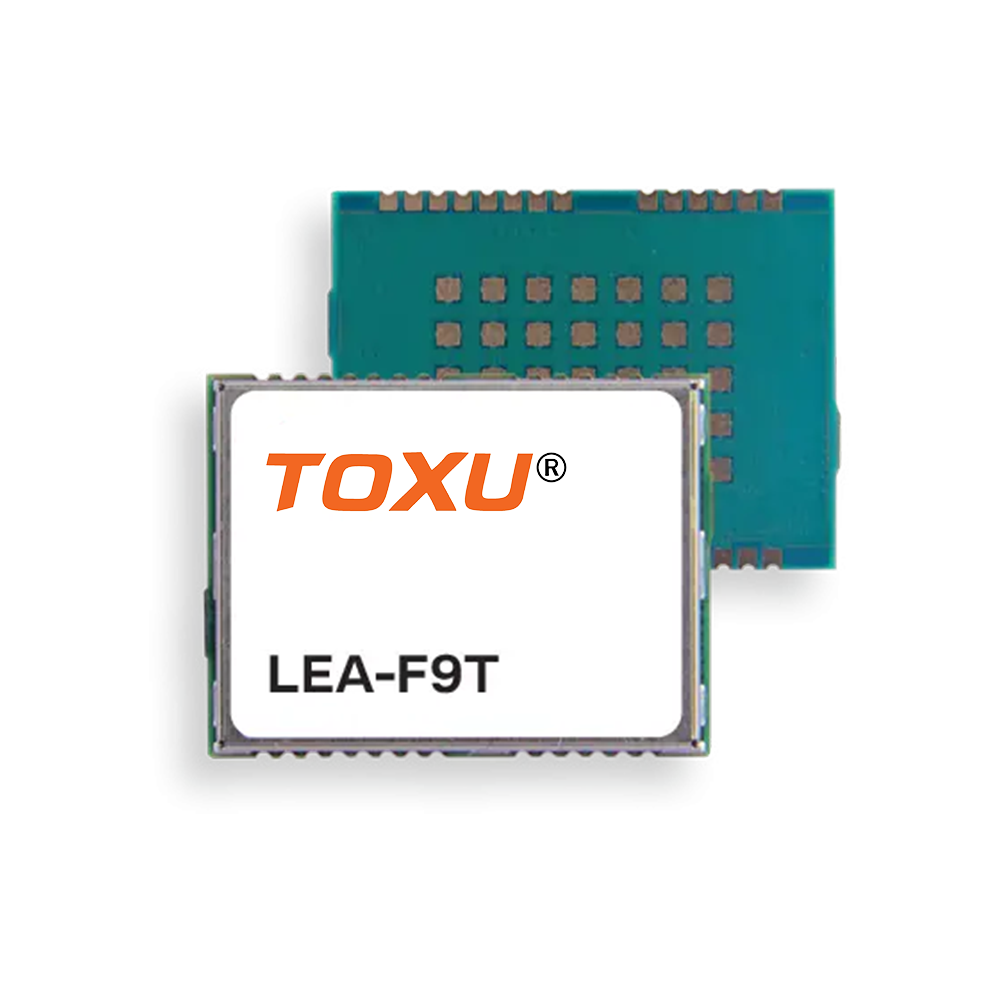

LEA-F9T timing modules are pin-compatible with previous generations allowing ready migration from earlier designs. The extended temperature range and sulfur resistant components provide superior reliability even in compact urban 5G installations.

Multi-band access to all four global satellite constellations with support for L1/L2/E5b and L1/L5/E5a frequency bands strengthens the receiver's capability for delivering more reliable performance.

LEA-F9T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity. The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-of-band attenuation.

u-blox modules use GNSS chips qualified according to AEC-Q100, are manufactured in ISO/TS 16949 certified sites, and are fully tested on a system level. Qualification tests are performed as stipulated in the ISO16750 standard: “Road vehicles – Environmental conditions and testing for electrical and electronic equipment”.
