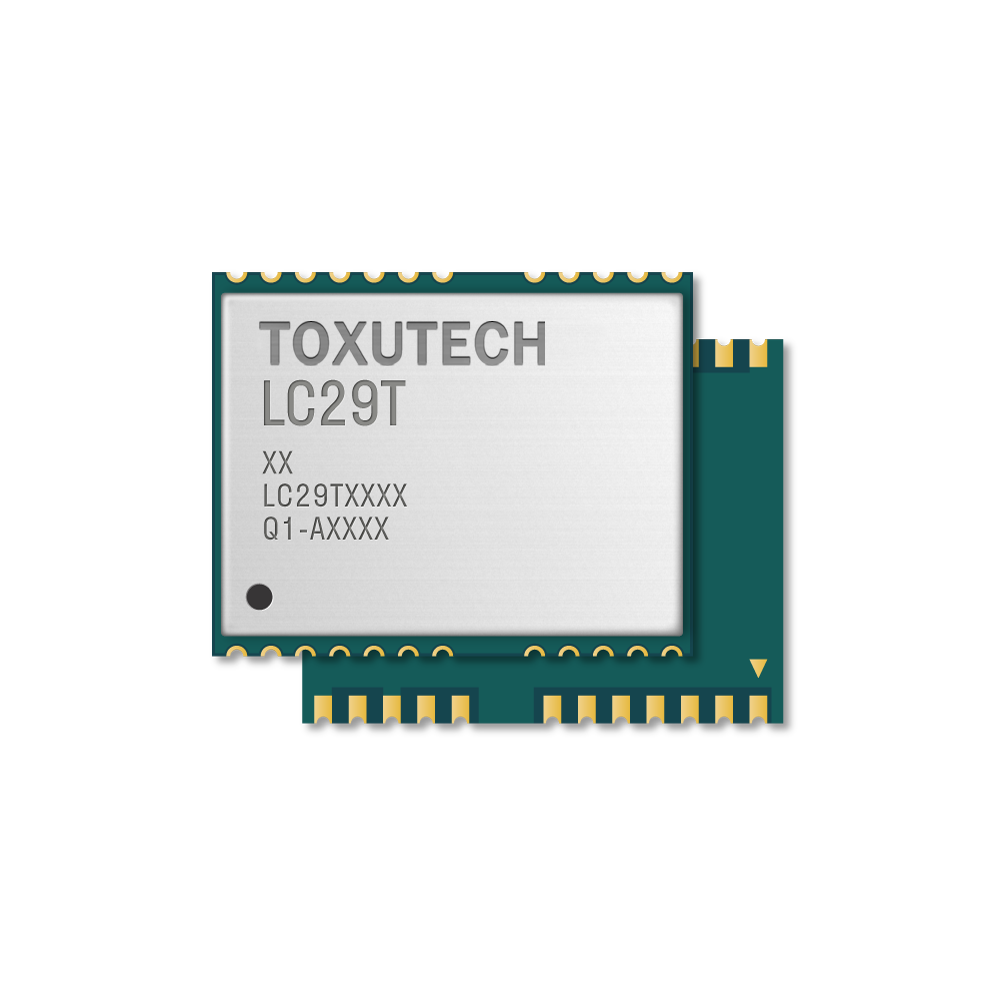

High-precision timing GNSS module

12.2 mm × 16.0 mm × 3.1 mm

Approx. 1.1 g

GPS, QZSS, GLONASS, BDS, and Galileo

Operating temperature of -40°C to +85°C

Ultra compact size: 12.2 mm × 16.0 mm × 3.1 mm

Multi-constellation GNSS engine for GPS, GLONASS, Galileo, BDS and QZSS

Integrated AGNSS function

Single-satellite timing

10 MHz frequency output

Auto position hold

Overview

LC29T is a multi-constellation GNSS module that delivers high-integrity precision timing in demanding applications worldwide. It simultaneously receives and tracks L1 signals from multiple (GPS, GLONASS, Galileo, BDS and QZSS) constellations. Its timing capabilities remain operational even if only one satellite is tracked. LC29T is designed to meet the most stringent timing synchronization requirements within global 4G/5G mobile networks. In addition, the module can generate a 10 MHz square wave for various applications.

By effectively minimizing timing errors of the primary source of cellular network synchronization, it empowers operators to maximize their network performance. Simultaneously the LC29T meets the strict synchronization and timing demands of the next-generation networks across various industry verticals such as 5G O-RAN, smart power grid, data centers, satellite communication system, LoRa base stations, calibration services and industrial automation applications. The module’s multi-constellation capability reduces timing errors to less than 13.6 ns under open-sky conditions. Additionally, it is designed and manufactured in accordance with the stringent Quality Management System, aligning with the IATF 16949:2016 Standard.
