Key features

Extremely compact size: 10.1 mm × 9.7 mm × 2.3 mm

Multi-GNSS engine for GPS, GLONASS, Galileo, BDS and QZSS

EASY™, an advanced AGPS technology without external memory

AlwaysLocate™, an intelligent algorithm for power saving

LOCUS, an embedded logger solution with no need for host and external flash

High sensitivity, -165 dBm @ Tracking, -148 dBm @ Acquisition

99 acquisition/33 tracking channels and 210 PRN channels

Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

Anti-Jamming, Multi-tone Active Interference Canceller

Balloon mode, for high altitude up to 80 km

PPS VS. NMEA can be used for time service

Overview

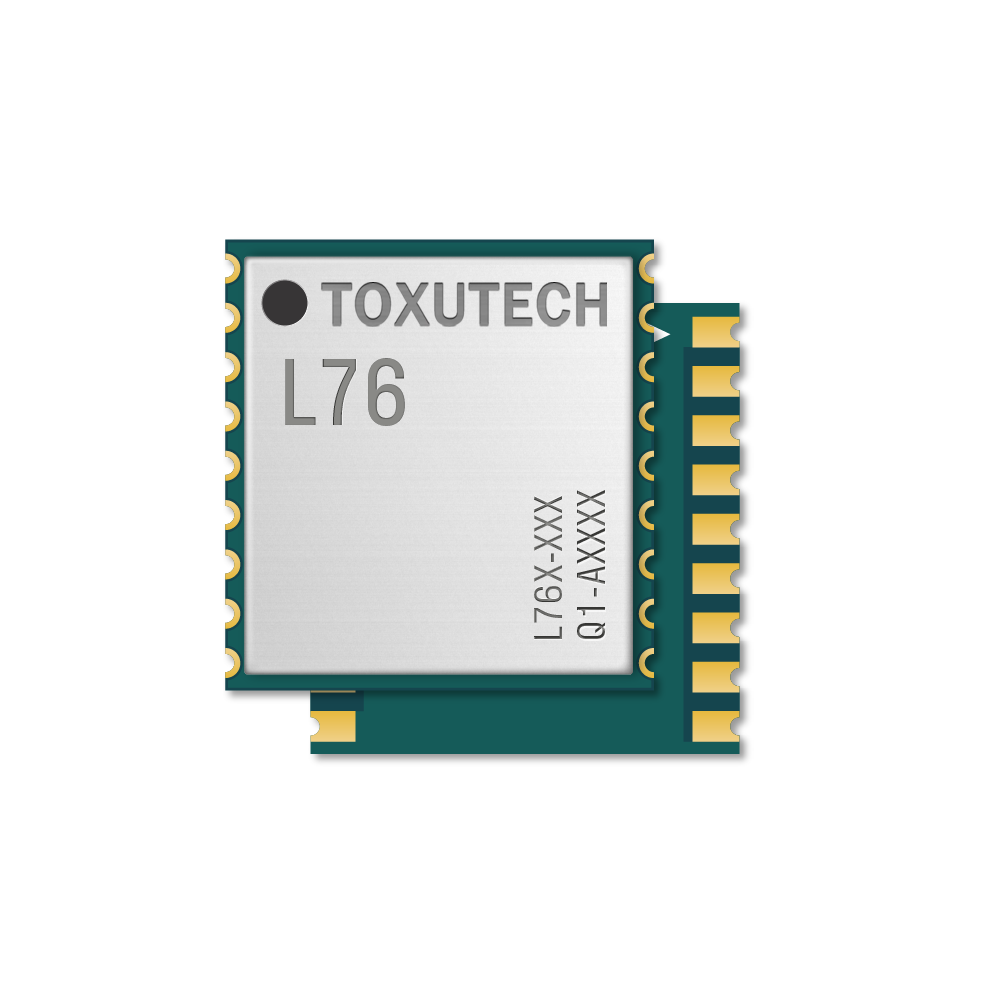

L76, the extremely compact GNSS module, is a concurrent GNSS receiver with multiple GNSS systems. It provides simultaneous GPS, GLONASS, Galileo, BDS and QZSS open service L1 reception capability. With 33 tracking channels, 99 acquisition channels, and 210 PRN channels, L76 can acquire and track any mix of multiple satellite signals.

Compared with using GPS only, enabling multiple GNSS systems generally increases the number of visible satellites, reduces the time to first fix and increases positioning accuracy, especially when driving in rough urban environments.

Combining advanced AGNSS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L76 achieves the highest performance and fully meets the industrial standard. Additional feature of embedded logger function called LOCUS allows L76 to log position information to internal flash memory at default intervals of 15 seconds and provide typically more than 16 hours log capacity without adding cost.

Its super performance makes L76 ideal for automotive, industrial PDA, consumer and industry applications. Extremely low power consumption makes it easier to be applied to power sensitive devices, especially portable applications.
