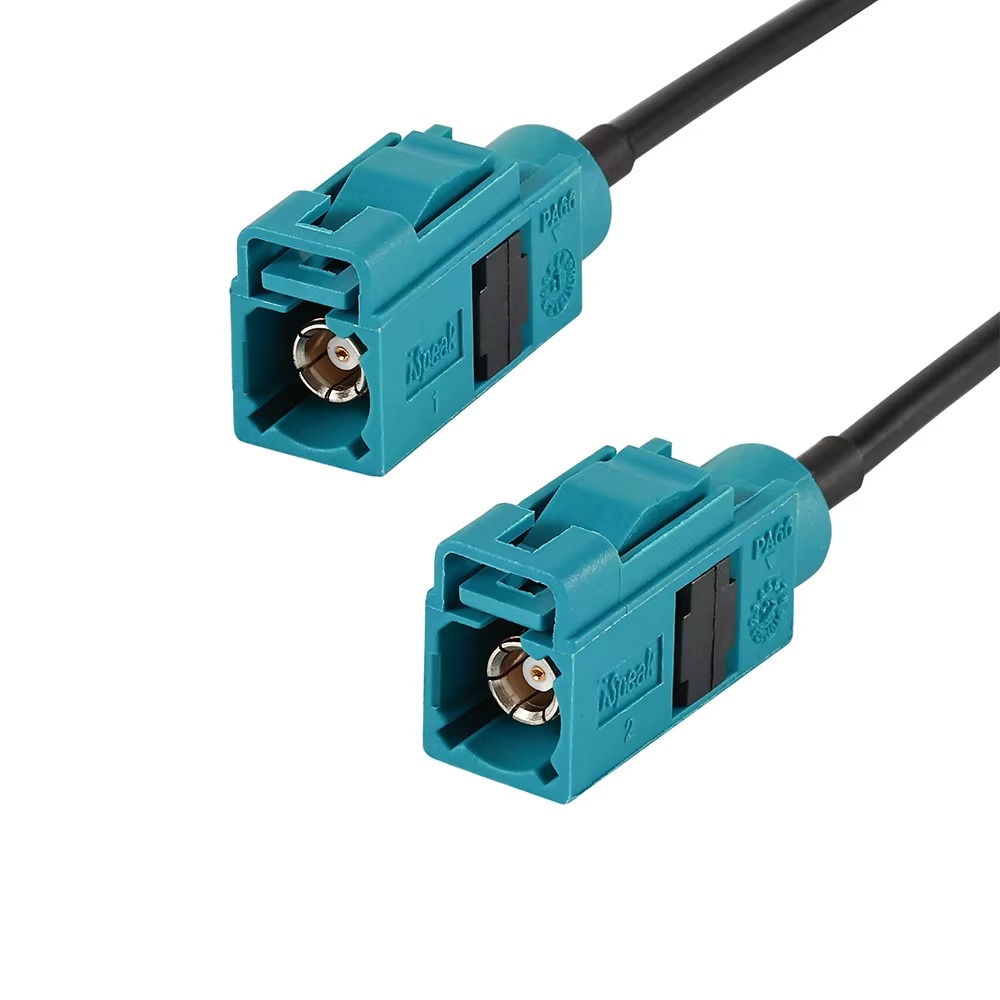

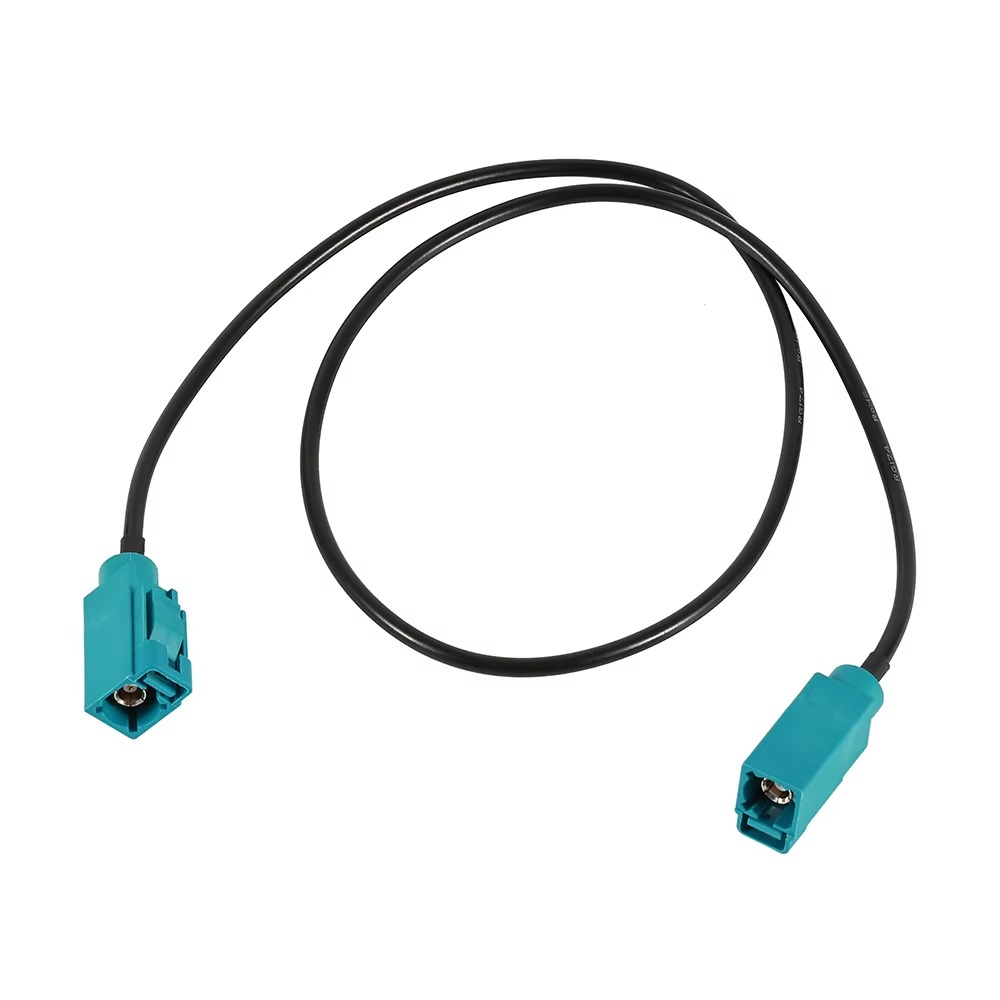

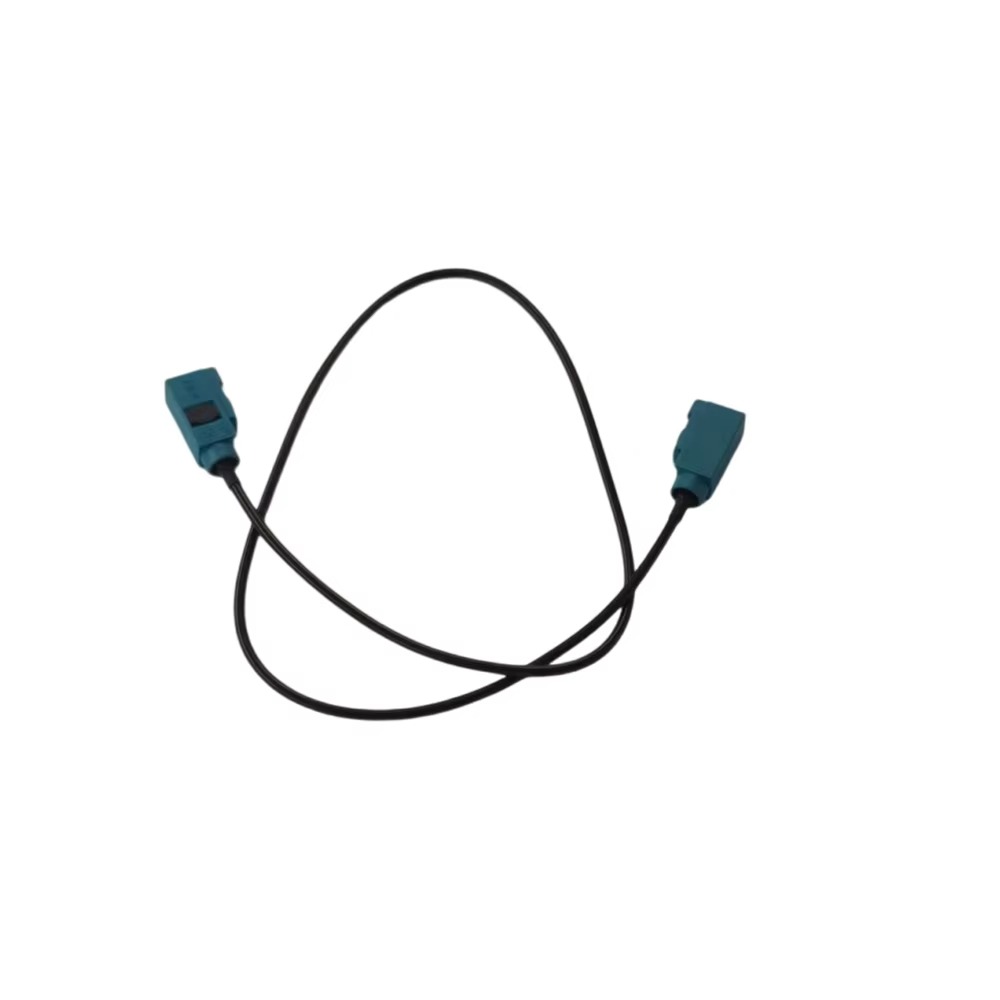

500mm Automotive Rf Coaxial RG174 Jumper Cable Assembly with FAKRA Female FAKRA Female SMB Car Connectors

Model Number: TX-C100

Type: Cat 1

Place of Origin: Guangdong, China

Brand Name: TOXU

Number of Conductors: 2

Impedance: 50 Ohm

Frequency Range: DC-3GHz

Durability: Mating cycles ≥500

Temperature Range: -55c~+125c

RoHS: Compliant

VSWR: ≤1.50@DC-3GHz

Dielectric Withstanding Voltage: ≥1000V RMS,50Hz,at sea level

Working Voltage: ≤335V RMS,50Hz,at sea level

Interface: ISO 20860-1

Insertion Loss: ≤1.3dB@ 2.5GHz
