Model Number:KC.IG.00121

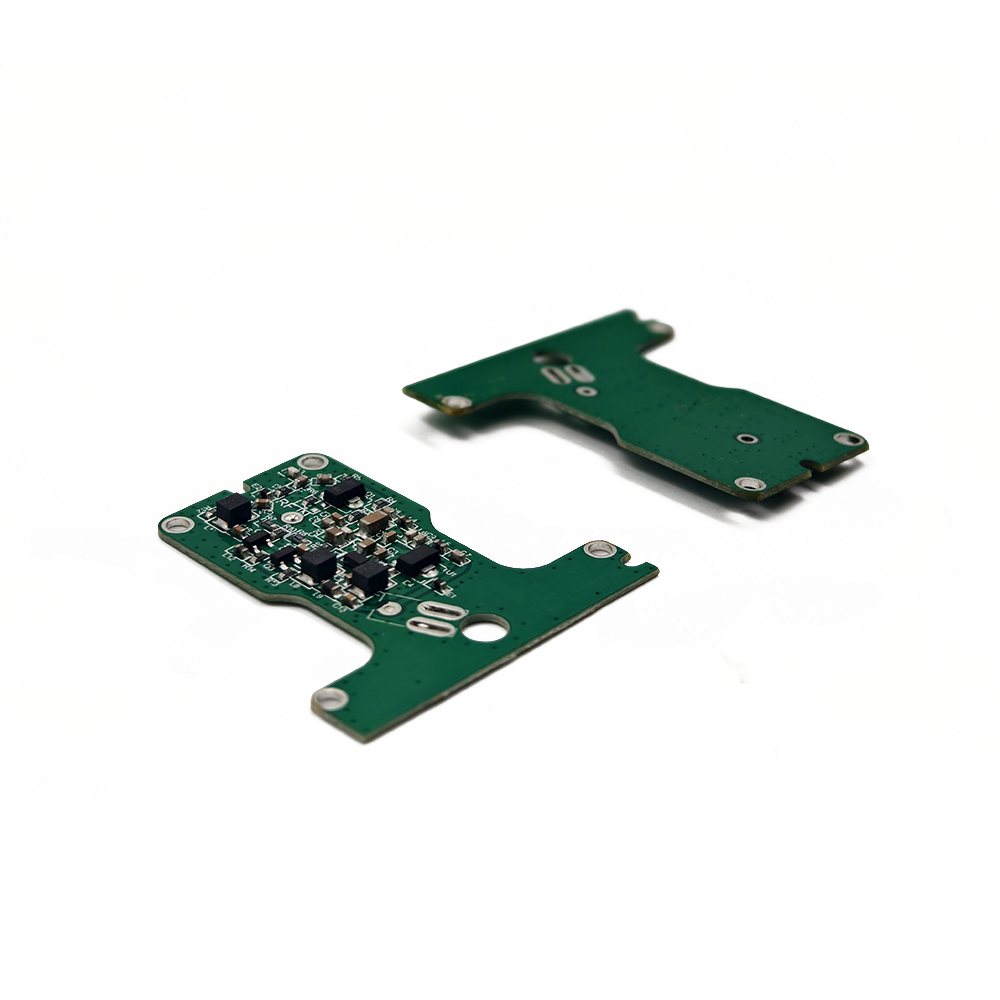

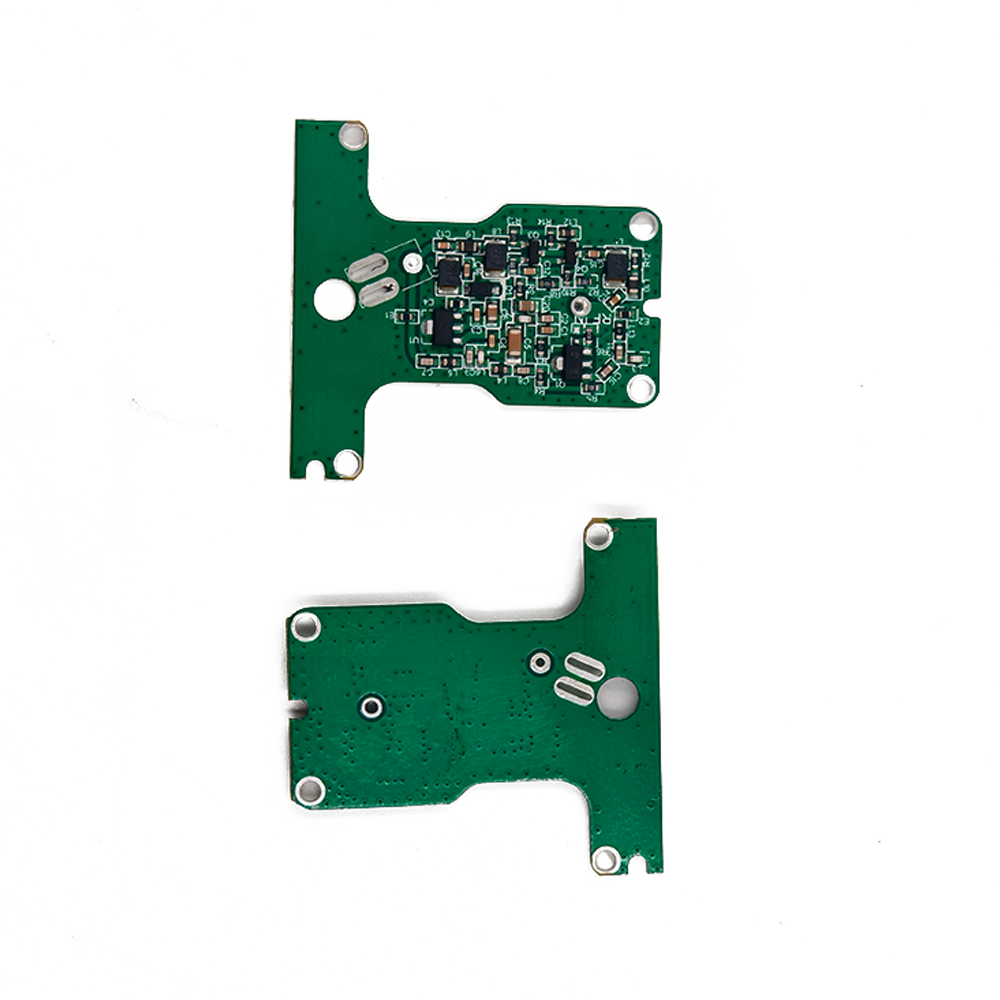

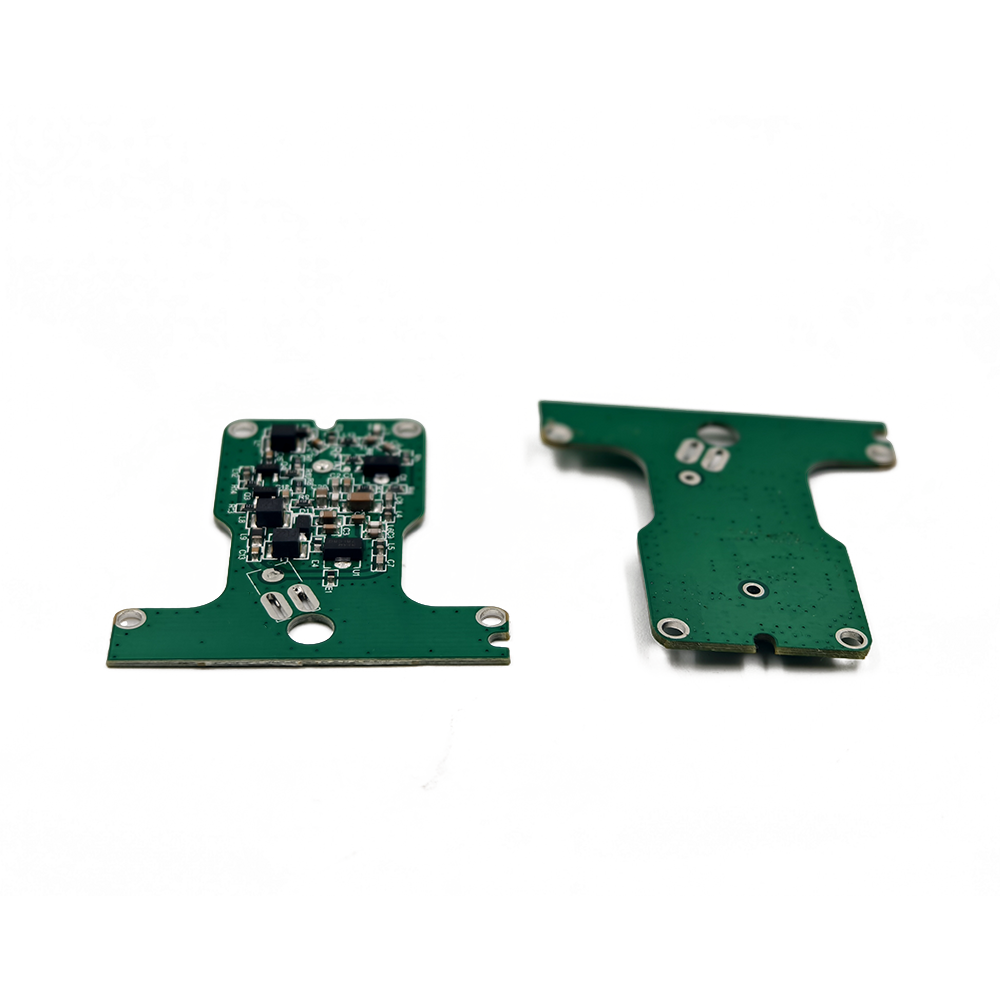

Type:AM/FM PCB Antenna Module

Place of Origin:Guangdong, China

Brand Name:TOXU

Supplier Type:OEM/ODM

Copper Thickness:1oz

Functional Application:AM/FM Signal Reception for Automotive, Audio

Operating System:Not Applicable

RAM:Not Applicable

Application:Automotive, Radio Receiver, Audio System

PCB Layers:2 Layers

Substrate Material:FR4

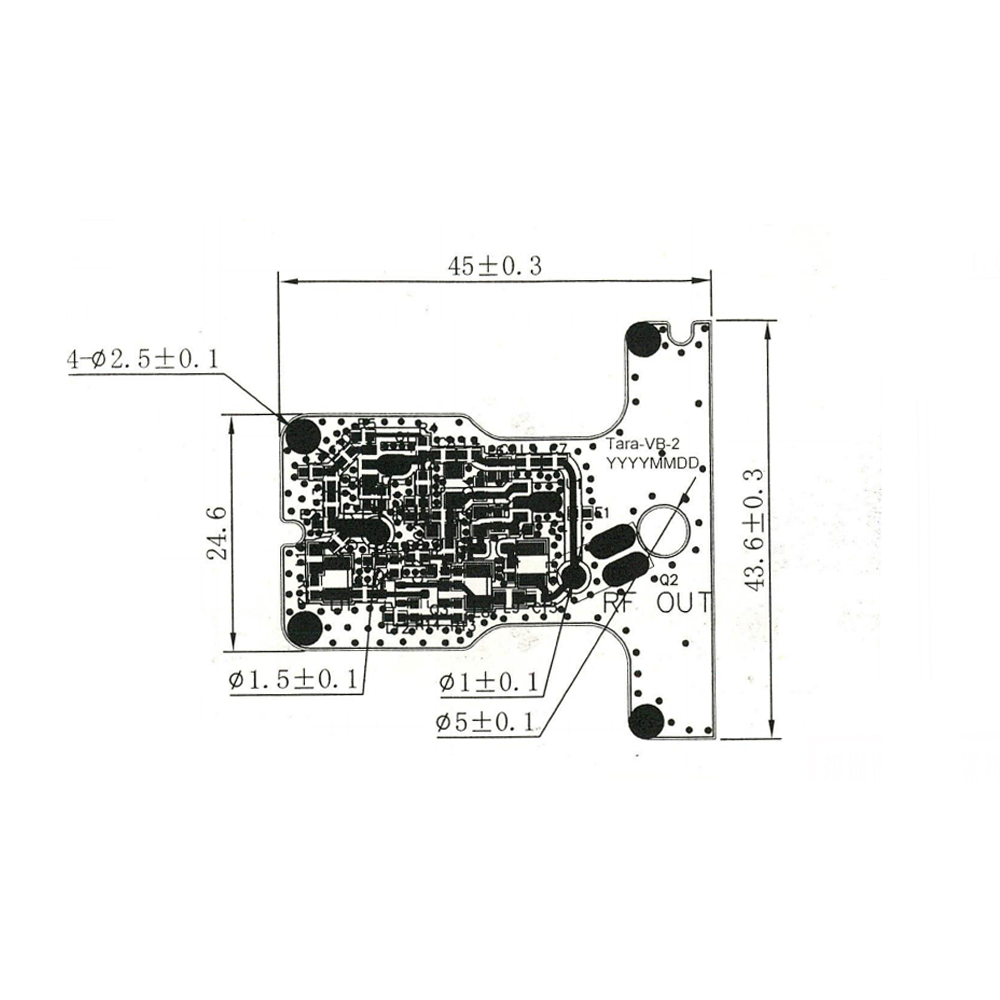

Dimensions:Customizable / Refer to Drawing

Frequency Range:AM 520-1710khz FM 87.5-108 MHz

Connector Type:IPX Female / Wire Lead (custom available)

Installation Method:PCB Mount / Tape Backing

Impedance:50 Ohm

Operating Temperature:-40℃ to +85℃

RoHS Compliant:Yes

Customization Supported:Yes (Length / Connector / Housing / Cable / PCB layout)
