PRODUCTS DESCRIPTION | |

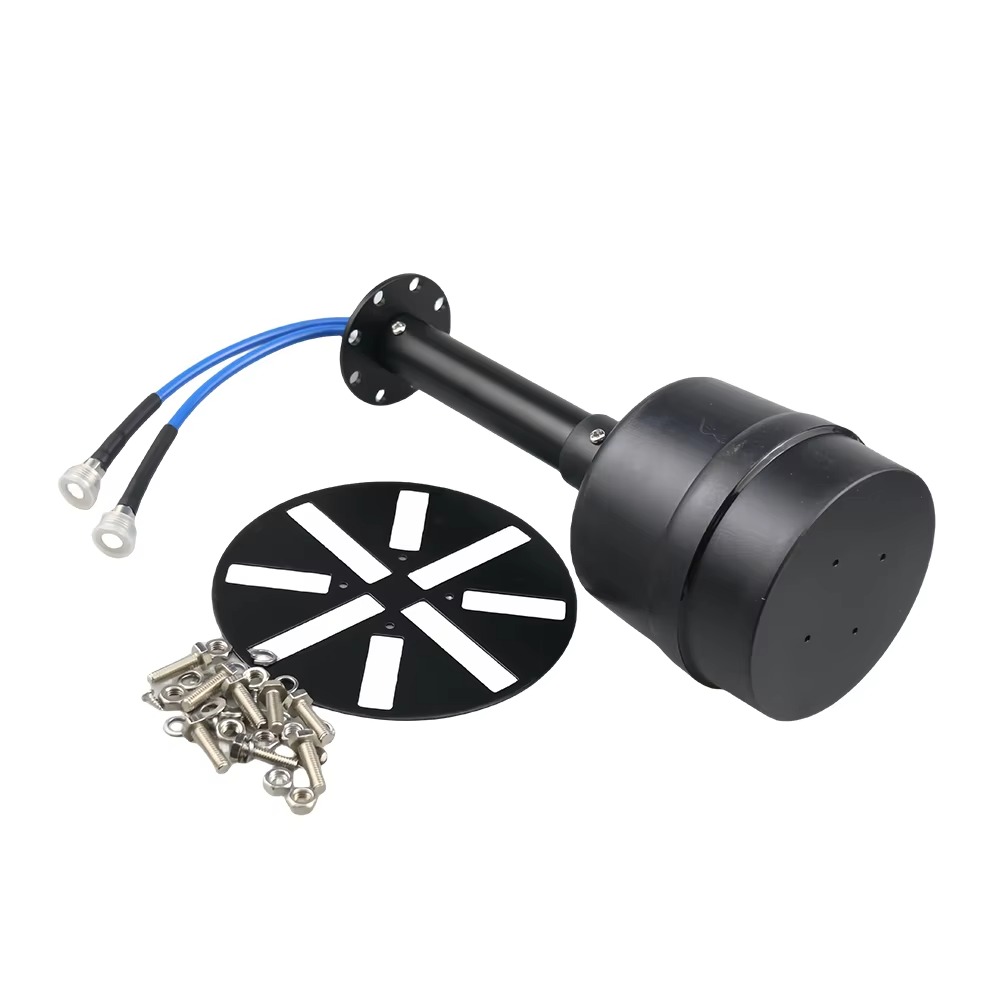

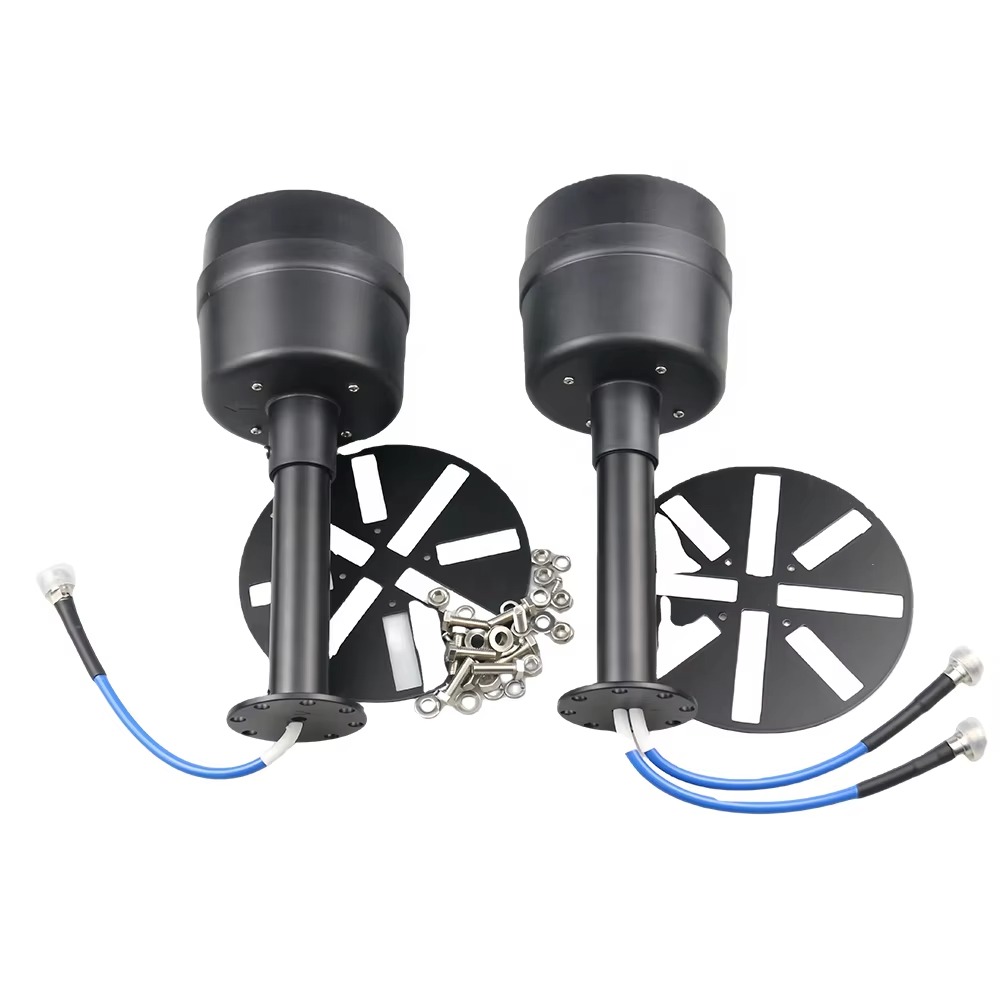

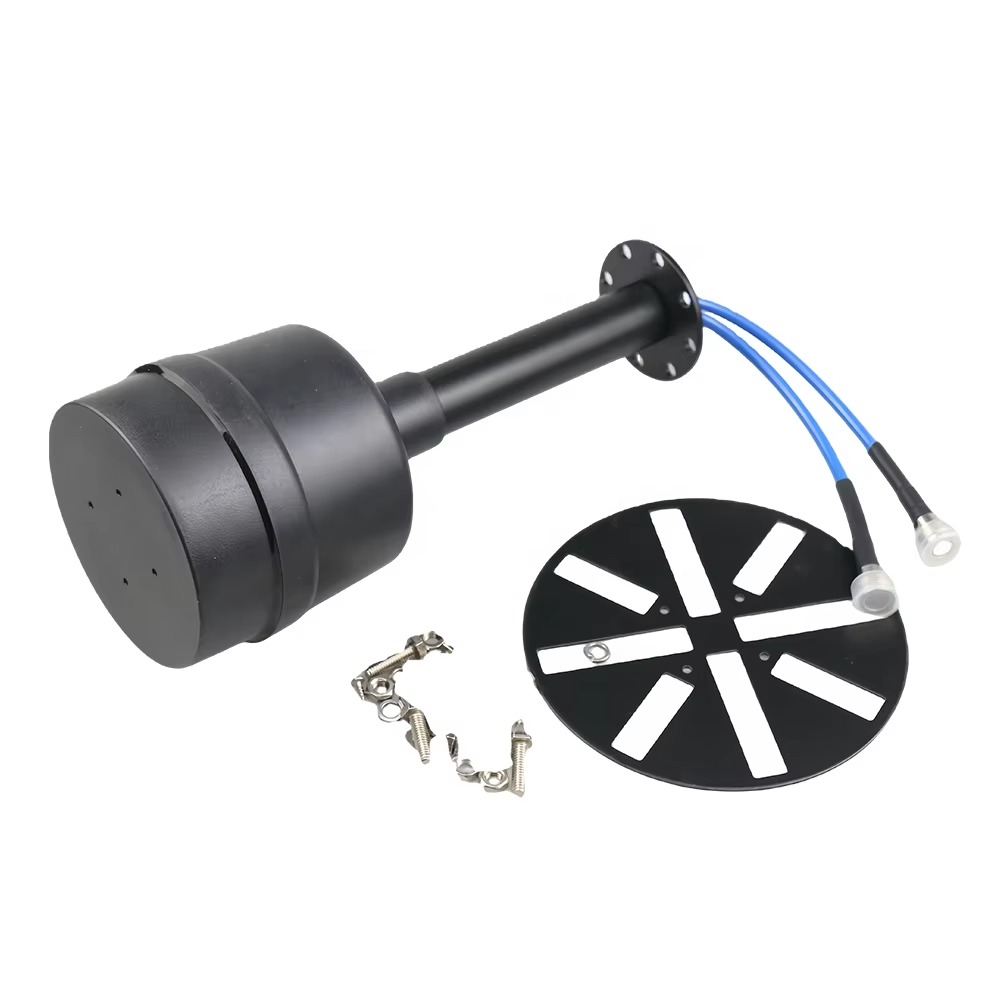

Name | Feeder |
Model NO. | YD638242 |
Electrical Specifications | |
Frequency Range–MHz | 698-4200MHz |
Input Impedance -Ω | 50Ω |
VSWR | ≤1.5 |
Gain-dBi | 2*30DBI |
Radiation | Directional |
Isolation | ≤30dB |
Horizontal Beam width -° | 7° |
Vertical Beam width -° | 8° |
Polarization | Horizontal and Vertical |
Maximum Power -W | 100W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Antenna Cover Material | Aluminum |
Connector Type | 2*N female |
Cable Type | 2*RG142 |
Cable Length | 2*30CM |
Working Temperature | -40℃~+65℃ |
Size | 142*90*141mm |
Antenna Weight | 0.3kg |
Mounting kits | L bracket |
Color | Black |
Rated Wind Velocity | 210km/h |
Package | 45*23*34cm/10pcs/4.8kg |
